UPS Inverter Silicone Electrical Cable 16AWG 0.08mm Tin Plated Copper 600V
16AWG 1m-20m Color Super Soft Silicone Cable High Temperature Resistant Tin-plated Copper Wire for Battery,Inverter
- Welcome to the online store of our factory,
- We specialize in producing wire and cable and related products!
- We support product customization!!
- We provide free sample service!!
- Please consult us if you have any questions!!!
- The more you order,the cheaper the unit price will be!!!!
Ordering notes:

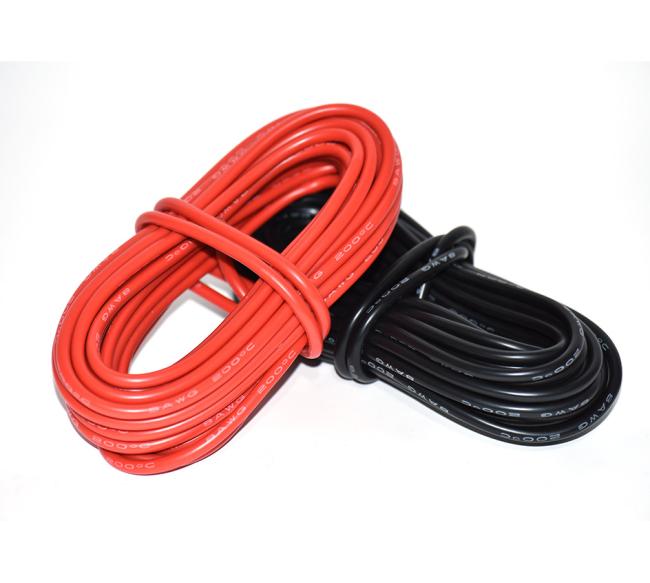

When choosing the "red and black a pair", We will deliver you two cables of your select length (1pcs Red +1pcs Black).
Repeated purchase of the same kind of cable, the length is added up, no cutting. Specifications are increasing, more color options will be updated soon.
Soft silicone cable
INTRODUCTION
|
TECHNICAL PARAMETERS
| Size No. | Specification | Wire Diameter | Cross-sectional area | Outer diameter |
Safe current | Maximum current | Rated voltage |
Length/whole roll |
| NO./OD | (MM) | (MM²) | (MM) | (A) | (A) | (V) | (M) | |
| 16 AWG | 252*0.08TS | 1.47 | 1.32 | 3.00 | 10 | 12 | 600 | 200 |
| 14 AWG | 400*0.08TS | 1.85 | 2.08 | 3.50 | 16 | 19 | 600 | 200 |
| 12 AWG | 680*0.08TS | 2.41 | 3.33 | 4.50 | 28 | 33 | 600 | 100 |
| 10 AWG | 1050*0.08TS | 2.92 | 5.26 | 5.40 | 42 | 50 | 600 | 100 |
| 8 AWG | 1650*0.08TS | 3.75 | 8.37 | 6.00 | 67 | 80 | 600 | 100 |
| 6 AWG | 3200*0.08TS | 5.23 | 16.0 | 8.50 | 120 | 144 | 600 | 100 |
| 4 AWG | 5000*0.08TS | 6.53 | 25.0 | 10.50 | 200 | 240 | 600 | 50 |
Lead time: 3-7 days
Shipping methods: DHL, EMS, UPS, TNT, FEDEX, SF. Sea shipping, ect
As a leading manufacturer of Cable Harness Assemblies, Coaxial cables , Fiber optical cables, Diesel Generator cables, Flat Ribbon Cable, Eleteck Co. provides Micro Match Cable Assembly, Flat Cable Assembly, IDC Flat Cable Assembly, 2.0mm IDC Cable, Jumper Flat Cable, IDC Flat Ribbon Cable with superior quality.
Custom Service:
We are specialized in customizing wire harness and cable assembly for over 10 years, welcome OEM items.
