10AWG Battery Terminal Cables 20cm 30cm 40cm Super Soft Silicone With Lug
10AWG 20-100CM Battery Connection Cable Super Soft Silicone Wire with Lug UPS Battery Serie Parallel Connect Car Inverter Wire
- Welcome to the online store of our factory,
- We specialize in producing wire and cable and related products!
- We support product customization!!
- We provide free sample service!!
- Please consult us if you have any questions!!!
- The more you order,the cheaper the unit price will be!!!!
Ordering notes:
When choosing the "red and black a pair", We will deliver you two cables of your select length (1pcs Red +1pcs Black).
The photo shows the actual 6AWG thickness.10AWG cable is relatively thin, unless you are really familiar with your actual needs, it is generally not recommended to buy.

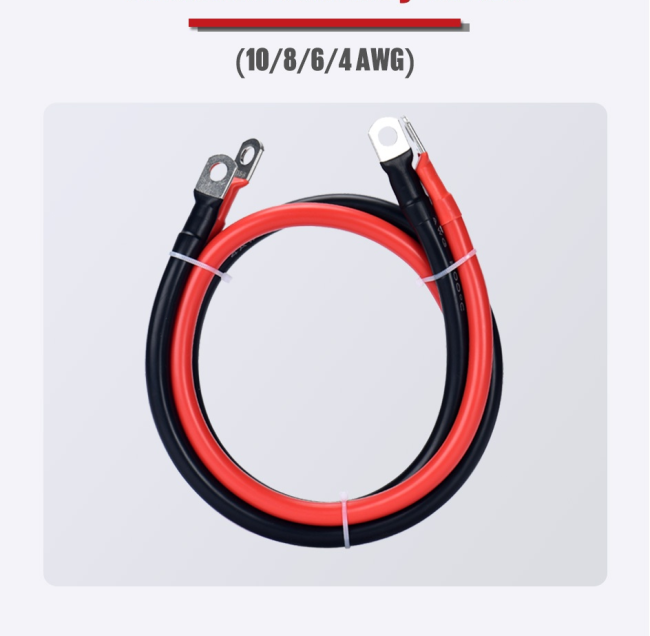

Silicone battery cable
INTRODUCTION
| Wire Size | 5.32mm²(10 AWG) |
| Color | Black Red |
| Rated voltage | 600V |
| lugs material | Tinned copper |
| installation method | Crimping |
| Conductor material | Stranded tinned copper |
| Insulation material | high quality silicone |
| Temperature range | -60Deg.C~+200Deg.C |
| Length | 20 30 40 50 60 80 100cm |
| Aperture | 8mm(The default is M8 Terminal, you need M6/M10, please note) |
| Lug Installation Method | Crimping and Soldering |
| Use Range | Used for connection of car battery, battery, inverter, etc. |
TECHNICAL PARAMETERS
|
Wire Size |
Cross-section |
Outer |
Safe Current |
Max Current |
Lug hole |
|
(mm²) |
(mm) |
(A) |
(A) |
(mm) |
|
|
10 AWG |
5.26 |
5.40 |
42 |
50 |
M8 |
|
8 AWG |
8.37 |
6.00 |
67 |
80 |
M8 |
|
6 AWG |
16.0 |
8.50 |
120 |
144 |
M8 |
|
4 AWG |
25.0 |
10.5 |
200 |
240 |
M8 |
|
Section 35mm² |
35.0 |
12.8 |
280 |
336 |
M8 |
|
Section 50mm² |
50.0 |
14.0 |
400 |
480 |
M8 |
ADVANTAGES
High quality tinned pure copper
Using high-purity tinned copper core, stronger oxidation resistance and stable conductivity
Soft and resistant to bending
High temperature resistant silicone insulation, high strength and toughness, easy to bend

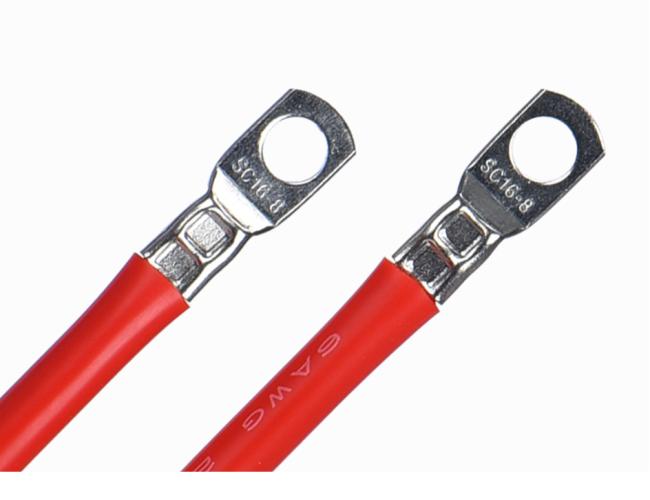

Double crimping process
Use pure copper tinned lug,Bright and clean, anti-oxidant.
Double crimping process, reliable connection
