Automatic Core Cutting Machine Core Leg Making Equipment Silicon Steel Strip Cutter

Description of automatic core cutting machine DHJ300

Automatic core cutting machine DHJ300, also known as reactor core cut to length line, is mainly used to cut reactor core material, such as electric steel or other alloys, to make reactor core. This process ensures that the components of the reactor core, such as lamination, are accurately sized for assembly. Using specialized cutting tools or machinery, the reactor core materials are cut to specific lengths according to the design requirements.

Quick details of automatic core cutting machine DHJ300

• Sheet thickness 0.23 ~ 0.35mm
• Sheet width 30 ~ 300mm
• Cutting length 10 ~ 9999mm
• Feeding speed 180m/min
• Motor power 8kw
• 12 months warranty

Main parameters of automatic core cutting machine DHJ300

Typical standard specifications of automatic core cutting machine DHJ300 are shown below, however, the core cutting machine can also be manufactured as requested.

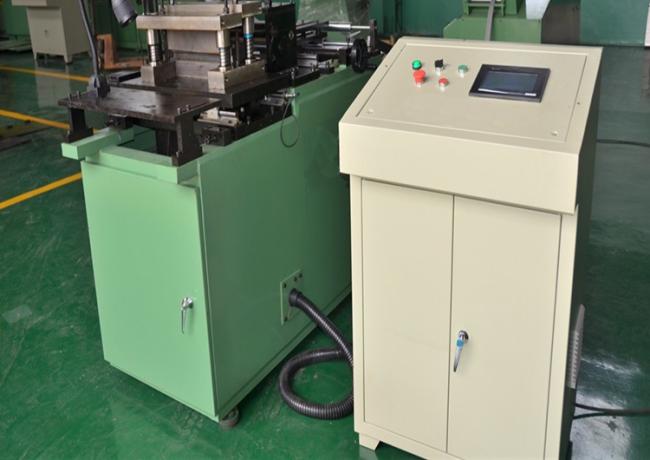

Fig 1: Automatic core cutting machine DHJ300's full view

Fig 2: Automatic core cutting machine DHJ300's punching unit
