Copper Aluminium Transformer Foil Winding Machine With Two Decoilers
Copper And Aluminium Foil Winder Transformer Foil Winding Machine With Two Decoilers

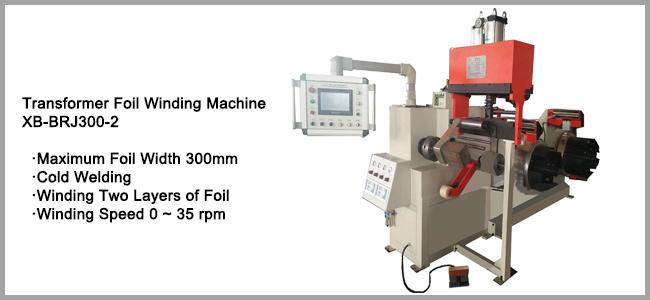

Description of transformer foil winding machine BRJ300-2
Automatic transformer foil winding machine BRJ300-2 is a dedicated foil coil making equipment. The coil wound by the foil winding machine can be used in transformers and other similar products. Transformer foil winding machine, i.e. Máquina de bobinado de láminas de aluminio, is provided with cold press welding unit for welding foil and bus bar together. With cold welding unit, the transformer foil winding machine can weld not only aluminium foil and aluminium bar together, copper foil and copper bar together, but also aluminium foil and copper bar. Servo motor is used for winding foil and insulation paper, which guarantees the winding precision. With user-friendly interface, it is very easy to operate the machine.
Main components of transformer foil winding machine BRJ300-2
1. Main frame
2. Foil decoiler
3. Pressing roller
4. Winding unit
5. Insulation decoiler
6. Rectifying system
7. Cold press welding unit
8. Pneumatic unit
9. PLC control system
Technical parameters of transformer foil winding machine BRJ300-2
Typical standard specifications of BRJ300-2 are shown below, however the machine can also be manufactured as requested.
| Maximum foil width: | 300mm |
| Max. Axial Length ( incl. lead wire ): | 450mm |
| Finished coil Shape: | Circle, Oval and Rectangle etc. |
| Conductor Material: | Copper or aluminum strip |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Ø500mm |
| Foil Material OD.: | ≤Ø1000mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 350mm |
| Foil Decoiler Expanding Range: | Ø 420 ~ 520mm |
| Maximum Coil Weight: | 1000kg |
| Rectifying Mode: | Photoelectric sensing |
| Rectifying Deviation Precision: | ±0.5mm |
| Insulation Paper Decoiler Number: | 1set |
| Insulation Paper Coil OD.: | ≤Ø 400mm |
| Insulation Paper Coil ID.: | Ø76mm |
| Insulation Decoiler Width | 350mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~ 35 RPM |
| Winding Power of Servo Motor: | 5.5kw |
| Cold Welding Device: | 1 set |
| Programming Type: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 - 9999.9 |

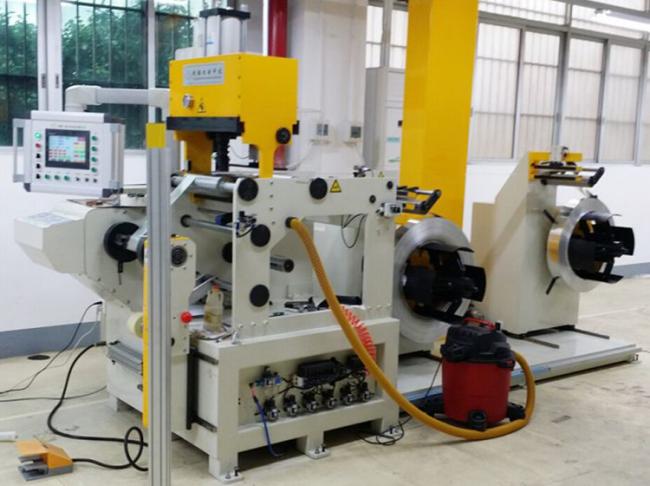

Fig 1: Transformer foil winding machine BRJ300-2's full view

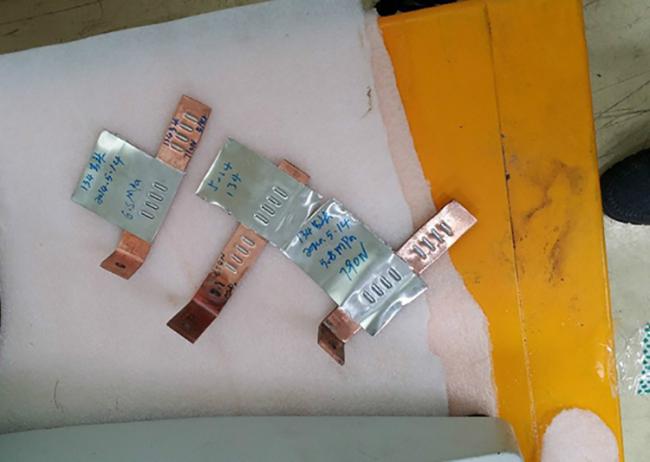

Fig 2: Transformer foil winding macine BRJ300-2's welding effect
