Silicon Steel Cutter Making Reactor Core Equipment Automatic Core Cutting Machine

Description of automatic core cutting machine DHJ400

Automatic core cutting machine DHJ400 is a professional making equipment to cut silicon steel strip for making reactor cores. The automatic core cutting machine can be used to cut the silicon steel with maximum width 400mm. The automatic core cutting machine can punch holes on the strip if needing. The automatic core cutting machine is provided with servo motor, which is used to drive cutting and punching actions and guarantees the accuracy of the actions. The cutter blade of the automatic core cutting machine adopts carbide cutter knife with HRC88 ~ 90 hardness, and can cut the silicon steel 5 million times without regrinding the blade. With a touch screen, it is very easy to operate the automatic core cutting machine.

Quick details of automatic core cutting machine DHJ400

• Cutting sheet thickness 0.23 ~ 0.35mm
• Cutting sheet width 40 ~ 400mm
• Cutting sheet length 10 ~ 9999mm
• Feeding sheet speed 180m/min
• Power 12.5kw
• One year warranty

Main components of automatic core cutting machine DHJ400

1. Decoiler for placing steel material

2. Frame

3. Feeding sheet unit

4. Hole punching device

5. Shearing unit

6. Stacking table

7. Control system

Main parameters of automatic core cutting machine DHJ400

Typical standard specifications of automatic core cutting machine DHJ400 are shown below, however, the core cutting machine can also be manufactured as requested.

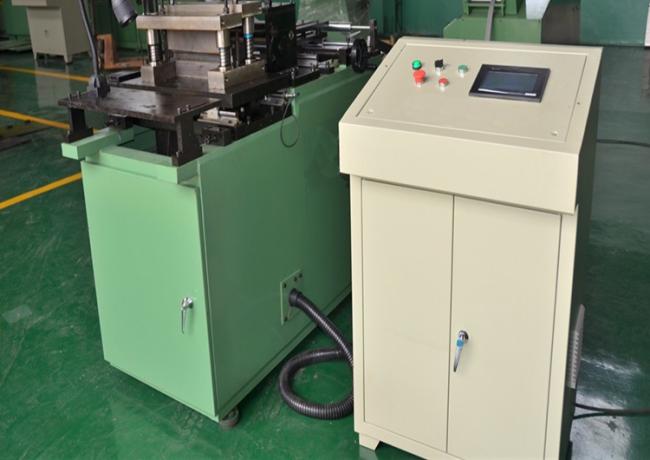

Fig 1: Automatic core cutting machine DHJ400's full view

Fig 2: Automatic core cutting machine DHJ400's punching unit
