Automatic Conductor Wire And Copper Foil Winding Machine High Effective
High Effective Automatic Conductor Wire and Copper Foil Winding Machine
Description of copper foil winding machine BRJ400-2-2
Copper foil winding machine BRJ400-2 can be used to wind both foil and wire. The copper foil winding machine can be used to wind one or two layers of foil and one or two layers of insulation paper. The machine can be also used to wind wire with maximum winding width 400mm. The machine is provided with two sets of operating interfaces, one is for winding foil coil, another is for winding wire coil. The two sets of interfaces can be switched easily through the touch screen.
Technical Parameter of copper foil winding machine BRJ400-2-2
Typical standard specifications of copper foil winding machine BRJ400-2-2 are shown below, however the foil winding machine can also be manufactured as requested.
| ITEM | BRJ400-2-2 |
| Process Foil Coil Parameter | |
| Max foil width: | 400mm |
| Max Rotating Diameter: | Ø600mm |
| Coil shape: | oval, round, rectangle |
| Foil Material Parameter | |
| Conductor material: | Copper / Aluminum foil |
| Foil strip width: | 400mm |
| Al foil thickness: | 0.3～3.0 mm |
| Cu foil thickness: | 0.2～2.0 mm |
| Foil Roll ID.: | 500mm |
| Maximum Foil Roll OD.: | 1000mm |
| Foil decoiler number: | 2 sets |
| Foil decoiler length: | 450mm |
| Foil decoiler expansion range: | Ø420~520mm (suitable for placing foil material with ID 500mm) |
| Max foil decoiler capacity: | 750kg |
| Alignment Device | |
| Alignment method: | Photoelectric automatic correction |
| Alignment precision: | ±0.5mm |
| Winding Device | |
| Winding speed: | 0~35rpm |
| Winding power: | 8KW |
| Speed control: | Variable-frequency stepless speed control |
| Core axis holder: | Two chucks |
| Center height: | 900mm |
| Insulation Paper Decoiler | |
| Insulation axis: | 2 sets |
| Maximum layer insulation roll OD: | Ø400mm |
| Layer insulation roll ID: | Ø76mm |
| Lay insulation width: | ≤450mm |
| Decoiling axis: | pneumatic |
| PLC Control System | |
| Countering range: | 0.0~9999.9 |
| Countering precision: | 0.1 circle |
| Function: | Segmented input, reversible, power failure memory, etc. |
| For Wire coil winding | |
| Max. wound coil OD.: | 600mm |
| Maximum Wire Winding Width: | 400mm |
| Round Wire Size: |
Ø 0.3 ~ 5.0mm |
| Maximum Flat Wire Size: | 5x12mm |
| Maximum Winding Speed: | 100rpm |

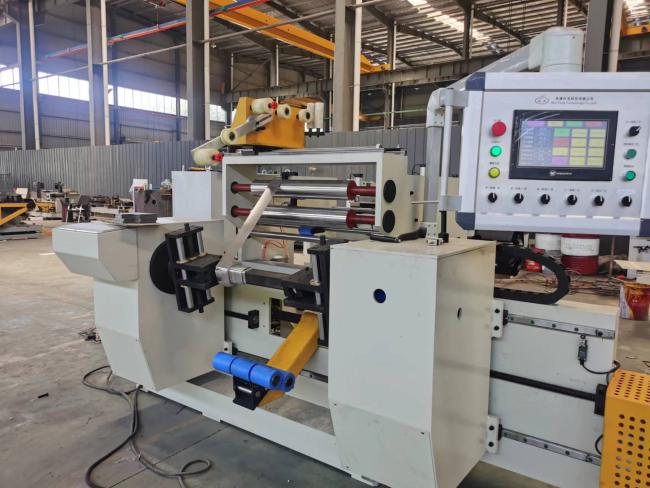

Fig 1: Copper foil winding machine BRJ400-2-2's front view
Fig 2: Copper foil winding machine BRJ400-2-2's foil decoiler
