310S Cold Rolled Stainless Steel Sheet 2B Finish 16 Gauge Thickness SS Plate
310S Cold Rolled Stainless Steel Sheet 2B Finish 16 Gauge Thickness SS Plate
310S stainless steel plate belongs to 25CR-20NI high alloy stainless steel, commonly known as 2520 stainless steel, high temperature oxidation resistance is excellent, suitable for the production of various furnace components, the highest temperature 1200℃, continuous use temperature 1150℃. Application: Furnace materials, automotive purification equipment materials.
Product introduction:
| Commodity | 310S Cold Rolled Stainless Steel Sheet 2B Finish 16 Gauge Thickness SS Plate |
| Grade | 310S |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.3-3mm |
| Width |
1000mm,1219mm,1500mm as per customers’ requirements |
| Length | 2000, 2438 ,3000,6000mm or as per customers’ requirements |
| Surface | 2B |
| Standard |
JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
combining excellent high temperature properties with good ductility and weldability |

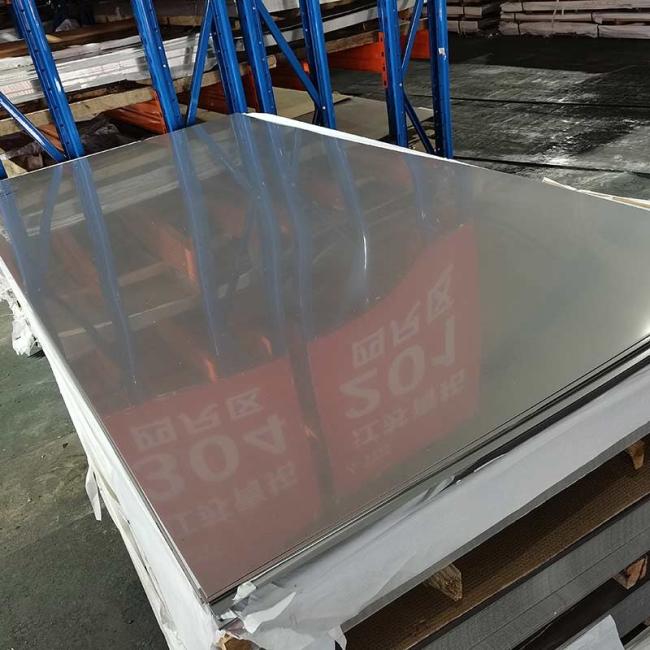

Product Display :
Chemical Composition:
| Grade | Chemical Composition (WT %) | ||||||
| C | Mn | P | S | Si | Cr | Ni | |
| 310S | ≤ 0.08 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.50 | 24.0 to 26.0 | 19.0 to 22.0 |
Physical Property:
| Physical Property | |||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | / | Hardness(HV/HB) | Density |
| ≥520MPa | ≥205MPa | ≥40% | / | 40 to 200HV | 7.98g/cm3 |
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Advantage of 310S :
310S is austenitic chromium-nickel stainless steel with good oxidation resistance, corrosion resistance, because
of the higher percentage of chromium and nickel, 310S has much better creep strength, can continue to operate
at high temperatures, has good high temperature resistance.

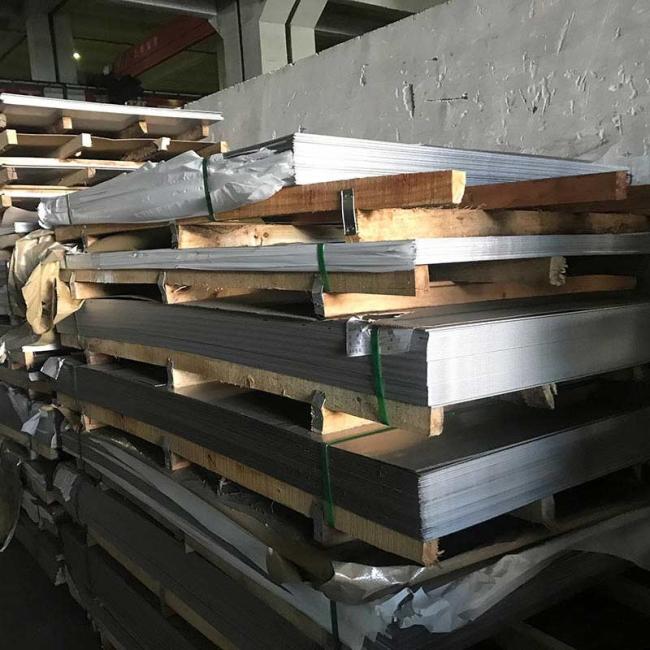

Packing:
310S stainless steel cold rolled sheet 4x8 hairline finish 18 gauge 2types:
l Standard packing
l Fine packing
