A240 2205 Duplex Stainless Steel Sheet Hot Rolled HRC A240M Stainless Steel Sheet
ASTM A240/A240M Duplex Stainless Steel 2205 Hot Rolled Sheet Metal
The yield strength of 2205 duplex stainless steel is more than twice that of ordinary austenitic stainless steel. This feature makes the designer reduce the weight when designing products, making this alloy more cost-effective than 316317l. This alloy is particularly suitable for the temperature range of - 50 ° f / + 600 ° F. For applications beyond this temperature range, this alloy can also be considered, but there are some limitations, especially for welded structures.
Product introduction:
| Commodity | ASTM A240/A240M Duplex Stainless Steel 2205 Hot Rolled Sheet Metal |
| Grade | Duplex 2205 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness |
3-100 mm |
| Width | 1500 mm |
| Length | 3000 mm |
| Surface | NO.1 2D NO.3 |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
Hot rolling can greatly reduce energy consumption and costs. The metal plastic deformation is high during hot rolling, and the deformation resistance is low, which reduces the energy consumption of metal deformation. Hot rolling can improve the processing performance of metals and alloys. |
Gauge and Inch:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
| 23 | 0.0281 | 0.71374 | 0.0269 | 0.0306 |
| 24 | 0.025 | 0.635 | 0.0239 | 0.0276 |
| 25 | 0.0219 | 0.55626 | 0.0209 | 0.0247 |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.04 | ≤0.03 | 4.5～6.5 | 21.0～24.0 | 2.5～3.5 | 0.08～0.2 |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| 2205 | ≥620 | ≥450 | ≥25 |
Application:
1·Pressure vessel, high pressure storage tank, high pressure pipeline, heat exchanger (chemical processing industry).
2·Oil and gas pipeline, heat exchanger and pipe fittings.
3·Sewage treatment system.
4·Pulp and paper industry classifier, bleaching equipment, storage and treatment system.
5·Rotary shaft, press roller, blade, impeller, etc. in high-strength corrosion-resistant environment.
6·Cargo box of a ship or truck
7·Food processing equipment
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Packing:
ASTM A240/A240M Duplex Stainless Steel 2205 Hot Rolled Sheet Metal Packing 2 types:
l Standard packing
l Fine packing
Factory and Machine Equipment:
We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine

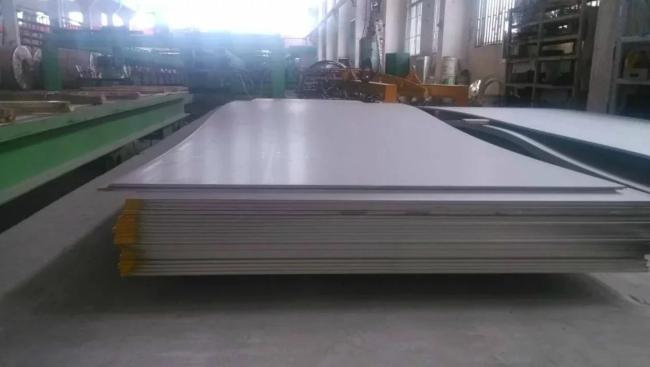

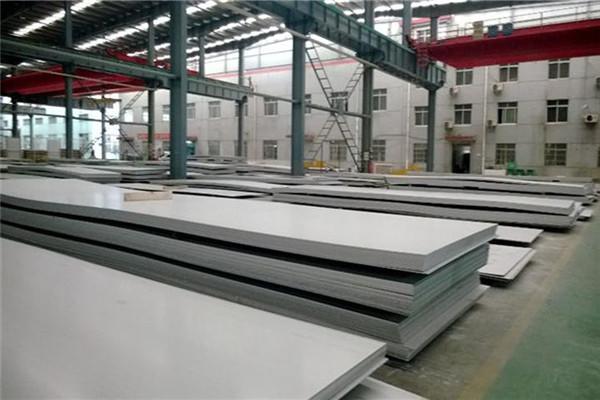

ASTM A240/A240M Duplex Stainless Steel 2205 Hot Rolled Sheet Metal Diaplay:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
