Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI
Ral1013 PPGL Z120 G40 Precoated Zinc Coating Galvanized Steel Coil
PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate. The term is an extension of GI which is a traditional abbreviation for Galvanized Iron.
Product Introduction:
| Commodity | Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI |
| Grade | SPGC ,SPCC, DC51D+AZ |
| Brand | SHOUGANG; ANSTEEL; MASTEEL; BXSTEEL |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.45 MM |
| Width | 1250 MM |
| Length | 2000MM |
| Surface | Prepainted |
| Standard | JIS,AISI,ASTM,GB,DIN, BS EN, AS |
| Delivery time | About 25 or based on the sales contract |
| MOQ | 25 Ton |
|
|
Advantages:
- PPGI Roofing Sheet production process is less harmful to the environment, and can be recycled, greatly reducing the pollution to the environment, and light weight, can save load-bearing Structure materials, reduce the cost.

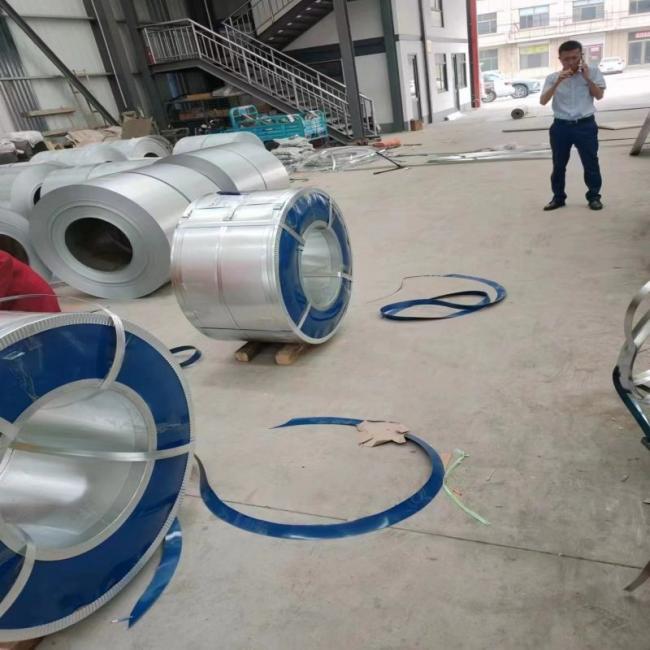

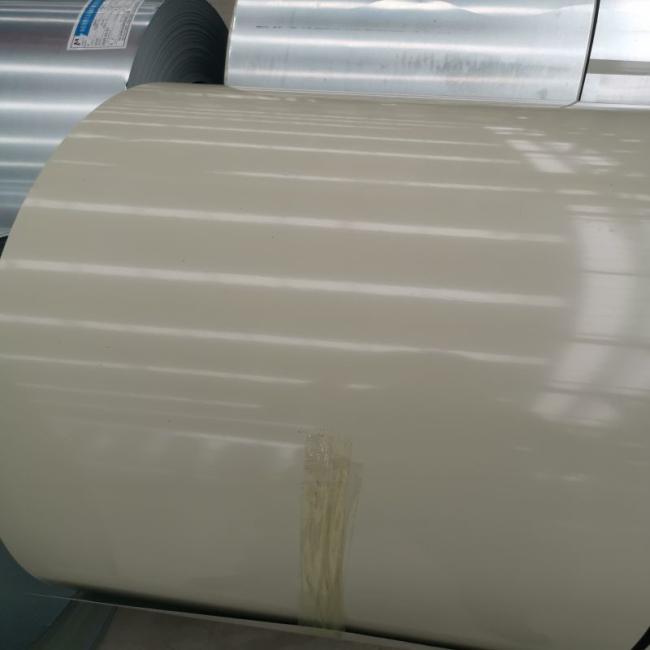

Product Show:
PP:
Pre-paint steel is a bare metal substrate or corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. The metal is unwound, cleaned and chemically treated during the process.
Application:
Pre-painted Galvanized Iron (PPGI)
The hot dip metallic coating process is typically used to coat steel sheet and coil which all may be factory pre-painted like PPGI. PPGI is also used to refer to metallic coated steels that have been pre-painted, by TSC offers PPGI that is zinc coated steel
Gauge Size Table:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
Surface finish :
What is the difference between galvanized and galvalume?
Galvanized steel is made completely of zinc, while galvalume includes aluminum, zinc, and a small amount of silicon. This provides superior durability and resistance to corrosion in comparison to galvanized coating
Packaging :
Ral1013 PPGL Z120 G40 Precoated Zinc Coating Galvanized Steel Coil packaging details :
1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Product Display:
