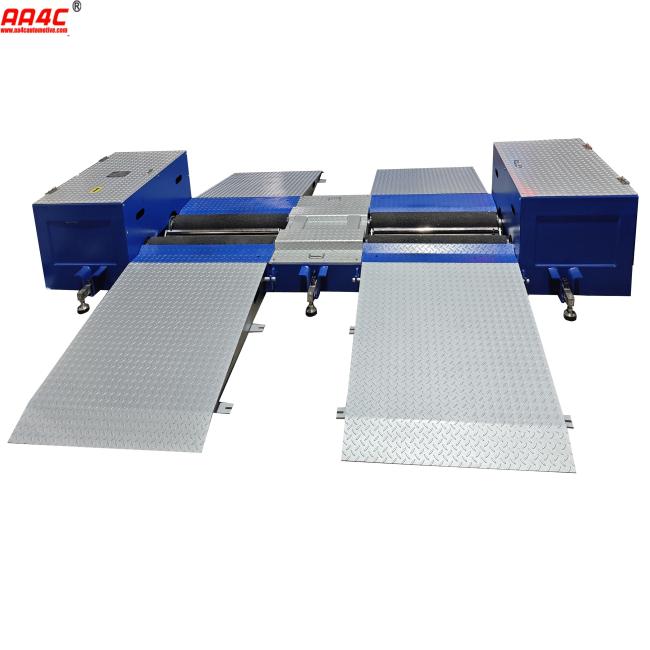

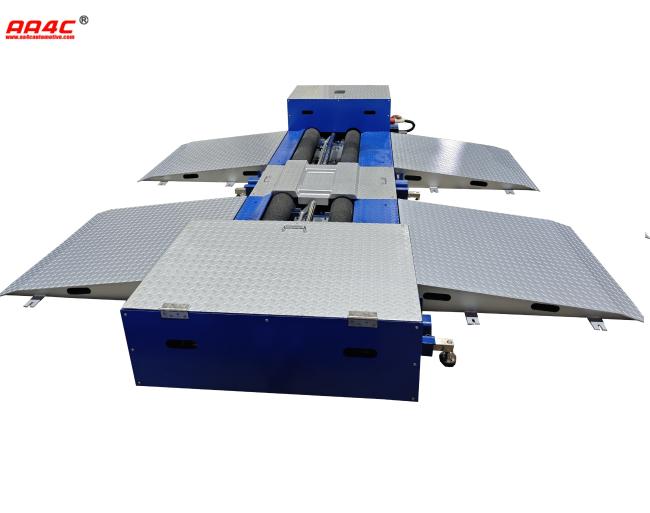

Portable Movable Truck Roller Brake Tester For 4WD Vehicles 10T Capacity Vehicle Test Line Vehicle Inspection Equipment
portable movable truck roller brake tester for 4WD vehicles 10T capacity vehicle test line vehicle inspection equipments
· For testing Brake Force, Brake Efficiency, Brake Imbalance, Friction Efficiency, Axle Load and Ovality
· No need pit foundation anymore, easy to move around.
· The corundum roller has more than 200,000 life span.
· High testing speed, can truly reflect the car braking performance.
· Combined with weighing function.
· We provide solutions for Integration in vehicle cargo body.
· With Slip Rate testing to stop the motor, protect the tires from wear.
· Metal ramps included
· 4WD car test function included
· Remote control included
Technical Parameter:
| Axle load | 10T |
| Motor power | 11kW*2 |
| Test speed | 2.5km/h |
| Test range | 0-30kN |
| Roller diameter | 150mm |
| Roller length | 1,000mm |
| Power supply | 380V 50Hz 3P |
