AA4C Manual Hydraulic Truck Lift Heavy-Duty Loads Hydraulic Lift Table

Price Negotiable

Price: $500.00 - $1,000.00/Units

MOQ: 5pcs

Delivery Time: Negotiable

Brand: AA4C

Product Description

AA4C Manual hydraulic truck lift Heavy-Duty Loads Hydraulic lift table

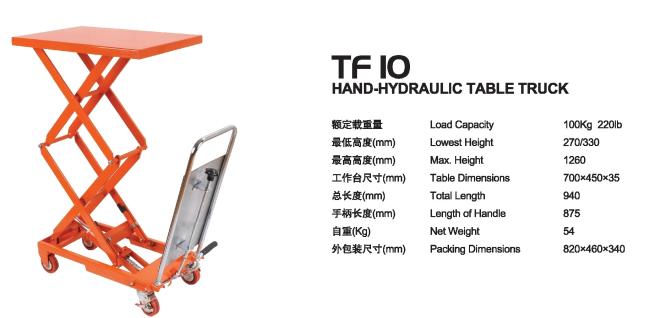

Item no.:	TF 10
Parameters:	Load Capacity	100Kg 220lb
	Lowest Height(mm)	270/330
	Max. Height(mm)	1260
	Table Dimensions(mm)	700x450x35
	Total Length(mm)	940
	Length of Handle(mm)	875
Net Weight(kg):		54
Packing Dimensions(mm):		820x460x340

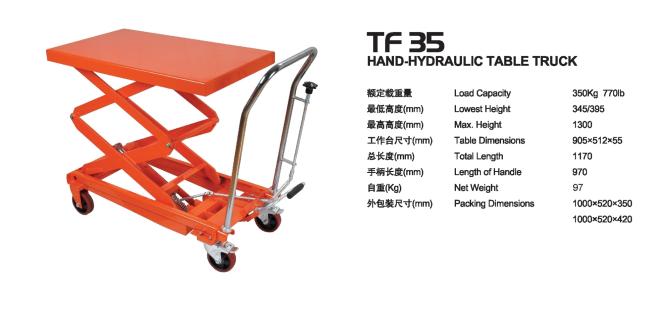

Item no.:	TF 35
Parameters:	Load Capacity	350Kg 770lb
	Lowest Height(mm)	345/395
	Max. Height(mm)	1300
	Table Dimensions(mm)	905x512x55
	Total Length(mm)	1170
	Length of Handle(mm)	970
Net Weight(kg):		97
Packing Dimensions(mm):		1000x520x350/1000x520x420

Item no.:	TF 35C
Parameters:	Load Capacity	350Kg 770lb
	Lowest Height(mm)	345/395
	Max. Height(mm)	1300
	Table Dimensions(mm)	905x512x55
	Total Length(mm)	1280
	Length of Handle(mm)	1000
Net Weight(kg):		117
Packing Dimensions(mm):		1000x520x350/1000x520x420

Item no.:	TF 50M/50MB
		TF 50M	TF 50MB
Parameters:	Load Capacity	500Kg 1000lb	500Kg 1000lb
	Lowest Height(mm)	410	360
	Max. Height(mm)	1070	1280
	Table Dimensions(mm)	600x500x55	750x550x55
	Total Length(mm)	920	1030
	Length of Handle(mm)	970	1000
Net Weight(kg):		96	109
Packing Dimensions(mm):		830x520x410	900x560x370

Item no.:	TF 75S
Parameters:	Load Capacity	750Kg 1650lb
	Lowest Height(mm)	450
	Max. Height(mm)	1500
	Table Dimensions(mm)	1220x610x55
	Total Length(mm)	1540
	Length of Handle(mm)	1000
Net Weight(kg):		179
Packing Dimensions(mm):		1320x620x450

Item no.:	TF 100SD
Parameters:	Load Capacity	1000Kg 2200lb
	Lowest Height(mm)	500
	Max. Height(mm)	1700
	Table Dimensions(mm)	1200x610x75
	Total Length(mm)	1600
	Length of Handle(mm)	1000
Net Weight(kg):		232
Packing Dimensions(mm):		1400x620x510

A hand-hydraulic table truck, also known as a hand pallet jack or hydraulic lift table, is a manual lifting device used for moving and elevating heavy loads. Here are some key features, benefits, and applications of this equipment:

Key Features

1.Hydraulic Lifting Mechanism::

Utilizes a hydraulic pump to lift heavy items with minimal effort. The lift height is adjustable to suit various tasks.

2.Manual Operation:

Operated by hand, allowing for mobility without the need for electricity or batteries.

3.Robust Construction:

Typically made from steel or heavy-duty materials to withstand heavy loads and ensure durability.

4.Ergonomic Design:

Designed to reduce strain on the user, often featuring a comfortable handle for easy maneuvering.

5.Load Capacity:

Designed to support significant weight, depending on the model, making it suitable for various applications.

6.Wheels and Steering:

Equipped with durable wheels for smooth movement, and a steering mechanism for better control.

Benefits

Cost-Effective: Generally more affordable compared to electric lifts, making it accessible for smaller businesses.
Versatile: Can be used in various environments, including warehouses, factories, and retail spaces.
Improved Safety: Reduces the risk of injury by allowing workers to lift heavy items safely and efficiently.
Space-Saving: Compact design allows for easy storage when not in use.

Applications

Warehousing: Ideal for transporting goods and materials within a warehouse.
Manufacturing: Used for moving parts and products between different stages of production.
Retail: Assists in loading and unloading merchandise from delivery trucks.
Logistics: Helpful in managing inventory and facilitating order fulfillment.

Considerations

Weight Capacity: Always check the load capacity to ensure safe operation.
Maintenance: Regularly inspect the hydraulic system and wheels to ensure smooth operation.
Surface Compatibility: Consider the wheels’ suitability for different floor surfaces to prevent damage.

If you have specific questions or need more details about a particular model or application, feel free to ask!
