AA4C HAND-HYDRAULIC TILT TRUCK AND HIGH LIFTING PALLET TRUCK GS100/150 TM100
AA4C HAND-HYDRAULIC TILT TRUCK AND HIGH LIFTING PALLET TRUCK
A hand-hydraulic tilt truck and high-lifting pallet truck are essential tools in warehouses, manufacturing facilities, and retail environments. Here’s an overview of their features, applications, and benefits:
Hand-Hydraulic Tilt Truck
| Item no.: | TM 100 | |||
| Parameters: | Load Capacity | 1000Kg 2200lb | ||
| Overturn Degree(mm) | 88º | |||
| Lowest Height(mm) | 90 | |||
| Fork Length(mm) | 1160 | |||
| Fork Width(mm) | 660 | |||
| Net Weight(kg): | 145 | |||
| Packing Dimensions(mm): | 1600x700x720 | |||
Features
-
Tilt Functionality:
- Allows the bed of the truck to tilt, making it easier to unload materials.
- Ideal for dumping contents quickly.
-
Manual Hydraulic Lift:
- Equipped with a hydraulic pump operated by hand for lifting loads.
- Smooth lifting action enhances safety and control.
-
Durable Construction:
- Made from robust materials to withstand heavy use and loads.
- Often features reinforced edges and a sturdy frame.
-
Ergonomic Design:
- Reduces physical strain on operators by allowing easy dumping and loading.
- Designed for ease of use, minimizing bending and lifting.
-
Mobility:
- Fitted with wheels for easy maneuverability in tight spaces.
- Locking brakes ensure stability during loading and unloading.
Applications
- Material Handling: Transporting bulk materials or debris.
- Construction Sites: Moving heavy materials and debris efficiently.
- Warehousing: Ideal for sorting and organizing inventory.

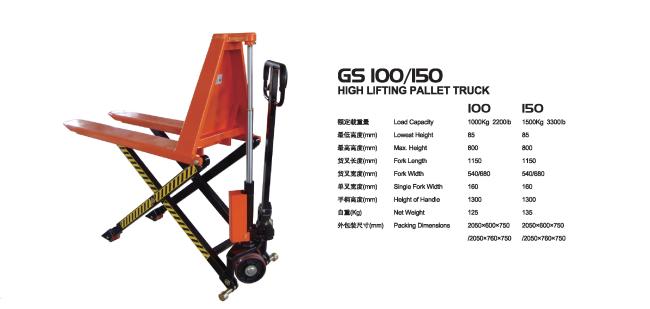

High-Lifting Pallet Truck
| Item no.: | GS100/150 | |||
| GS100 | GS150 | |||
| Parameters: | Load Capacity | 1000Kg 2200lb | 1500Kg 3300lb | |
| Lowest Height(mm) | 85 | 85 | ||
| Max. Height(mm) | 800 | 800 | ||
| Fork Length(mm) | 1150 | 1150 | ||
| Fork Width(mm) | 540/680 | 540/680 | ||
| Single Fork Width(mm) | 160 | 160 | ||
| Height of Handle(mm) | 1300 | 1300 | ||
| Net Weight(kg): | 125 | 135 | ||
| Packing Dimensions(mm): | 2050x600x750/2050x760x750 | 2050x600x750/2050x760x750 | ||
Features
-
High Lifting Capability:
- Designed to lift pallets to greater heights than standard pallet trucks.
- Allows for easier access to high storage areas.
-
Manual Hydraulic System:
- Operated via a hydraulic pump for lifting and lowering.
- Provides precise control over the lifting height.
-
Sturdy Construction:
- Built to handle heavy loads with durability in mind.
- Often features a reinforced frame and high-quality wheels.
-
Ergonomic Handle:
- Designed for comfortable use, reducing operator fatigue.
- Allows for easy maneuverability and control.
-
Versatility:
- Suitable for a variety of pallet sizes and types.
- Can be used in diverse environments, from warehouses to retail.
Applications
- Warehousing: Ideal for stacking and retrieving pallets from high shelves.
- Manufacturing: Moving materials between different workstations.
- Distribution Centers: Facilitating the efficient movement of goods.
Benefits
- Increased Efficiency: Streamlines material handling processes, saving time and effort.
- Enhanced Safety: Reduces the risk of injury from lifting heavy loads.
- Versatile Use: Suitable for various industries and applications.
Considerations
- Load Capacity: Ensure the truck can handle the maximum weight you intend to lift.
- Maintenance: Regularly inspect hydraulic systems and wheels for wear and tear.
Both the hand-hydraulic tilt truck and high-lifting pallet truck are invaluable tools for improving productivity and safety in any material handling environment.
If you have specific questions or need more details about a particular model or application, feel free to ask!
