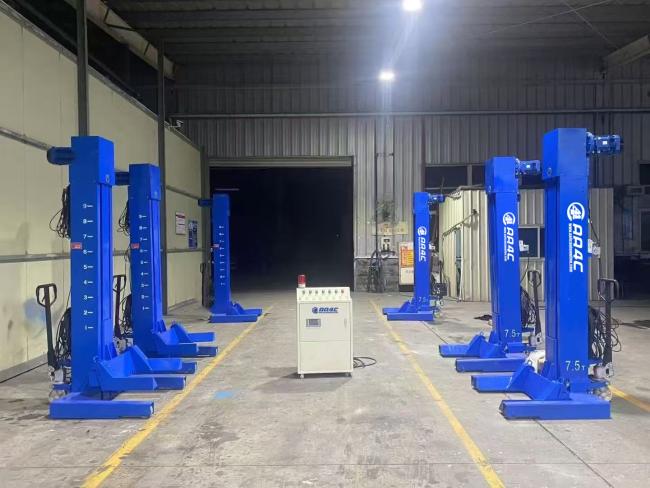

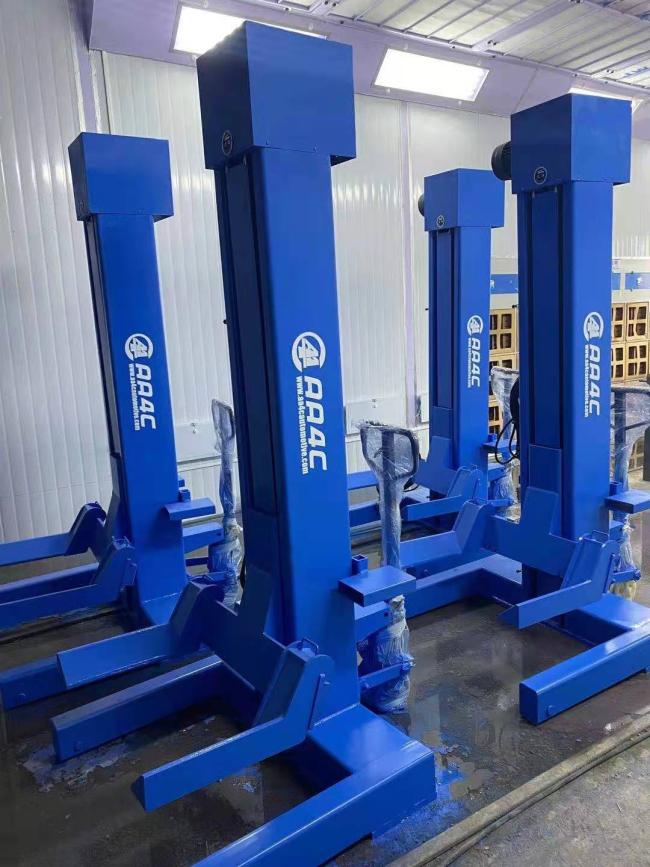

Mechanial screw-up wired Mobile combined 4 Post Heavy Duty Truck Lifts Bus Lift 20T 30T 45T
Mechanial screw-up wired Mobile combined 4 Post Heavy Duty Truck Lifts Bus Lift 20T 30T 45T
1.heavy duty bus lift
2.From 20T to 60T
3.Could be 4 posts or 6 post or 8 post
4.With anti-explosive motor
5.CE certified

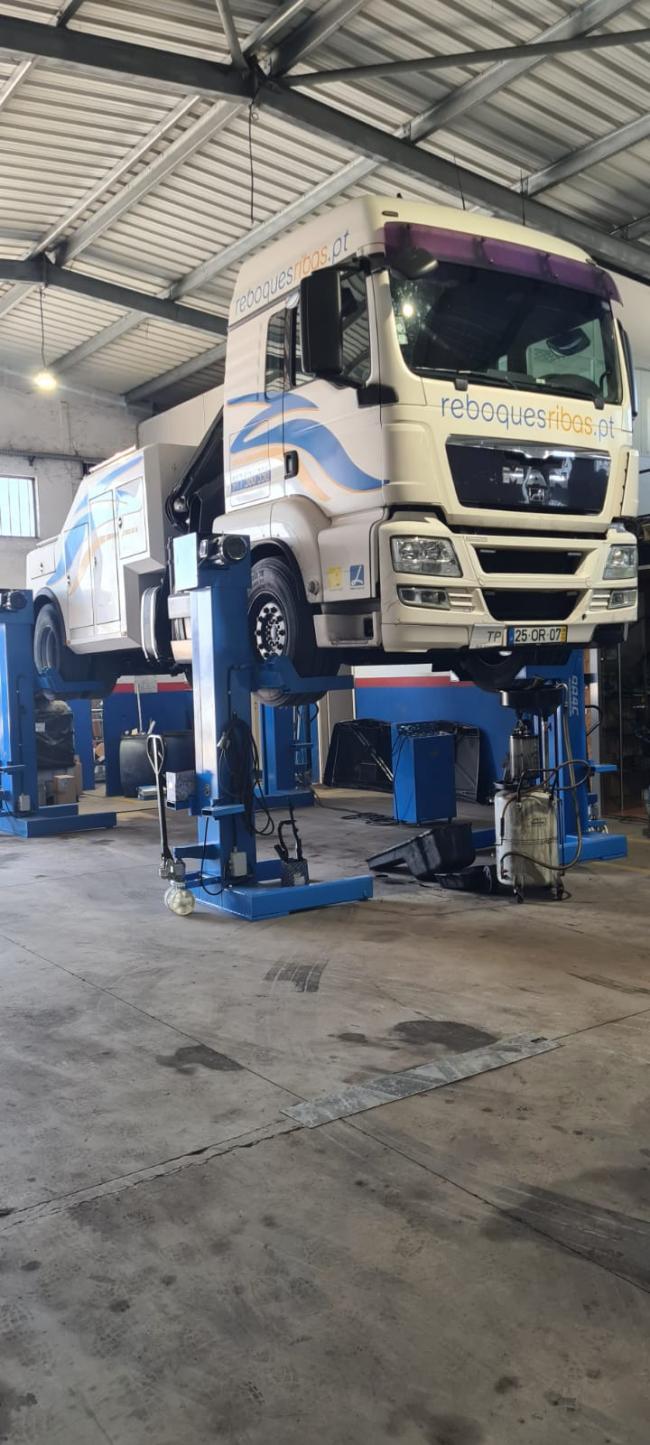

Combined mobile auto lift is ideal repair machine for lots kind of bus, container truck,big vehiles.Traditional repairing is always under the flush , not convinent, very hot in summer, small working space ,let the working effeciceny very low. Now you only need flat floor and power source, our lift could raise very heavey vehiles. Operator or repairing staff could working under the car very easy. Improved the working envoiroment and the working effeciency also.
2.1.1,Mechanical and electronical part
|
Lifing capacity: |
5000 kg -7500kg |
|
Max lifting height |
~1550 mm |
|
Vehicle length |
No limit |
|
Vehicle width |
No limit |
|
Min height of vehicle |
170mm |
|
Suitable tyre |
5.0T:Dia 1200mm-900mm 7.5T:Dia 1200mm-900mm (there has optional part for small tyres) |
|
Lifting speed |
0.6m/min |
|
Down speed |
0.6m/min |
|
Weight for 1 column |
5T (~580kg) 5.5T (~600kg) 7.5T~(~780kg) |
|
Noise |
<60 d B(-)/m |
|
Overal size of column |
5T(1120×1100×2600mm) 7.5T(1150×1150×2600mm) |
|
Temp for working enviroment |
-5 °C/+40°C |
|
Working enviroment |
Both inside&outside, better inside |
|
Operation requirement |
After cutting off the electrical power,then then take off the aviation plug on the control panel. |
|
Lock system |
Composed by copper screw,and security screw,Flap linkage institutions,working copper screw wear and tear automatic stop |
|
Maintenacen Requirement |
The lubrication of the copper screw and main axle is Mobile XHP-222. |
|
Power requirement |
4 post is 12KW,breaker is 40A;6 posts is 18KW, breaker is 60A. |
