AA4C 2 Post parking lift auto parking lift vehicle parking lift2.3T/2.7T
car parking management system ,4 post parking lift AA-DTPP106
parking lift
car lift
Characteristics of the System

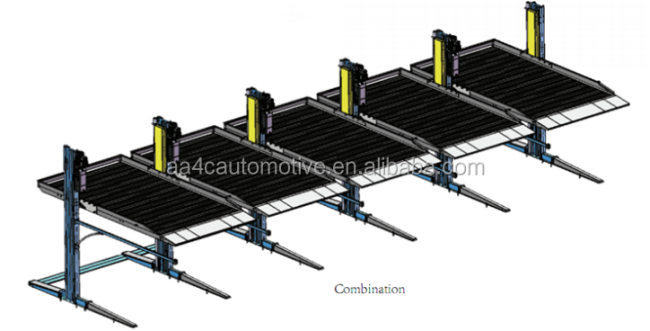

1. Two columns and N+1 columns design; More columns together, more economic;
2. Multi-safety protection devices to guarantee a safe operation;
1) Double sides auto-unlock device;
2) Anti-fall devices
3) Mis-entrance warning device (optional);
4) Over length and over height warning device (optional);
5) Low voltage, lack of phase, overflow, over loading protection devices (optional);
6) Self-lock protection device when electricity is off (Optional);
7) Emergency stop device;
3. PLC auto control, Manual button, IC card, Remote control, more optional way;
4. Adopt multi-grades cylinder lift, advanced technology; Hydraulic drive with low noise and steady operation;
5. Car pallet is hot galvanized or sprayed coating with long life use; also has functions against oil leakage, dirty water and
mud pollution the lower car;
6. The oil drip pan design can protect the bottom car against motor leakage oil and water mud pollution in snow and rain
weather.
7. There is not any columns and and hanging devices in front of the system, it is easy for car in and out.
Parameters
Load Weight | 2700kg max |
Total Height of System | 3535mm |
Total Width of Pallet | 4200mm |
Max Lift Height | 2100mm |
Width of Car Path | 2115mm |
Power of motor | 1.5KW |
Lift Time | 55S |
Distance Between Two Posts | 2400mm |
Weight of System | 980 |
Mode of operation | Manual Button |
Number of cars | 2 |
Electricity | 3 phases 5 wires, 50HZ |





1. 1% of order amount free parts for replacement.
2. 1 year warranty since conatiner arrive port of destination .
3. 2 post lifts, alignment lifts, parking lifts, mid-rise lifts, scissor lifts, and high-rise lifts are warranted for five (5) years on structural components and one (1) year on electric or air / hydraulic power units and cylinders effective since date of arrive port of destination.
4. Any parts which broken for quality reason will be replaced via courier within 1 week.
If any question you can find 24 hours 365 days at:
Mob: +8618017229377
Skype: zhudeping82328
Trade Manager:aa4cautomotive
Wechat: 008618017229377
Whatsapp: 008618017229377
Linkedin: 008618017229377
1.AA4C have full range of garage equipments.
You can buy most items in AA4C related to garage equipments to save your energy to purchase everywhere.
2.AA4C main products :
1)car lifts(1 post ,2 post ,4 post,scissor lift,etc)
2)tire changer(car tire changer,truck tire changer,semi-automatic,full-automatic)
3)wheel balancer(car wheel balancer,truckwheel balancer,semi-automatic,full-automatic)
4)Wheel alignment(commercial ccd Wheel alignment,commercial zigbee wheel alignment,3D wheel alignment, truck wheel alignment)
5)Our featured product rim straightening machine is the most popular in a lot of countries.
Other products such as spraybooth,cleaning machine,brake lathe,tire vulcanzier,Nitrogen inflator,A/C handling machine,fuel injector cleaning machine,welding
machine,hydraulic tools,etc...... Pls visit our website aa4cautomotive.com for more items!
3.Easy way to submit the order !
You can submit the order list in our website aa4cautomotive.com ,after we get the list ,we will issue the PI to you to save your time!
4.AA4C quality management:
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our
products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.
5. AA4C services:
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
6.AA4C products warranty:
We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.
1. Why should I choose AA4C car lift?
There are several reasons you should strongly consider purchasing AA4C Lift:
Top raw materials from only the finest plants
Only professional cost-effective equipment
Low prices with high quality revenue producing products
Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
The best customer service. Quick reply within 24 hours and more.
Great Warranty
2. How safe are AA4C 2 post car lift?
Our 2&4 post lifts have been tested and CE certified for safety . They also meet the American
and Australian Standard.
3. Should I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.
4. What type of fluid is required for my 2 post car lift?
We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately 3 gallons / 12L are required.
5. Are AA4C car lift designed for commercial use?
All of our lifts can be used in commercial applications without any problems.
6. Do you offer any custom designs?
Yes,AA4C provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
