AA4C car painting booth AA-LX2
AA4C car painting booh
|
Parameters |
|
|
Outside size |
7000×5350×3400mm(L×W×H) |
|
Inside size |
6900×3900×2650mm(L×W×H) |
|
Entrance door |
3 folds,3000x2600 mm(W×H), bending steel without covered frame |
|
Emergency door |
650*1800mm(W*H),equipped with handle lock |
|

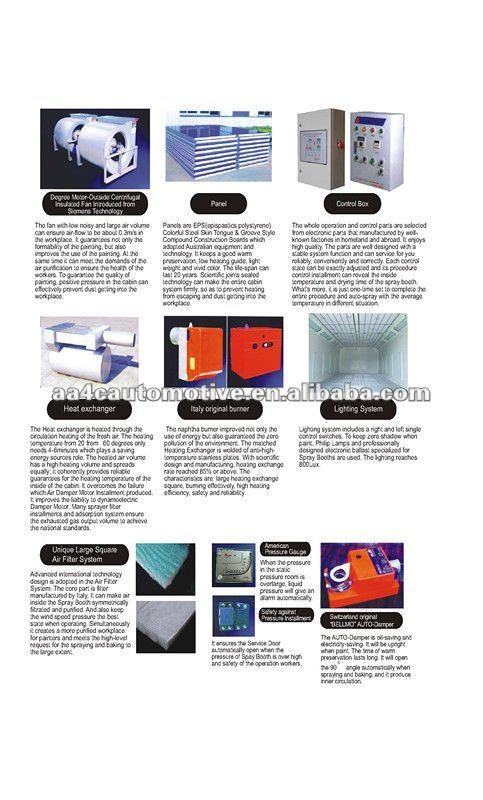

Main System |
||
|
Cabin system |
Wall panel |
-Sandwich style EPS 50mm,0.376mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. |
|
Basement |
-Galvanized steel assemble,300mm high,quadrate steel support,2 rows of grills,3 rows of indented plates. -2 ramps,external setting,620*2000mm(W*L)/pc |
|
|
Ventilation system |
Inlet fan |
2*4kw double-intake centrifugal fans, model: YDW4.5M1, air capacity:12500m³/h for each set |
|
Outlet fan |
Optional |
|
|
Cabinet setting type |
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan*1unit ,air duct*2m long*1unit, -Elbow:90°*1 unit |
|
|
Airflow speed |
0.35m/s,ventilation rate:280time/h |
|
|
Heating system |
Burner |
Italy RIELLO G20 oil burner, heating capacity: 200000Kcal/h, with BELIMO 10N electric damper |
|
Heat Exchanger |
1.2mm thickness SUS304 stainless steel |
|
|
Cabinet |
Rock-wool insulation*1 unit |
|
|
Lighting system |
Ceiling lights |
24pcs*36w Philip tubes with electronic ballast . |
|
Side lights |
Optional |
|
|
Filtering system |
Primary filter |
Grade G2 plate type , filtering rate>83% |
|
Ceiling filter |
EU5 grade high efficient filter,filtering rate>98% |
|
|
Floor filter |
Multi-layer fiberglass filter,filtering rate>70% |
|
|
Control system |
Control panel |
Intelligent control system |
|
Function |
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc |
|
|
Total power |
9.5KW |
|
|
Voltage/Frequency |
380V,50HZ,3 phase |
|
Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equipment manufacturer since 1995. AA4C means Always and All for (4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, We have passed ISO9001, authenticated by 2000 International Quality Control System.
We are mainly dealing AA4C products development, product design as well as OEM/ODM manufacturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China)
Facing the future opportunities and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the inter courses and cooperation with other producers in the field both at home and abroad; And exert ourselves to pay back our clients with high-quality products and perfect after-service.
|
Trade Terms |
FOB / CFR |
|
MOQ |
3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee) |
|
Port |
SHANGHAI |
|
Shipment |
BY SEA /AIR |
|
Payment Terms |
T/T |
|
Payment condition |
30% prepayment,balanced againt BL copy&L/C at sight. |
|
Supply Capability |
1000units/month |
|
Sample Availability |
Yes ,But all freight(Inland freight +seafreight) covered by buyer |
|
Sample package |
Post :2900*500*720mm ; Power unit: 940X280X370mm |
|
Sample Time |
5-10days(depends on whether have in stock) |
|
Lead Time |
25-30days(Rush season 5-10days longer) |
|
Packing |
Metal frame&Carton |
|
Delivery time |
30-45days shipping time (depends on destination position) |
|
Service |
1% free parts;1year warranty after port of destination |
