Adjustable 16-27W LED Troffer Light Panel 3000K-5000K Working Voltage 100-347VAC
Product Description:
A frosted lens has the ability to provide consistent light distribution with superior color rendering capabilities and minimal glare. Additionally, its architectural features make it an ideal match for a variety of interior settings, including offices, educational institutions, healthcare facilities, hospitality establishments, and retail spaces.
The evenly dispersed illumination of a frosted lens ensures that all areas are illuminated, and colors appear accurately and naturally. With low levels of glare, it is not only visually comfortable, but also easier to work under for extended periods of time. Its streamlined design is well-suited to modern interiors, complementing a wide range of contemporary aesthetics.
Whether used in large-scale applications or smaller areas, a frosted lens lighting system is an excellent addition to any space that requires high-performance, energy-efficient lighting. It adds both style and functionality, and is a proven solution for a wide range of lighting needs.
Overall, the combination of even lighting, color accuracy, reduced glare, and trendy design make frosted lenses a practical and visually appealing choice for any indoor space.
Features:
The CLASS P Programmable LED Driver allows for 4 step power adjustment and has a high CRI of over 80, making it an excellent choice for any commercial or residential lighting application. Additionally, the driver is CCT tunable and offers four different color temperature options including 3000K, 3500K, 4000K, and 5000K, making it a versatile choice for a variety of different settings.
With the ability to minimize stock, only one SKU is needed to cover a maximum of 16 different models, making it a cost-effective solution for many businesses. With built-in PIR sensor and motion sensor options, this driver offers both convenience and efficiency in energy management.
When paired with a volumetric LED troffer light, the built-in emergency driver option ensures that light will continue to be provided in the case of a power outage or emergency situation. With a L70 rating of over 50,000 hours and a five-year warranty, this driver is truly built to last.
Technical Parameters:
| Product Name | LED Troffer Lights |
| Material | White Powder Painted Steel |
| Input Voltage | 100-277VAC Or 100-347VAC |
| Application | Schools, Offices, Conference Room, Hospitality Etc. |
| Warranty | 5 Years |
| Color Temperature | 3000K / 3500K 4000K / 5000K |
| CRI | >80 |
| Power | 16W / 20W / 24W / 27W |
| Luminous Flux | 2000-2500-3000-3375LM |
| Beam Angle | 120° |
Advantages
CCT AND WATTAGE SELECTIVE TROFFER LIGHT
| Power Adjustable Slide Switch Position | ||||
| Size/Positon | 0 | 1 | 2 | 3 |
| 1X4 | 27W | 24W | 20W | 16W |
| 2X2 | 27W | 24W | 20W | 16W |
| 2X4 | 40W | 30W | 25W | 20W |
Applications:

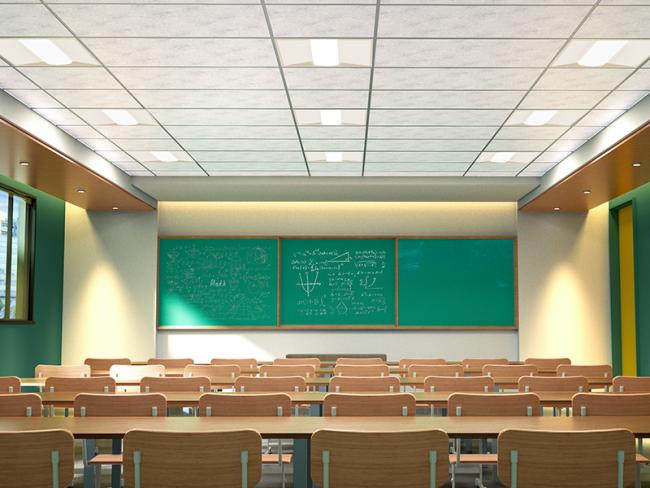

Schools, offices, conference room, hospitality etc.
