4FT 15W 130lm/W Surface Mounted 15-Watt LED Linear Light, With 30K/35K/40K/50K Tunable

• 2.5” Linear Strip Light fixture is a compact diffused light for commercial, retail and residential purpose..
• Optional Occupancy Sensor & Built-in Emergency Battery Backup

• CLASS P Programmable LED Driver, 4 Step Power Adjustable,
• Minimize stock, 1 SKU can cover max. of 16 models.
• Various Lens Option: Clear, Frosted,
• Built-in PIR Sensor and Motion Sensor Options.
• L70>50,000hrs, 5 year warranty.

Suitable for surface mounted, suspended mounted.

Bi-level 12VDC 0-10V Motion Sensor

Specification

• Dual PD Technology: can identify daylight and artificial light.
• Input Voltage: 12VDC
• Output: 0-10V, 25mA sinking current
• Mounting Height: Max. 40ft.
• Detection Range: 30ft @ 40ft height in diameter
• IR remote commissioning: easy setting via remote controller
• Photocell available

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
• Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
• Twiligh Time: never turn off/1min, 30min, 1h, never tun off
• Twilight Level: 20%/off, 10%, 20%, 50%

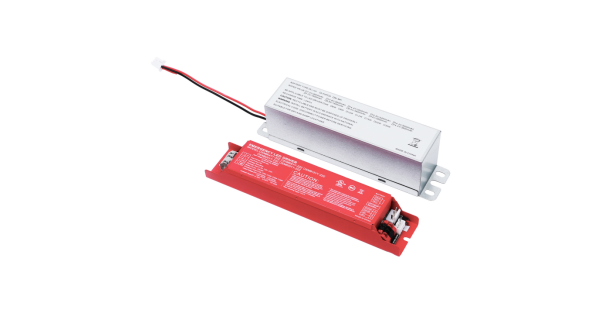

4W or 8W UL Listed Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 15 or 30W
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:
• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection
• Output Short Circuit Protection
• Working Temp.: 10℃ to 50℃

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

HOW TO CHANGE THE CCT IN THIS FIXTURE
