3500lm 64W Dimmable LED Wraparound Lights , 4ft LED Wrap Light Bi Level Occupancy Sensor
Bi-level Occupancy Sensor 4FT 3500lm 64W 0-10V Dimming LED Wrap Fixture, 35K-40K-50K Color Switch
-
Noonlight 5” Wide LED Utility Wraps Series Is A Cost-effective, Energy-efficient Lighting Solution, That Are Ideal For High-occupancy Dwellings, Parking Garages, Stairwells And Other Commercial Utility Applications.
Equipped With Pc Lens, Comparing With Fragile Prismatis Lens In The Market, Noonlight 5” Wide Utility Wraps Are More Vandall And Long Lasting Fixtures.Integral Of New Trend Of Field-adjustable Functions Provide Our Customers Greater Flexibility On Wattages And Color Temperatures.
Built-in Occupancy Sensor Allows For Bi-level Control.
- UP TO 135LM/W
- CLASS P Programmable LED Driver, 3 Step Power Adujustable,
- CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
- Minimize stock, 1 SKU can cover max. of 12 models.
- An auxiliary to connect low voltage sensor/BLE or other IOT network.

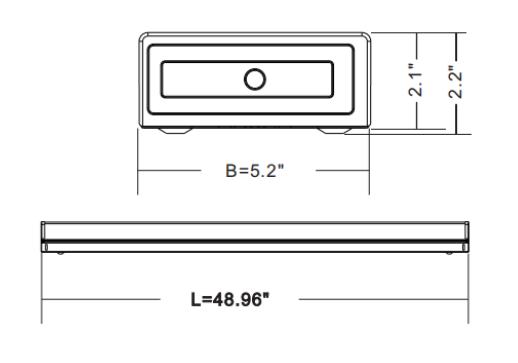

- 2 Depth Design: Super Thin & Standard
- 5-100% 0-10V dimmable, flicker free, Dim to off.
- Built-in PIR Sensor and Motion Sensor Options.
- Built-in Emergency Driver Option.
- L70>50,000hrs, 5 year warranty.
| Model No | DLC | Input Voltage | Wattage | Lens | CRI/CCT | Rated Lumen @ 50K |
Rated Efficancy @ 50K |
Viewing Angle |
Rated Lifetime |
DLC Category |
|
N-LS5-4FT-25W-1XXK-[Blank, HV]-[Blank, S1, S2]-D-FL-[CTFA, CT, FA]-Z |
YES
|
240-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
25 |
Frosted
|
Ra>80, 30K 35K 40K 50K |
3400 | 135 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
|
N-LS5-4FT-18W-1XXK-[Blank, HV]-[Blank, S1, S2]-D-FL-[CTFA, CT, FA]-Z |
YES |
240-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
18 |
Frosted |
Ra>80, 30K 35K 40K 50K |
2500 | 135 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
|
N-LS5-4FT-15W-1XXK-[Blank, HV]-[Blank, S1, S2]-D-FL-[CTFA, CT, FA]-Z |
YES |
240-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable, DIm to Off |
15 |
Frosted |
Ra>80, 30K 35K 40K 50K |
1600 | 135 | 120° |
L70> 50000hrs |
Direct Linear Ambient Luminaires |
HOW TO CHANGE THE WATTAGE IN THIS FIXTURE
|
Power Adjustable Slide Switch Position |
||||
|
Size/Positon |
W1 |
W2 |
W3 |
W4 |
|
2FT |
30W |
20W |
15W |
10W |
|
4ft |
40W |
25W |
18W |
12W |
|
4ft |
80W |
70W |
60W |
45W |
|
CCT Tunable Slide Switch Position |
|
|
Position/Group |
CCT |
|
CCT1 |
3000K |
|
CCT2 |
3500K |
|
CCT3 |
4000K |
|
CCT4 |
5000K |
Bi-level 12VDC 0-10V Motion Sensor
Specification
- Dual PD Technology: can idenify daylight and artificatial light.
- Input Voltage: 12VDC
- Output: 0-10V, 25mA sinking current
- Mouting Height: Max. 40ft.
- Detection Range: 30ft @ 40ft height in diameter
- IR remote commissing: easy setting via remote controller
- Photocell available
Default Setting/Setting
- Sensitivity: 100%/25%, 50%, 75%, 100%
- Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
- Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
- Twilgith Time: never turn off/1min, 30min, 1h, never tun off
- Twilight Level: 20%/off, 10%, 20%, 50%
NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:
- OEM/ODM Serivce
- Photometric/IES file
- PCB Design/Driver Design
- Heat Management/Optical Design
- Industry Design
- Market Support
- 3D Printing
- Multiple Listing/Private Label.
Stairwell Lighting, Passageway Lighting, Corridor Lighting, Shop Lighting, Strip Lighting, Low Bay Lighting, Warehouse Lighting
