China 14533496 Hydraulic Fan Motor For EC360 EC380 EC460 Excavator for sale

14533496 Hydraulic Fan Motor For EC360 EC380 EC460 Excavator

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 1-7Work Days

Product Description

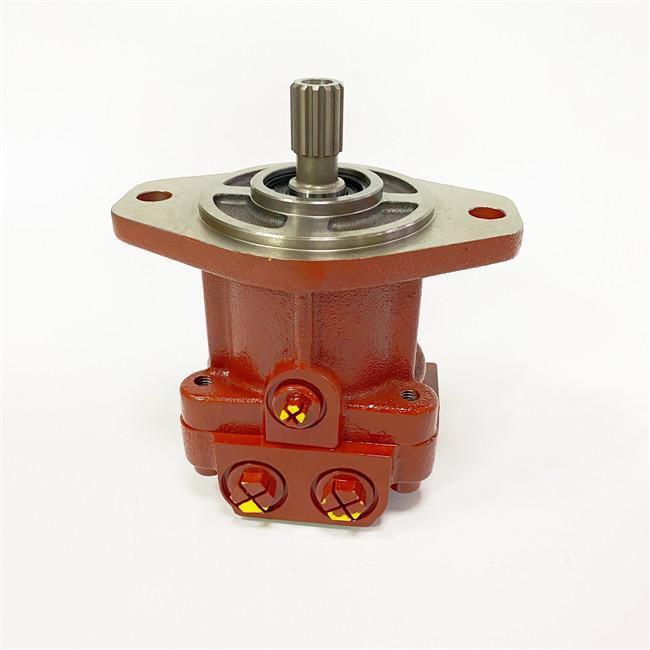

EC360 EC380 EC460 Hydraulic Fan Motor 14533496 Excavator Parts

Specifiion

Part Number	14533496
Part Name	Fan Motor
Applicable	Excavator
Model	EC360 EC380 EC460
Material	Cast iron
Size	Size
Condition	100% new
Availability	In Stock

Appliion Model

EC330B EC330C EC340D EC360B EC360C EC360CHR EC380D EC380DHR EC460B EC460C EC460CHR EC480D EC480DHR ECR145C ECR145D ECR145E PL4608 PL4611 PL4809D .Heavy

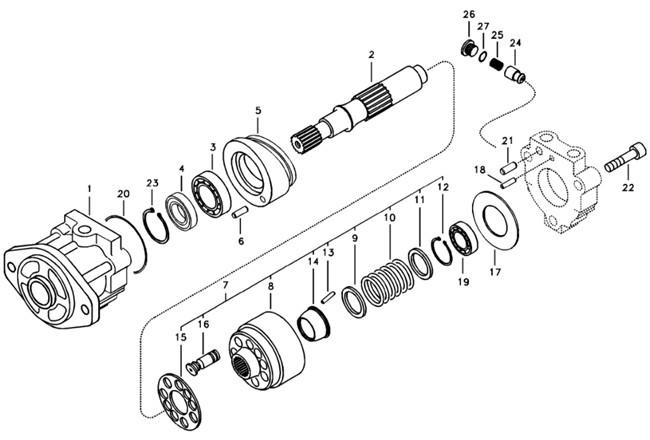

Parts Drawing

Pos.	Part Number	Qty	Parts Name
	VOE14533496	[1]	Fan motor
1	VOE14536003	[1]
2	VOE14537413	[1]	Shaft
3	SA8230-33970	[1]	Ball bearing
4	VOE14537414	[1]	Seal
5	VOE14537415	[1]	Plate
6	VOE14512771	[1]	Pin
7	VOE14537417	[1]	Cylinder Block
8	VOE14536007	[1]	Block
9	VOE14536008	[1]	Seat
10	VOE14536009	[1]	Spring
11	VOE14536010	[1]	Washer
12	VOE14512773	[1]	Ring
13	VOE14536011	[3]	Pin
14	VOE14536012	[1]	Holder
15	VOE14536013	[1]	Plate
16	VOE14536014	[1]	Piston
17	VOE14536015	[1]	Plate
18	VOE14536016	[1]	Pin
19	VOE14536017	[1]	Bearing
20	VOE14536018	[1]	O-ring
21	SA8230-32410	[1]	Pin
22	SA8230-33220	[3]	Bolt
23	VOE14512772	[1]	Ring
24	VOE14536020	[1]	Non-return valve
25	VOE14536021	[1]	Spring
26	VOE14536022	[1]	Plug
27	VOE983505	[1]	O-ring

The Following Fan Motor Fan Pump Can Be Provided

325C Fan Pump 200-3406
325C Fan Motor 179-9778
330C Fan Pump 283-5992
330C Fan Motor 191-5611 / 194 / 8384
330D 336D Fan Pump 259-0815
330D 336D Fan Motor 234-4638
345 349 Fan Pump 295-9426
345 349 Fan Motor 295-9429
385B Fan Motor 200-3252
980H Fan Motor 266-8034
345CL Fan Motor 266-8034
345B Fan Pump 259-0814
345B Fan Motor 155-9107
