S6D125-1 Engine Komatsu Turbo Charger 6151-83-8110 K18 Material
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
1-7Work Days
Product Description
TA4532 Turbocharger 6151-83-8110 Komatsu S6D125-1 Engine Parts
Specifiion
| Part Number | 6151-83-8110 |
| Part Name | Turbocharger |
| Turbine Model | TA4532 |
| Appliion | Komatsu Engine Parts |
| Engine Model | S6D125-1 |
| Material | K18 |
| Quality | 100% Detection |
| Size | Standard |
| Condition | New |
| Parts Availability |
In Stock |
Product Performance Testing
1. The Turbo Rotor Shaft & Wheel Balancing Test(REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The Turbo CartrIdge Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
Turbocharged parts
| Pos. | Part No | Qty | Parts Name |
| 6151-83-8210 | [1] | TURBOCHARGER ASSEMBLY | |
| 6151-83-8110 | [1] | TURBOCHARGER ASSEMBLY | |
| 1 | GA443209-0028 | [1] | HOUSING, COMPRESSOR |
| 1 | GA443211-0014 | [1] | HOUSING, COMPRESSOR |
| 2 | GA410987-0000 | [4] | CLAMP |
| 3 | GA400627-0810 | [8] | BOLT |
| 4 | GA442262-0004 | [1] | HOUSING, TURBINE |
| GA400738-5460 | [1] | V-BAND ASSEMBLY | |
| 5 | GA400738-0460 | [1] | V-BAND |
| 6 | GA400580-0000 | [1] | NUT, LOCK |
| 7 | GA441398-5052 | [1] | ROTOR ASSEMBLY |
Turbocharger Model
| Pos. | Model | Part No. | Cross Code | Engine No. |
| 1 | PC100-5/PC120-5 | 6205-81-8110 | 465636-0206 | S4D95L |
| 2 | TD04L-10GKRC-5 | 6208-81-8100 | 49377-01610 | 4D95LE |
| 3 | PC200-3 | 6137-82-8200 | 465044-0261/465044-5261 | S6D105 |
| 4 | PC200-5 | 6207-81-8210 | 465044-0251 | S6D95 |
| 5 | PC200-6 | 6735-81-8300 | 722527-5001 | S6D102 |
| 6 | PC200-6 | 6207-81-8331 | 700836-5001 | S6D95L |
| 7 | PC200-6 | 6735-81-8031 | HX35 3536338/3802862 | S6D102-1 |
| 8 | PC200-7 | HX35 3595157 | S6D102E-1 | |
| HX35 | 4035374/4035373 | 4038475 | ||
| PC200-8 | 6754-81-8090 | HX35 4037469 | 6D107 | |
| PC220-5 | 6207-81-8220 | 465044-0252 | S6D95 | |
| 9 | PC220-6 | 6137-81-8400/8800 | 465044-0252 | S6D105 |
| HX35 | 3539697 | 3536697 | S6D105 | |
| 10 | PC220-7 | 6738-81-8190/6738-81-8192 | 3598036/4038471 | SA6D102 |
| 11 | PC300-3 | 6152-81-8410 | S6D125 | |
| 12 | PC300-5 | 6222-81-8210 | 466704-0203 | S6D108 |
| 13 | PC300-6 | 6222-83-8171 | 466670-0013 | SA6D108 |
| 14 | PC400-5 | 6152-81-8200/6152-83-8110 | 465105-0010 | S6D125 |

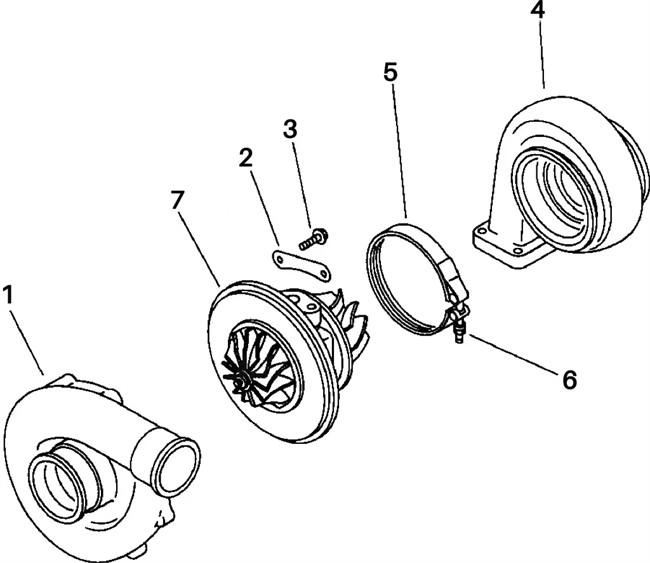

Parts Drawing
