Zipper Shipping Boxes Amazon Boxes / Maximum Paper Size 1300mm×1050mm / CE

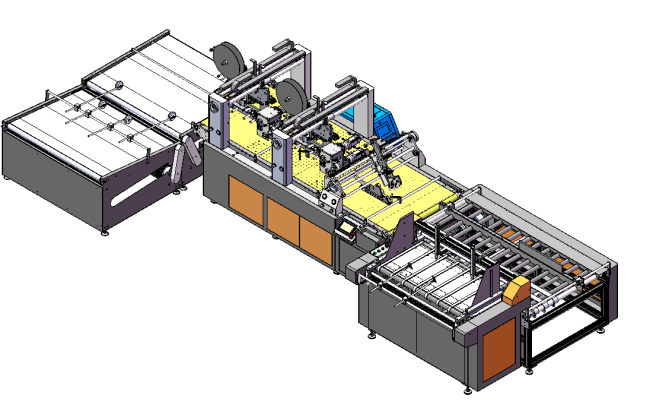

Description of machine

Full automatic stick double-sided adhesive machine is designed and researched by Deshisen CO., Ltd for single sheet water-based printing of corrugated container, Offset printing color-mounted corrugated cardboard boxes, cardboard color boxes, etc., affixed with double-sided tape and easy-to-tear tape simultaneously.

Any type of coding system can be set up on the platform for variable information printing, and a labeling head can be optionally installed. Local labeling function can be installed as well.

This series adopts a more optimized modular design, users can have more personalized choices, and achieve a multi-purpose design concept.

This equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.

Product parameters:

Feature:

1. The machine is running steady with strengthened driving system, and it is also easy for maintenance.

2. The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.

3. An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.

4. Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.

5. Grinders are provided in both sides of machine, to make gluing more stable and firm.

6. Two sets of gluing devices: gluing for bottom glue, gluing for side glue. All standard glue units shall apply thread glue. Space adjustment is made by means of toothed bars.

7. PLC control system, touch screen, easy to operate. Output quantity/speed/count, etc., can be set by the system. Maintenance is carried out by remote diagnosis (including remote control system), and the tablet pressing speed is controlled by photoelectric system (the tablet pressing speed is automatically corresponding to the feeding speed). Count by photoelectric sensor and electromagnet kick.

Safety performance:

A: Electrical safety meets the national standard (CE certification);

B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.

C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2

D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle;
