99.95% Vacuum Coating Tungsten Metal Sheet 19.1g/Cm3 Density Polished Tungsten Plate
polished tungsten plate tungsten plate sheet for vacuum coating

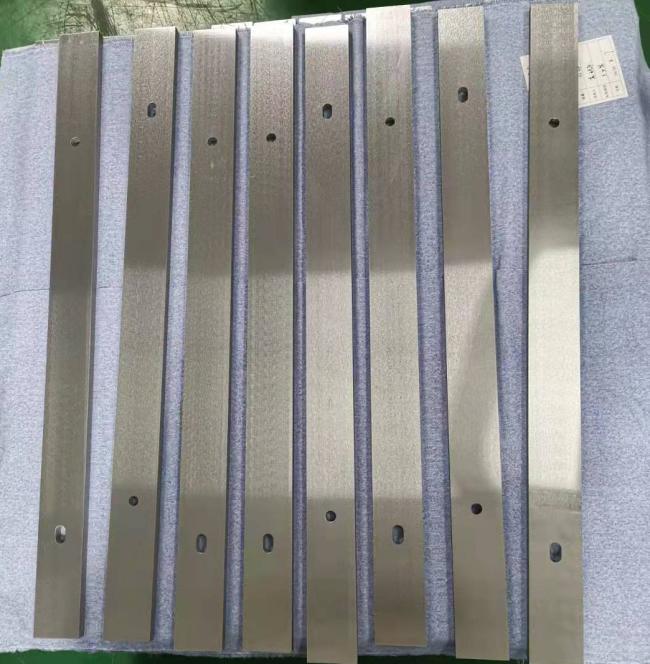

Tungsten plate from Sifon:
- Character:
1.Tungsten plate with a high purity of 99.95%;
2.The density of tungsten plate is higher than 19.1g/cm3;
3. Our tungsten sheet can be as thin as 0.05mm ;
4. tungsten sheet can bear high termperature more than 2000 ℃
5. tungsten sheethas as good radiation shielding effect as lead plate;
6. Our tungsten sheet meets the standard ASTM B370
- Application:
Tungsten sheet is widely used in aerospace, electronics, lighting, medical equipment, vacuum coating, electric vacuum stove electrode, heat insulation screen, etc as the radiation shielding material and radiation-protective equipment.
- normal dimension
For the tungsten sheet, following is the normal tungsten sheet dimension form. For any special dimension, call us please.
| Item | surface | thickness/mm | width/mm | length/mm | purity | density(g/cm³) | producing methord | |
| T | tolerance | W | L | |||||
| W foil | alkaline wash | ≥0.05-0.1 | ±0.015 | ≤200 | ≤500 | ≥99.95% | ≥19.1 | rolling |
| W sheet | alkaline wash | ＞0.1-0.2 | ±0.02 | 50-500 | 100-2000 | |||
| ＞0.2-0.3 | ±0.03 | |||||||
| ＞0.3-0.4 | ±0.04 | |||||||
| ＞0.4-0.6 | ±0.06 | |||||||
| ＞0.6-0.8 | ±0.08 | |||||||
| ＞0.8-1.0 | ±0.1 | |||||||
| ＞1.0-2.0 | ±0.05 | |||||||
| ＞2.0-3.0 | ±0.05 | |||||||
| grind | ＞3.0-25 | ±0.05 | 50-500 | 100-200 | ||||
| ＞25 | ±0.05 | ≥19 | forging | |||||
For the tungsten sheet surface, we can make it alkaline wash & grind surface. as customer requires.
Advantage of Sifon:
As the manufacturer, firstly, we have very good quality control system, the products will be inspected by each step including the surface, the dimension, crack, or other inspection item as cumtomer requires.
Secondly, as a factory, our price has obvious advantages. We'd like to make our customer purchase good quality products with good price. It's a win-win business.
What's more, we have full after sales service. In case there is a quality problem, we are responsible. And we will do our best to solve the problem to make our customer satisfied.
Brief show of Sifon factory:
Packing & shipping for tungsten sheet:
Tungsten sheets will be packed with kraft paper first to protect the surface.
To ensure the safety during transportation, products will be packed accordingly with exportable wooden box with foam sheet protection inside.
If customer has special packing requirments, we will try to meet them.
Note: When you received the products, open the package carefully, some parts are sharp, please protect yourself. And if there is any damage, remember to contact with us, we will solve the problem for you.
