Iron Craft Chain Link Sliding Gate Hardware Metal Fence Accessories
Iron Craft Chain Link Accessories Hot Dip Galvanized Fence Fittings
All accessories suitable for chain link fence of below size:
End post 2-3/8"
Line post 1-5/8"
Top/bottom rail 1-3/8"
Including post caps, rail end caps, brace band, tension band, tension bars, gate hinges, gate latchs, hog rings, binding wire, etc.
The chain link fence need match with posts, brace,tension,frame hinge,rail clamp,gate corner,clamps,rails,and other fittings to build a chain link fence system.So we not only provide the chain link fence,post,but also provide kinds of accessories.
Galvanzied chain link fence fittings can be PVC coated or Galvanized.
|
Tension Bands
|
|
|
Round Post Size
|
Weight
|
|
1-3/8"
|
0.22 lbs
|
|
1-5/8"
|
0.23 lbs
|
|
2"
|
0.25 lbs
|
|
2-1/2"
|
0.28 lbs
|
|
3"
|
0.32 lbs
|
|
3-1/2"
|
0.40 lbs
|
|
4"
|
0.42 lbs
|
|
6-5/8"
|
0.64 lbs
|
|
Brace Bands
|
|
|
Post Size
|
Weight
|
|
1-3/8''
|
0.17lbs
|
|
1-5/8"
|
0.20 lbs
|
|
2"
|
0.22 lbs
|
|
2-1/2"
|
0.27 lbs
|
|
3"
|
0.33 lbs
|
|
3-1/2"
|
0.36 lbs
|
|
4"
|
0.42 lbs
|
|
6-5/8"
|
0.76 lbs
|
|
180 ° Brace Band
|
|
|
Size
|
Weight
|
|
2''
|
0.25 lbs
|
|
2-1/2"
|
0.27 lbs
|
|
3''
|
0.34 lbs
|
|
4''
|
0.50 lbs
|
|
Rail End Caps
|
|
|
Rail Size
|
Weight
|
|
1-5/8"
|
0.35 lbs
|
|
2"
|
0.39 lbs
|
|
45° Barb Wire Arm 6-Strand
|
|
|
Size
|
Weight
|
|
Fits 2 O.D. Post,1-5/8 Top Rail"
|
2.88 lbs
|
|
Fits 2-1/2 O.D. Post,1-5/8 Top Rail"
|
3.09 lbs
|
|
90 ° Brace Band
|
|
|
Size (O. D)
|
Weight
|
|
2"
|
0.26 lbs |
|
2-1/2"
|
0.31
|
|
3"
|
0.38 lbs
|
|
Top Rail Sleeve
|
|
|
Size
|
Weight
|
|
1-3/8" x 6"
|
0.37 lbs
|
|
1-5/8" x 6"
|
0.52 lbs
|
|
2" x 7"
|
0.62 lbs
|
|

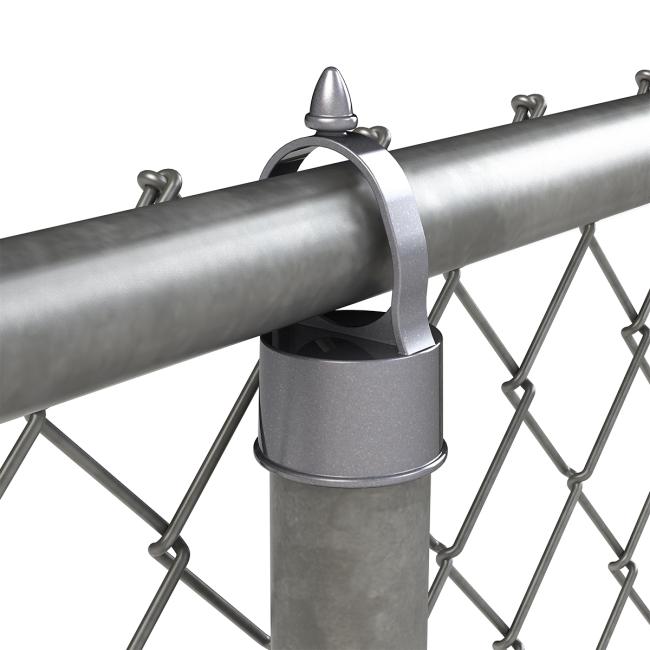

Loop Caps
|
|
|
(Post x Top rail ) size
|
Weight
|
|
1-5/8" x 1-3/8"
|
0.25 lbs
|
|
2" x 1-5/8"
|
0.30 lbs
|
|
2" x 1-5/8"
|
0.40 lbs
|
|
2-1/2" x 1-5/8"
|
0.55 lbs
|
|
3" x 1-5/8"
|
0.79 lbs
|
|
Post Caps
|
|
|
Post Size
|
Weight
|
|
1-3/8"
|
0.10 lbs
|
|
1-5/8"
|
0.15 lbs
|
|
2"
|
0.19 lbs
|
|
2-1/2"
|
0.25 lbs
|
|
3"
|
0.45 lbs
|
|
4"
|
0.90 lbs
|
|
6-5/8"
|
2.30 lbs
|
|
Male & Female Strap Hinge
|
|
|
Post Size
|
Weight
|
|
1-3/8"
|
0.58 lbs
|
|
1-5/8"
|
0.60 lbs
|
|
2"
|
0.67 lbs
|
|
2-1/2"
|
0.69 lbs
|
|
3"
|
1.15 lbs
|
It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;
It has 4 metal corners to keep the pallet more strong;
It has metal plate under the plastic bandage to reduce the apressure of fence panels;
It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
1. High Quality Courtyard Sliding Gate Payment :
T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight
Or 30% deposit,70% L/C st sight
2. High Quality Courtyard Sliding Gate Delivery:
within 15 days after receiving the advance payment
