2-3/8" Chain Link Fence Attachments Hardware Aluminum Cast Iron

Price Negotiable
Price: Negotiate
MOQ: 100 pieces, Negotiate
Delivery Time: Negotiable
Brand: XQ
Product Description

Producet name:

Iron Craft Chain Link Accessories Hot Dip Galvanized Fence Fittings



All accessories suitable for chain link fence of below size:

End post 2-3/8"

Line post 1-5/8"

Top/bottom rail 1-3/8"



Including post caps, rail end caps, brace band, tension band, tension bars, gate hinges, gate latchs, hog rings, binding wire, etc.



Material:

Made of galvanized steel then covered with plastic coating, chain link mesh can meet requirements for long life fences.

Applications:

Plastic Coated Chain link Fence is mainly used as fences for playground and gardens, super highway, railway, airport, port, residence, etc. Chain link fence is also used in animals breeding.
Chain link type wire fence fabrics can be made into fences and be used in various applications.
Chain Link Fence Fabrics can be galvanized mesh, plastic coated galvanized mesh or aluminum mesh.
We offer chain link fabrics with two types of end: barbed wire or knuckled end. Typical opening type of chain link fabrics is diamond opening.





Product Description



Galvanzied chain link fence fittings can be PVC coated or Galvanized.

1.Flat iron : support chain link fence 2.Brace band : link tensioner & post 3.Tension band : Link the flat iron & post 4.Tensioner : secure the line wire 5.Line wire : Folding the chain link mesh 6.Tie wire & Stirrup wire : secure the line wire & post and secure the post and the mesh. 7.Any other types fittings and accessories for chain link fence installation
Product details

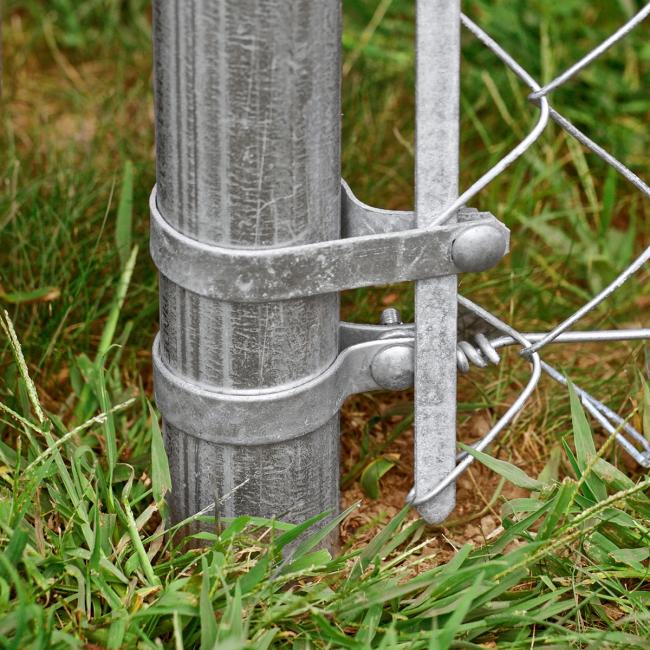

Tension Bands
Round Post Size
Weight
1-3/8"
0.22 lbs
1-5/8"
0.23 lbs
2"
0.25 lbs
2-1/2"
0.28 lbs
3"
0.32 lbs
3-1/2"
0.40 lbs
4"
0.42 lbs
6-5/8"
0.64 lbs
Brace Bands
Post Size
Weight
1-3/8''
0.17lbs
1-5/8"
0.20 lbs
2"
0.22 lbs
2-1/2"
0.27 lbs
3"
0.33 lbs
3-1/2"
0.36 lbs
4"
0.42 lbs
6-5/8"
0.76 lbs
180 ° Brace Band
Size
Weight
2''
0.25 lbs
2-1/2"
0.27 lbs
3''
0.34 lbs
4''
0.50 lbs
Rail End Caps
Rail Size
Weight
1-5/8"
0.35 lbs
2"
0.39 lbs
45° Barb Wire Arm 6-Strand
Size
Weight
Fits 2 O.D. Post,1-5/8 Top Rail"
2.88 lbs
Fits 2-1/2 O.D. Post,1-5/8 Top Rail"
3.09 lbs
90 ° Brace Band
Size (O. D)
Weight
2"
0.26 lbs
2-1/2"
0.31
3"
0.38 lbs
Top Rail Sleeve
Size
Weight
1-3/8" x 6"
0.37 lbs
1-5/8" x 6"
0.52 lbs
2" x 7"
0.62 lbs

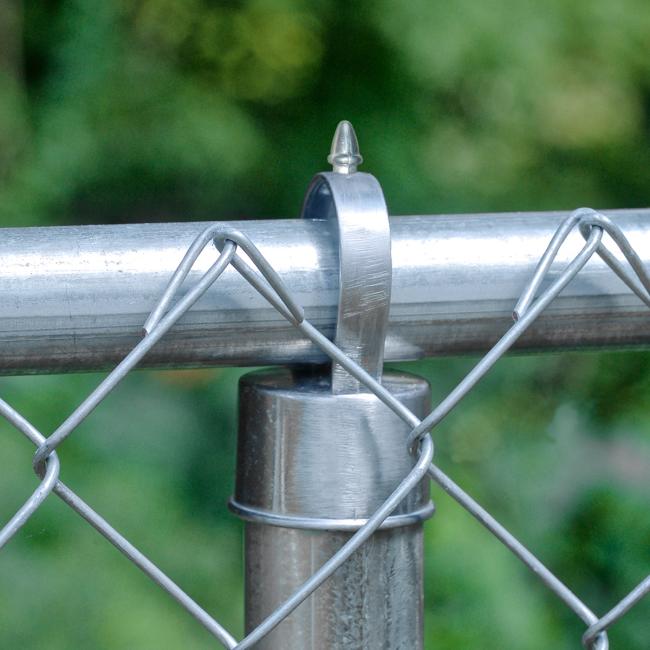

Loop Caps
(Post x Top rail ) size
Weight
1-5/8" x 1-3/8"
0.25 lbs
2" x 1-5/8"
0.30 lbs
2" x 1-5/8"
0.40 lbs
2-1/2" x 1-5/8"
0.55 lbs
3" x 1-5/8"
0.79 lbs
Post Caps
Post Size
Weight
1-3/8"
0.10 lbs
1-5/8"
0.15 lbs
2"
0.19 lbs
2-1/2"
0.25 lbs
3"
0.45 lbs
4"
0.90 lbs
6-5/8"
2.30 lbs
Male & Female Strap Hinge
Post Size
Weight
1-3/8"
0.58 lbs
1-5/8"
0.60 lbs
2"
0.67 lbs
2-1/2"
0.69 lbs
3"
1.15 lbs







Packaging & Shipping

Hot dip galvanized Iron Craft chain link fence hardware accessories/ fittings/ parts

It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;
It has 4 metal corners to keep the pallet more strong;
It has metal plate under the plastic bandage to reduce the apressure of fence panels;
It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

FAQ

1. High Quality Courtyard Sliding Gate Payment :

T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight

Or 30% deposit,70% L/C st sight

2. High Quality Courtyard Sliding Gate Delivery:

within 15 days after receiving the advance payment
