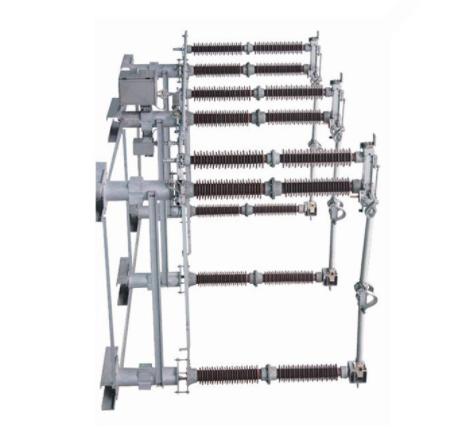

40.5-252kV 1250-4000A High Voltage Products IEC 62271-102 Outdoor
40.5-252kV. 1250-4000A IEC 62271-102 Outdoor AC Disconnector High Voltage Products
Technical
specificApplication: In rated voltage 40.5~252kV power system, to separating the circuits under off-load status, set up air electrical clearning between the tested electrical apparatuses and electrified circuit.
Standards: IEC 62271-102
Parameters: Rated voltage: 40.5-252kV.
Rated current: 1250-4000A.
Rated short time withstand current, 3s: 50kA.
Features: 1.Outstanding performances and reliable operation.
2.Free maintenance due to its stable contact pressure and self-cleaning capability.
3.High anticorrosion capability.
4.Easy installation and adjustment.
| Item | Unit | Parameter | ||||
| Rated voltage | kV | 40.5 | 126 | 145 | 252 | |
| Rated current | A | 2000 | 2000 | 2000 | 3150 | |
| Rated short time withstand current, 3s | kA | 40 | 40 | 40 | 50 | |
| Rated peak withstand current | kA | 80 | 100 | 100 | 125 | |
| Rated power frequency | to earth | kV | 95 | 230 | 275 | 460 |
| withstand voltage (rms) | Open contacts | kV | 110 | 230 + 70 | 315 | 460+145 |
| Rated lightning impulse | It' earth | kv | 185 | 550 | 650 | 1050 |
| withstand voltage (peak) | Open contacts | KV | 215 | 550+100 | 750 | 1050+200 |
| Rated tension of connecting terminal | Longitudinal | 750 | 1000 | 1000 | 1500 | |
| Horizontal | N | 400 | 750 | 750 | 1000 | |
| Vertical | 500 | 1000 | 1000 | 1250 | ||
| Min failing load | N | 4000 | 6000 | 6000 | 8000 | |
| ES induction Electromagnetic | Rated induction current | A | — | 50 | 80 | 80 |
| current coupling | Rated induction voltage | kV | — | 0.5 | 2 | 1.4 |
| switching Electrostatic capability coupling | Rated induction current A | — | 0.4 | 2 | 1.25 | |
| Rated induction voltage | kV | — | 3 | 6 | 5 | |
| Open/close bus switching circuit | A | — | 1600 | 1600 | 1600 | |
| Mechanical life | Time | 3000 | 3000 | 3000 | 3000 | |
| Single pole weight | kg | 80 | 240 | 300 | 650 | |
Features:
• Compact design
• All steel parts either in stainless steel or hot-dip galvanized
• Solid and stable base frame
• Main contact with icing protection
• Insulators available in porcelain or alternatively in silicone
• Minimal sag for the line-connection thanks to the two fixed terminals
• Completely maintenance antirust AL alloy -Arc chamber
• Switching-off procedure without external arc
• Short circuit making capacity under specific conditions possible
• Easy on-site installation and setting
• High reliability: up to 1’000 cycles (depending on the making current)
• All conducting parts either silver, nickel or tin-plated
• Practically maintenance-free
