Application
ZnO arrester is the latest over-voltage protective device, suitable for AC 48~62Hz, 35KV and below power system to limit the over voltage, protect the insulation of electric equipment from being destroyed by lightning voltage or switching over-voltage, it is one of important device to protect power system and ensure the safety of operation.
Features
The arrester adopts ZnO varistors with excellent volt-amps curves, compared with old arresters, its advantages is fast response, good steep wave, low residual voltage, large square-wave current, no continuous current, simple structure, light weight, high reliability, anti-pollution, easy maintenance and etc. Polymer type made of silicone rubber housing, no gap, good sealing performance, moisture resistant explosion proof, no risk of crack, especially suitable for switch cabinet.
standard : GB11032-2000 and JB/T8952-1999

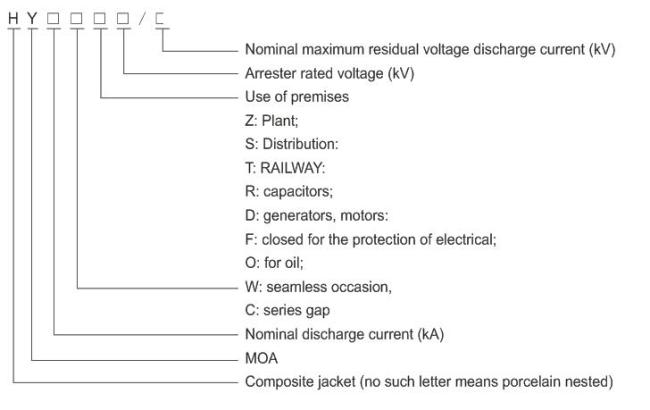

| Usage scenarios | Type | Rated voltage of arrester (RMS) | System Rated voltage (RMS) | Continuous nnRratinn vnltnai* (RMS) | DC (1mA) | Shock wave residual voltage | Opera tion | 2ms ps Rectangular current (peak) | |
| residual voltage | |||||||||
| Power station | HY5WZ-3.8/13.5 | 3.8 | 3.0 | 2.0 | 7.2 | 13.5 | 15.5 | 11.5 | 200 |
| HY5WZ-5/13.5 | 5.0 | 3.0 | 4.0 | 7.2 | 13.5 | 15.5 | 11.5 | 200 | |
| HY5WZ・7.6/27 | 7.6 | 6.0 | 4.0 | 14.4 | 27.0 | 31.0 | 23.0 | 200 | |
| HY5WZ-10/27 | 10.0 | 6.0 | 8.0 | 14.4 | 27.0 | 31.0 | 23.0 | 200 | |
| HY5WZ-12/32.4 | 12.0 | 9.6 | 17.4 | 32.4 | 37.2 | 27.6 | 200 | ||
| HY5WZ-15/40.5 | 15.0 | 12.0 | 21.8 | 40.5 | 46.5 | 34.5 | 200 | ||
| HY5WZ-12.7/45 | 12.7 | 10.0 | 6.6 | 24.0 | 45.0 | 51.8 | 38.3 | 200 | |
| HY5WZ-17/45 | 17.0 | 10.0 | 13.6 | 24.0 | 45.0 | 51.8 | 38.3 | 200 | |
| HY5WZ-42/134 | 42.0 | 35.0 | 23.4 | 73.0 | 134.0 | 154.0 | 114.0 | 400 | |
| HY5WZ-51/134 | 51.0 | 35.0 | 40.8 | 73.0 | 134.0 | 154.0 | 114.0 | 150 | |
