15W Surgical Laser Equipment PLDD Therapy Fiber Coupled Diode Laser

Berylas surgical laser , Easy, Portable, Affordble, Versatile Medical Laser

The Berylas medical laser equipment is the newest Class IV grade laser available in the medical marketplace today. It includes the optimal range of wavelengths, with interchangeable handpiece optics, this laser can be used to perform in dentistry, dermatology, endovenous laser treatment (EVLT), ENT, PLDD, DEEP Tissue Therapy, podiatry, hemorrhoids and so on.

High Quality Injection Mould Body Case

Integrated injection molding by high quality engineering plastics, provide the body case with high strength, not easy to break by impact or drop. The details are very good of high dimensional accuracy, High color saturation, high gloss.

Upgrade 30W(15wats+15watts Simultaneous), Meeting More Clinical Requirements

Breakthrough technology, the first upgrade to the 30W power, Berylas becomes the world's smallest high-power laser surgical equipment, to meet your broader laser surgery requirements.

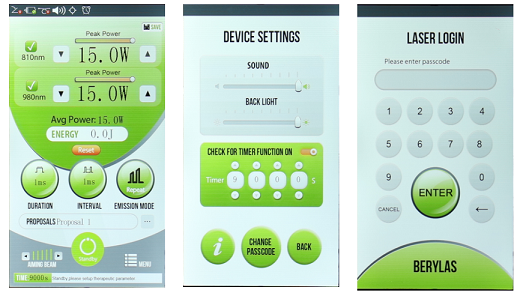

User-Friendly Medical Maser Of Large Color Touch Screen

Full color high resolution 600*1024 pixel, 7 inches LCD panel. The extra-large viewing area provides a smooth, quick and effortless touch experience, while guaranteeing reliability, readability and safety. The screen brightness can be customized and adjusted for each operating environment.

Heat Management

Through the most advanced and professional thermal design software for hundreds of thermal analysis simulation, Dimed discovered that Berylas medical laser achieved the amazing super function which can continue working at least 4 hours without overheating problem.

High Power Optimal Therapeutic/Surgical Wavelength

Each diode is wavelength specific and Berylas medical laser equipment provides a single or multi wavelength 650nm/ 810nm/940nm/980nm/1064nm to fully meet your needs for a variety of applications like spider vein removal, nail fungus treatment, dentistry, Percutaneous Laser Disc Decompression, laser pain relief, veterinary and so on.



Features
● Compact and modular design, mainly in silver aluminum alloy housing, portable and easy to move to different place.
● 7inch color touch screen, intuitive and user friendly operate interface.
● German diode and German laser technology
● Perfect heat management,support continue working without overheating problem.
● provides a single or multi wavelength 980nm/1470nm /1940nm
● Suitable for various surgery and therapy application: Endovenous laser ablation, ENT surgical intervention,PLDD,etc.
● Intelligent software, Flexible power adjustment range. Support custom settings for particular treatment.
● Support different operation mode: CW, Single or Repeat Pulse
● Medical fibers support with standard SMA905 Connector
● Providing a complete set of accessories


Technical Parameters
