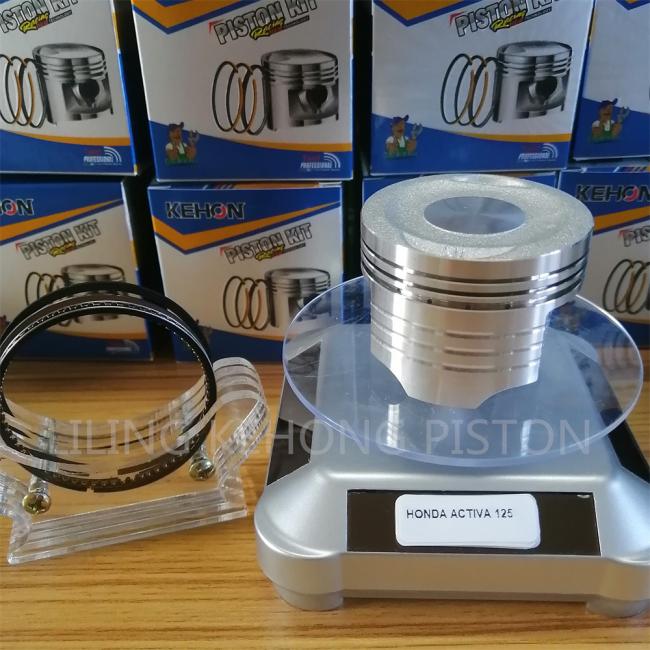

ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
52.4mm CLY DIA India Piston Rings Motor Engine Parts ACTIVA 125
Specification
Brand Name | LIDON |
| Place of Origin | Guangzhou, China |
| Product name | Motorcycle ACTIVA 125 Piston Kit |
| Quality | A class |
| Material | Aluminum Alloy |
| Color | As picture show |
| Application | Motorcycle Engine System |
| weight | 74g |
| Packing | Boxes+ Carton |
| CYL DIA | 52.4mm |
| Pin Size | 13*33mm |
| Shipment | Sea, Air, Express |
Description
Piston kits are included piston, piston pin and piston rings.
The piston diameter: 52.4mm
The piston pin diameter: 13mm
The length of piston pin: 33mm
The piston ring diameter: 52.4*0.8*0.8*1.5mm
Piston is the reciprocating part of the engine. It can be divided into top, head and skirt. The top of the piston is the main part of the combustion chamber, and its shape is related to the selected combustion chamber form. Gasoline engines mostly use flat-top pistons, which has the advantage of small heat absorption area. But for diesel engine, there are always various pits on the top piston, and their specific shape, position and size must be adapted to the requirements of diesel engine mixture formation and combustion.
Product Model
| ITEM NO. | MODEL | Piston Ring Diameter(mm) |
| 1 | BAJAJ 100 | 53*0.8*0.8*2.0 |
| 2 | BAJAJ 125 | 54*0.8*0.8*1.5 |
| 3 | BAJAJ 180 | 63.5*1.0*1.0*2.5 |
| 4 | BAJAJ 205 | 61*1.0*1.0*2.0 |
| 5 | BAJAJ COMPACT-BS4 | 63.5*1.0*1.0*2.0 |
| 6 | BAJAJ BOXER KB4S | 50*0.8*0.8*1.5 |
| 7 | BAJAJ CALIBER | 53*0.8*0.8*2.0 |
| 8 | BAJAJ PULSAR 180 | 63.5*1.0*1.0*2.5 |
| 9 | BAJAJ DISCOVER135 | 58*0.8*0.8*1.5 |
| 10 | BAJAJ DISCOVER150 | 56*0.8*0.8*1.5 |
