Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321
Quick Details:
Type: K
Brand: LEADKIN
Usage: for thermocouple making
Dia(mm): 0.25mm to 12.7mm
Sheath material: SS321(SS304), SS316
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan
Name:Mineral Insulated dia mineral cable type K in stainless steel sheath for thermocouple probe
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| SS310 Inconel600 | 0.5-1.0 | 500 | |||
| 1.5-3.2 | 800 | ||||
| 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | ||||
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 | ||||
| 4.0-8.0 | 800 | ||||
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II | |||
| Accuracy | Temp.Range | Accuracy | Temp.Range | ||
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | ||
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ | ||
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | ||
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ | |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ | ||
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ | |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ | ||
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ | |

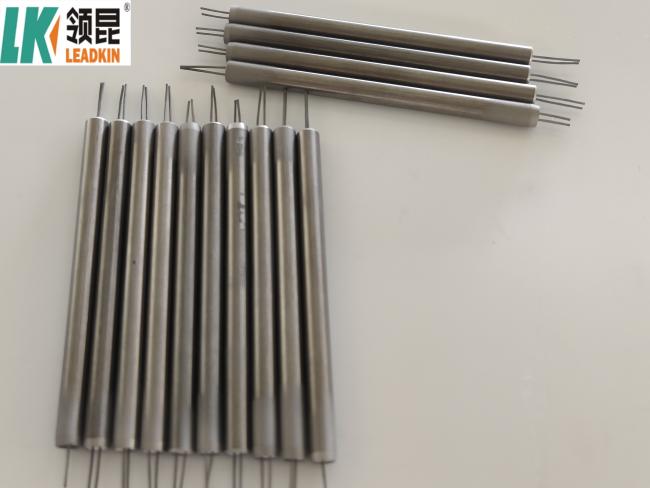

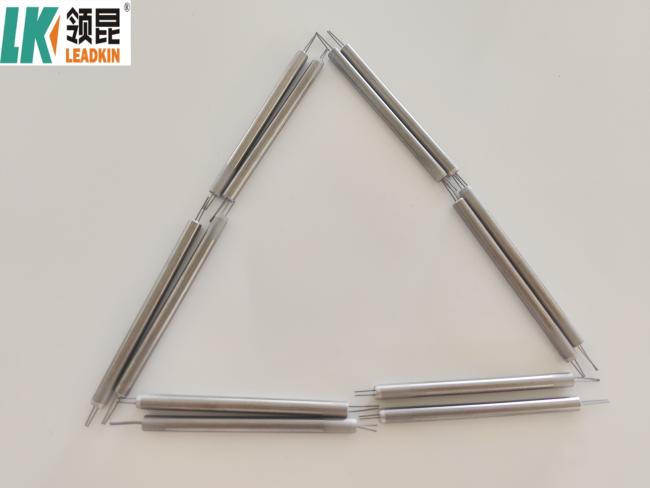

Product Pictures
Company Information:
A. Main Products

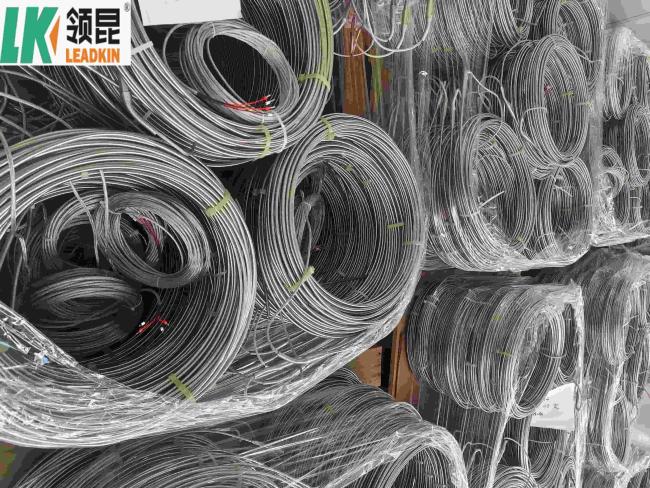

B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Exihibition
Product Advantage:
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement.
2:High temperature resistant Extension wire.
3:Probe length can be customized, probe can be bent.
4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring.
5:High Precision Temperature control probe .
6:Quick response.
