275V Power Board 6 Outlet
Lightning Protection For Bank Savings Offices, Offices, Monitoring Rooms And Various Types Of Electrical Equipment
Overview

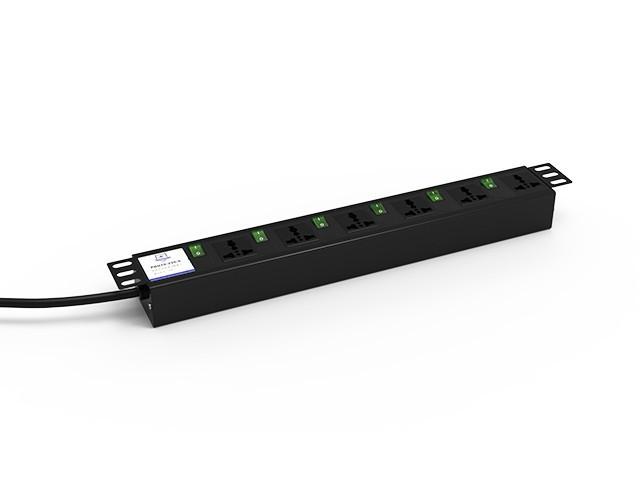

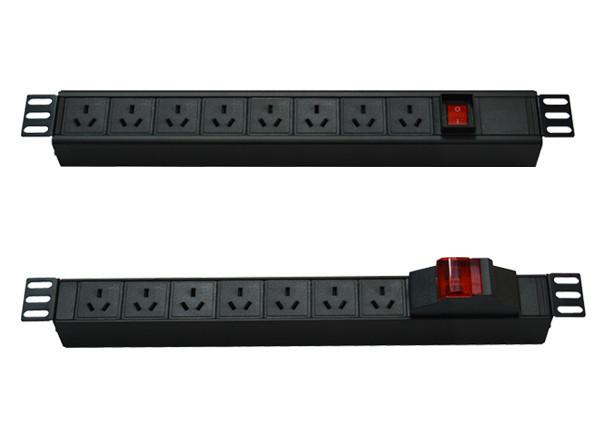

EPPJ10MS-8 rack-mounted power supply lightning protection socket is designed for rack-mounted power outlets with surge protection units installed on standard cabinets. Mainly used in the cabinet communications equipment, monitoring terminals and other important small distribution equipment refined lightning protection, to avoid damage to equipment caused by overvoltage and lightning induction. Use places such as: computer networks, precision equipment, small computer rooms, bank savings offices, offices, monitoring rooms and various types of power equipment power protection; equipped with multiple multi-purpose output jacks with fault indication.
Adopt precision protection circuit, core components selected from international ****, stable performance.
Large through-current capacity, low port clamp voltage, and sensitive response.
Easy installation, no special maintenance, long service life.
Aging thermal decoupling and short-circuit overcurrent decoupling, with visual warning indicator.
Technical parameters
Model
EPPJ10MS-8
Rated working voltage Un
220VAC
Rated working current
16A
**** Continuous working voltage Uc
275VAC
Nominal discharge current In(8/20μs)
3kA
**Maximum discharge current Imax(8/20μs)
6.5kA
Voltage protection level rise [L-PE/N-PE/]
1.0kV/1.0kV
Enclosure material
Black aluminum alloy and flame retardant plastic
Dimension specification
440mm×65mm×45mm
Functional features
Independent jack introduction structure, flame retardant and insulated
Working environment conditions
Temperature range: -40℃～+70℃ Humidity range. 30%～85% (25℃)
