Smart IoT K-A311D Motherboard with 5T computing power 4GB of RAM and 128GB of storage

Smart IoT K-A311D Motherboard with 5T computing power 4GB of RAM and 128GB of storage

K-A311D Motherboard Description:

1. 1. The K-A311D motherboard is based on the Amlogic A311D processor and has a built-in neural network processor with 5T computing power.
2. 2. It has rich interfaces and powerful hardware decoding capabilities, can be easily applied to self-service vending machines, intelligent interaction, industrial control equipment, etc.

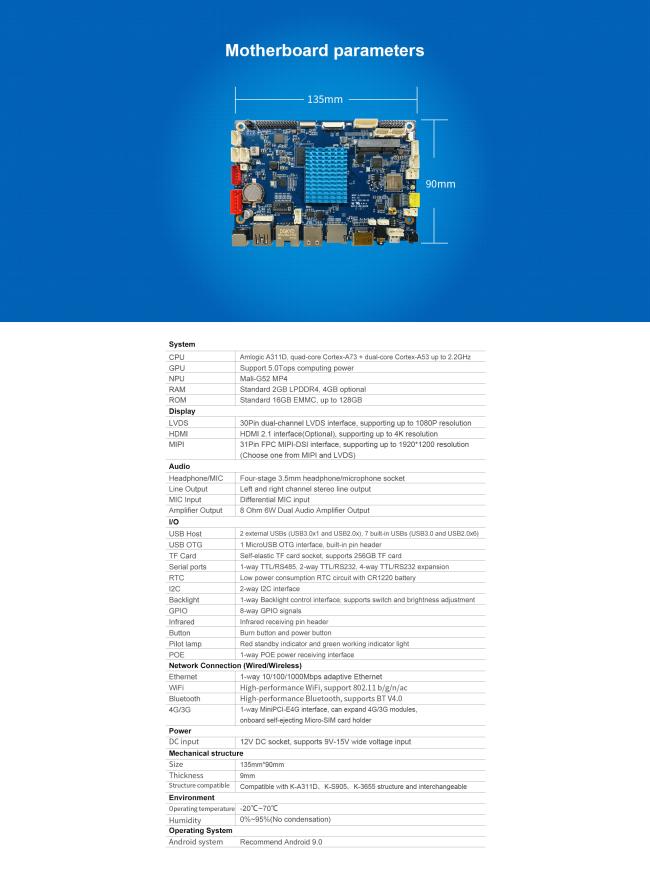

K-A311D Motherboard Parameters:

K-A311D Motherboard Features:

1. Processor: Equipped with an Amlogic A311D processor featuring four Cortex-A73 cores and two Cortex-A53 cores, with a maximum clock speed of up to 2.2GHz, supporting 5T AI computing power NPU.
2. Video Output: Supports LVDS/HDMI/MIPI output, with HDMI output capable of up to 4K resolution, perfectly supporting 4Kx2K@60fps decoding.
3. USB Ports: Supports 8 USB ports (1 USB 3.0, 7 USB host).
4. Serial Ports: Supports 7 serial ports (1 TTL/RS-485 compatible built-in, 2 TTL/RS-232 built-in, 4 extended TTL/RS-232 compatible built-in) and other rich expansion interfaces.
5. Network Connectivity: Supports Gigabit Ethernet, WiFi single band 2.4GHz, Bluetooth 5.0, 4G/5G expansion, and dual-screen display.
6. POE Power Supply: Supports IEEE 802.3af/at POE power supply.
7. Storage Interface: Supports SATA hard disk interface to meet the needs of storage expansion.
8. Operating System: Comes with Android 9.0 operating system, also supports Linux Buildroot/Debian/Ubuntu systems.
9. Video Codec: Supports Amlogic Video Engine (AVE-10), capable of decoding 75fps 4Kx2K resolution video, with a complete Trusted Video Path (TVP) for secure applications, and supports full-format, MJPEG streams, H.264, H265-10, VP9, and unlimited size JPEG images, including MVC, MPEG-1/2/4, VC-1/WMV, AVS, AVS+, AVS2 RealVideo.
10. Audio/Video Input/Output Interfaces: Integrates all standard audio/video input/output interfaces, including HDMI 2.1 transmitter supporting 3D, dynamic HDR, CEC, and HDCP 2.2, stereo audio DAC, CVBS output, 4-channel MIPI DSI interface, multiple TDM, PCM, I2S, and SPDIF digital audio input/output interfaces, and 8-channel far-field PDM digital microphone (DMIC) inputs.
