Guis 67 Universal joint Cross Bearing 56*173.9mm For Isuzu
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
12 days
Brand:
QRL
Product Description

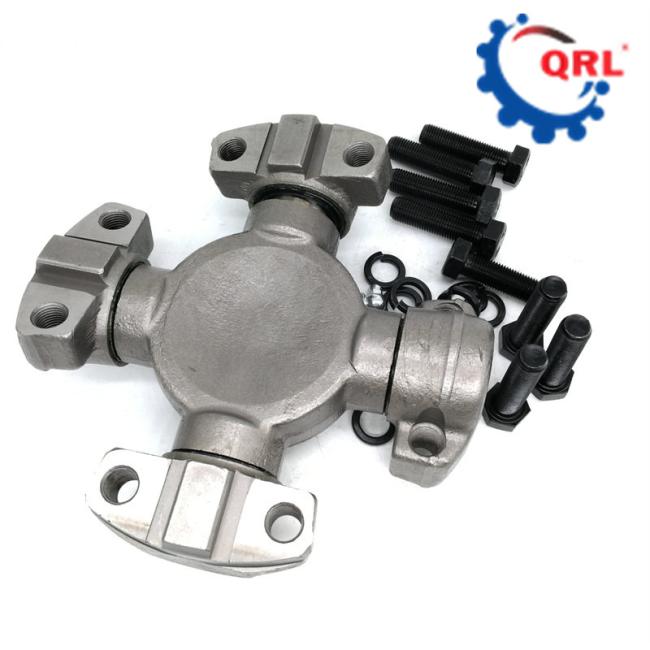

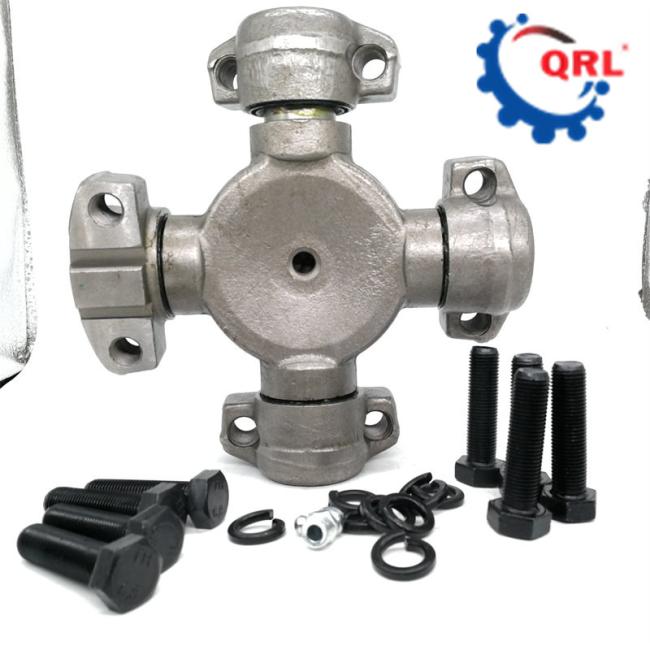

Guis 67 Universal Joint Cross Bearing 56*173.9mm For Isuzu
Universal Joint Bearing Specification
| Part No. | 1-37300-049-0 |
| OEM No. | GUIS-67 TIS-167 |
| Truck Model | ISUZU |
| Size | 56*174*140.24 mm |
| Material | Iron |
| Brand | QRL |
| Minimum Order Quantity (MOQ) | 10 PCS |
| Order Delivery Time | In Stock: 3-5 days/ Out of Stock: Negotiable |
Universal Joint Bearing Description
The failure of the universal joint of the transmission shaft is mainly caused by the wear of the journal and the bearing and the bending and deformation of each journal, which causes the center lines of the cross shafts to be not on the same plane, or the center lines of the adjacent two shafts are not vertical. Due to the excessive wear gap between the universal joint cross shaft journal and the bearing, the cross shaft will shake during operation, causing the center line of the transmission shaft to deviate from its rotation center line, causing the transmission shaft to vibrate and the transmission shaft to make abnormal noises during operation. Phenomenon. Wear is mainly caused by lack of lubrication.
Universal Joint Bearing Product number
| ISUZU | |||||||||
| NO. | FIG | ORIGINAL NO. | GMB NO. | ASSY SIZE | SNAP | NET | GROSS | ||
|
|
φ(D) | (O) | (L) | RINGS | WEIGHT | WEIGHT | |||
| m/m | m/m | m/m | |||||||
| 1 | C | 1-37300-069-0 | GUIS-72 | 42 | 115 | 2.0×46 | 1650 | 1700 | |
| 2 | B | 9-37300-017 | GUIS-51 | 28.82 | 61.3 | 1.5×27.4 | 300 | 310 | |
| 3 | F | 9-37300-065 | GUIS-52 | 29 | 53 | 1.5×31.0 | 540 | 550 | |
| 4 | K | 9-37300-150 | GUIS-55 | 42 | 125 | PLATE | 2000 | 2050 | |
| 5 | B | 9-37300-609 | GUIS-56 | 23.82 | 61.3 | 1.5×27.4 | 300 | 310 | |
| 6 | K | 9-37300-163 | GUIS-57 | 48 | 145 | PLATE | 3500 | 3600 | |
| 7 | K | 9-37300-112 | GUIS-58 | 36 | 97 | PLATE | 1270 | 1310 | |
| 8 | B | 44135-060 | GUIS-59 | 20.5 | 56.5 | 1.2×23.0 | 200 | 210 | |
| 9 | M | 9-37300-139-0 | GUIS-60 | 49.22 | 148.38 | 3200 | 3300 | ||
| 10 | B | 9-37300-031 | GUIS-61 | 23.82 | 61.3 | 1.5×27.4 | 300 | 310 | |
| 11 | C | 1-37300-0130 | GUIS-62 | 35 | 103.92 | 2.0×40.5 | 1150 | 1190 | |
| 12 | P | 94207232-1 | GUIS-63 | 22.06 | 59 | 270 | 280 | ||
| 13 | C | 1-37300-047-0 | GUIS-64 | 40 | 115 | 2.0×43.3 | 1510 | 1560 | |
| 14 | K | 1-37300-004-0 | GUIS-65 | 45.98 | 136 | PLATE | 2800 | 2900 | |
| 15 | C | 5-37300-032-0 | GUIS-66 | 33 | 93 | 2.1×35.5 | 850 | 890 | |
| 16 | M | 1-37300-049-0 | GUIS-67 | 56 | 174 | 3900 | 4000 | ||
| 17 | K | 1-37300-082-0 | GUIS-68 | 50 | 155 | PLATE | 3500 | 3600 | |
| 18 | B | 8-94376-373-0 | GUIS-69 | 27 | 81.75 | 1.5×30.0 | 500 | 520 | |
| 19 | F | 8-97071-811-0 | GUIS-70 | 29 | 53 | 1.5×31.0 | 540 | 550 | |
| 20 | F | 8-94238-930-1 | GUIS-71 | 29 | 53 | 1.5×31.0 | 540 | 580 | |
| 21 | C | 1-37300-102-0 | GUIS-72 | 42 | 115 | 2.0×46.0 | 1650 | 1700 | |
Universal Joint Bearing Delivery
Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.
