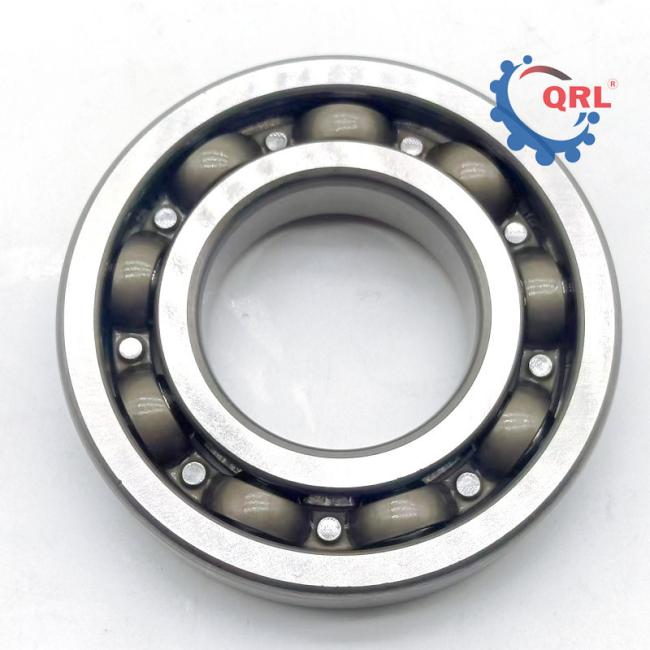

35BC07 S66 NC2 CS56 Deep Groove Ball Bearing Brand QRL Size 35X72X15MM
35BC07 S66 NC2 CS56 Deep Groove Ball Bearing Brand QRL Size 35X72X15MM
Deep Groove Ball Bearing Specification
| Diametro Interno | 35 |
| Diametro Esterno | 72 |
| Altezza | 15 |
| Weight | 0,28 |
| Codice OE | 91002KRM871 HONDA |
| Type | Cuscinetto A Sfere Ad Una Corona / Single Row Deep Groove Ball Bearing |
| Gabbia | Acciaio / Steel Cage |
| Gioco Interno | Cn Gioco Normale Interno |
Deep Groove Ball Bearing Description
Deep-groove types may have a flanged outer ring, special inner ring width, thin-walled cross-sections, or a special shape for synchros. These bearings can come open, sealed, or shielded. An assortment of models suit both general and special applications. Available in open, sealed, and shielded types.
Deep Groove Ball Bearing Product number
| Bearing NO | (mm)Boundary Dimensions | (Kn) | (Kn) | (r/min) | ||||
| Limit Rotational Speed | ||||||||
| d | D | B | Dynamic Load Rating | Static Load Rating | Grease Lubrication | Oil Lubrication | (Kg) | |
| Cr | Cor | Weight | ||||||
| 6900 | 10 | 22 | 6 | 2.7 | 1.27 | 32000 | 38000 | 0.01 |
| 6901 | 12 | 24 | 6 | 2.91 | 1.46 | 30000 | 36000 | 0.011 |
| 6902 | 15 | 28 | 7 | 4.35 | 2.26 | 26000 | 30000 | 0.016 |
| 6903 | 17 | 30 | 7 | 4.6 | 2.55 | 24000 | 28000 | 0.016 |
| 6904 | 20 | 37 | 9 | 6.4 | 3.7 | 19000 | 22000 | 0.0358 |
| 6905 | 25 | 42 | 9 | 7.05 | 4.55 | 16000 | 19000 | 0.0409 |
| 6906 | 30 | 47 | 9 | 7.25 | 5 | 14000 | 17000 | 0.0513 |
| 6907 | 35 | 55 | 10 | 10.6 | 7.25 | 12000 | 15000 | 0.078 |
| 6908 | 40 | 62 | 12 | 13.7 | 10 | 11000 | 13000 | 0.112 |
| 6909 | 45 | 68 | 12 | 14.1 | 10.9 | 9500 | 12000 | 0.14 |
| 6910 | 50 | 72 | 12 | 14.5 | 11.7 | 9000 | 11000 | 0.14 |
| 6911 | 55 | 80 | 13 | 16 | 13.3 | 8000 | 9500 | 0.179 |
| 6912 | 60 | 85 | 13 | 16.5 | 14.3 | 7500 | 9000 | 0.193 |
| 6913 | 65 | 90 | 13 | 17.4 | 16.1 | 7100 | 8500 | 0.206 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
