Deep Groove Ball Bearings 62/22 2RS 22X50X14MM Deep Groove Ball Thrust Bearing
Deep Groove Ball Bearings 62/22 2RS 22X50X14MM deep groove ball thrust bearing
Deep Groove Ball Bearing Specification

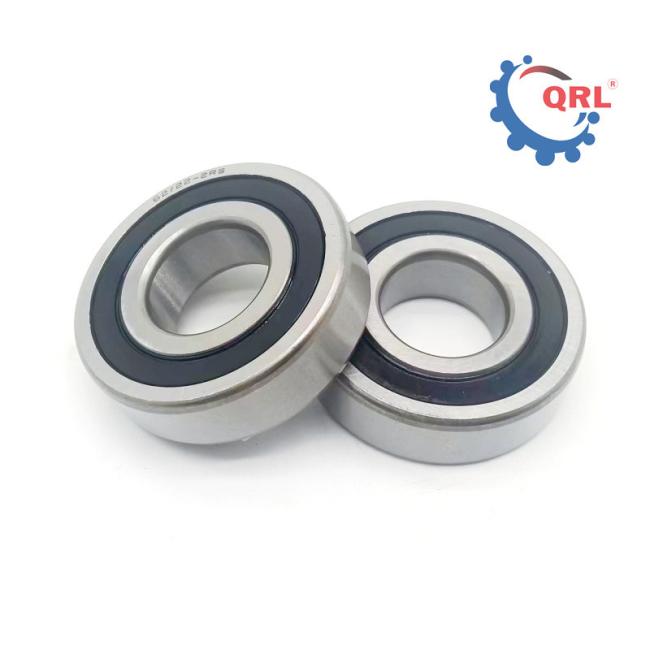

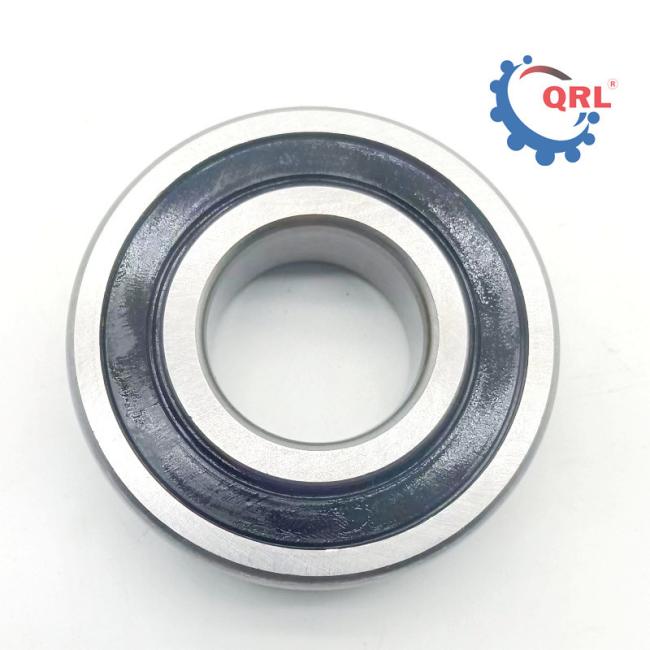

62/22 2RS C3 Ball Bearing
Manufacture : QRL / OEM
Suitable for a wide variety of applications including Motorcycle wheel bearings, agricultural machinery and most industrial purposes.
Also searched for as 62/22RDC3 62/22LLUC3
Deep Groove Ball Bearing Description
Deep-groove types may have a flanged outer ring, special inner ring width, thin-walled cross-sections, or a special shape for synchros. These bearings can come open, sealed, or shielded. An assortment of models suit both general and special applications. Available in open, sealed, and shielded types.
Deep Groove Ball Bearing Product number
| Bearing Designation | Size(mm) | Vibration value standard decibels (Db) | Clearance standard (um) without load | ||||||||
| d×D×W | Z | Z1 | Z2 | Z3 | Z4 | C1 | C2 | C3 | C4 | C5 | |
| 6000 | 10 × 26 × 8 | 43 | 42 | 38 | 33 | 0-7 | 2-13 | 8-23 | 14-29 | 20-37 | |
| 6001 | 12 × 28 × 8 | 44 | 43 | 39 | 34 | 0-9 | 3-18 | 11-25 | 18-33 | 25-45 | |
| 6002 | 15 × 32 × 9 | 45 | 44 | 40 | 35 | 0-9 | 3-18 | 11-25 | 18-33 | 25-45 | |
| 6003 | 17 × 35 × 10 | 46 | 44 | 40 | 35 | 0-9 | 3-18 | 11-25 | 18-33 | 25-45 | |
| 6004 | 20 × 42 × 12 | 47 | 45 | 41 | 36 | 0-10 | 5-20 | 13-28 | 20-36 | 28-48 | |
| 6005 | 25 × 47 × 12 | 48 | 46 | 42 | 38 | 1-11 | 5-20 | 13-28 | 23-41 | 30-53 | |
| 6006 | 30 × 55 × 13 | 49 | 47 | 43 | 39 | 1-11 | 5-20 | 13-28 | 23-41 | 30-53 | |
| 6007 | 35 × 52 × 17 | 51 | 49 | 45 | 41 | 1-11 | 6-23 | 15-33 | 28-46 | 40-64 | |
| 6008 | 40 × 68 × 15 | 53 | 51 | 45 | 42 | 1-11 | 6-23 | 15-33 | 28-46 | 40-64 | |
| 6009 | 45 × 75 × 16 | 55 | 53 | 48 | 45 | 1-11 | 6-23 | 18-36 | 30-51 | 45-73 | |
| 6010 | 50 × 80 × 16 | 57 | 54 | 50 | 47 | 1-15 | 8-28 | 23-43 | 38-61 | 55-90 | |
Deep Groove Ball Bearing Applications
Compressors, pumps, gearboxes and fans are amongst the many other machines that are reliant on deep groove ball bearings. In each case, however, the demands on the bearing may be very different.
