TIS 152 1A UNIVERSAL JOINT IS PICKUP 2004-2011 Weight 0.8kg For D-MAX 4X4
Price:
Negotiable
MOQ:
30
Delivery Time:
15days
Brand:
QRL
Product Description
TIS 152 1A UNIVERSAL JOINT IS PICKUP 2004-2011 , Weight 0.8kg For D-MAX 4X4
Universal Joint Bearing Specification
8-97942-846-1 (TIS-152-1A)_TOYO / 29-53/77 / CARDAN / CRUCETA / CHEVROLET D-MAX 4X4 - LUV 4X2 2.3L - LUV 2.0L - D-MAX 2.5L TFS54 - D-MAX 3.0L TFS77H / CRUCETAS / GUIS-52 /
Especificación:
Medidas: 29-53/77
Universal Joint Bearing Description

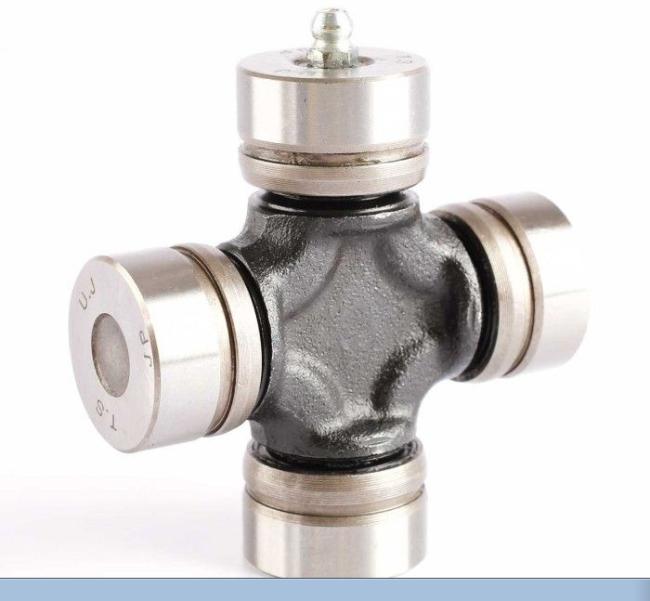

Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.
Universal Joint Bearing Product number
| ISUZU | ||||||||
| Type | Part No | D mm | O mm | L mm | Spice No | Original No | KOYO | MATSUBA |
| A | GUIS-51 | 23.82 | 61.3 | 9-37300-017 | 12461 | UJ313 | ||
| B | GUIS-52 | 29 | 50 | 9-37300-065 | 12976 | UJ314(324) | ||
| IA | GUIS-54 | 36 | 97 | K5-A523 | 9-37300-055 | 136101 | UJ311 | |
| IA | GUIS-55 | 42 | 125 | K5-A574 | 9-37300-150 | 142129A | UJ320 | |
| A | GUIS-56 | 23.82 | 61.3 | 9-37300-609 | 12461 | UJ323 | ||
| IA | GUIS-57 | 48 | 145 | K5-A582 | 9-37300-163 | 148149 | UJ321 | |
| IA | GUIS-58 | 36 | 97 | 9-37300-112 | 136101A | UJ312 | ||
| A | GUIS-59 | 20.5 | 56.6 | 44135-060 | UJ315 | |||
| G | GUIS-60 | 49.2 | 148.38 | 9-37300-139-0 | 070004AR-1 | UJ339 | ||
| A | GUIS-61 | 23.82 | 61.3 | 9-37300-031 | 12491 | UJ313 | ||
| A | GUIS-62 | 35 | 103.92 | K5-A567 | 1-37300-0130 | 1351041 | ||
| A | GUIS-63 | 22.06 | 62.5 | K5-A653 | 94207232-1 | |||
| A | GUIS-64 | 40 | 115 | K5-A639 | 1-37300-047-0 | |||
| IS | GUIS-65 | 45.98 | 136 | K5-A577 | 1-37300-004-0 | 146142WS | UJ340 | |
| A | GUIS-66 | 33 | 93 | K5-A679 | 5-37300-032-0 | 133931W | UJ325 | |
| G | GUIS-67 | 56 | 173.9 | 114-8209 | 1-37300-049-0 | |||
| IA | GUIS-68 | 50 | 155 | 1-37300-082-0 | ||||
| A | GUIS-69 | 27 | 81.75 | 8-97020-279-0 | ||||
| B | GUIS-70 | 29 | 49 | 8-97080-897-0 | ||||
| B | GUIS-71 | 29 | 49 | RUJ-2033 | 8-97180-697-0 | |||
| A | GUIS-72 | 42 | 115 | K5-A753 | ||||
Universal Joint Bearing Delivery
1) Avoid collision and stacking during disassembly, transportation and storage;
(2) The inertia of the vehicle should not be used to start the engine to avoid impact;
(3) Avoid lifting the clutch pedal sharply, and shift gears smoothly;
(4) When the vehicle is braked as far as possible, the transmission is in neutral or the clutch is in a disengaged state to prevent transmission overload;
(2) The inertia of the vehicle should not be used to start the engine to avoid impact;
(3) Avoid lifting the clutch pedal sharply, and shift gears smoothly;
(4) When the vehicle is braked as far as possible, the transmission is in neutral or the clutch is in a disengaged state to prevent transmission overload;
