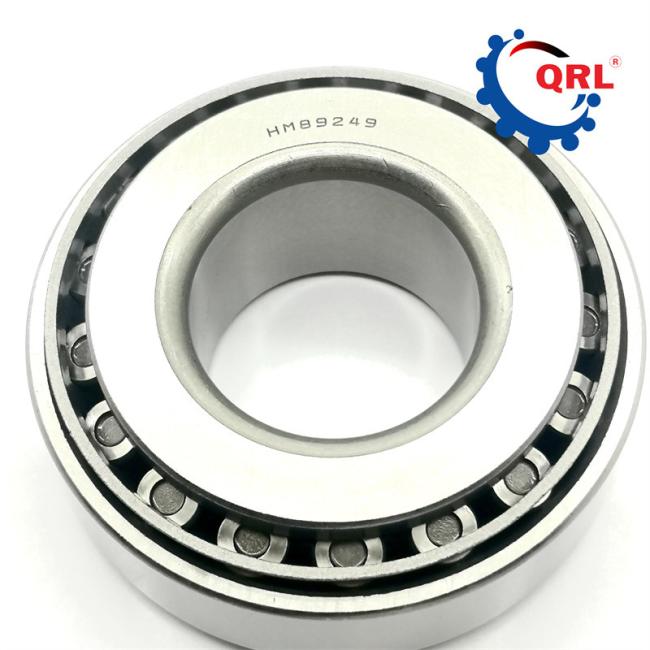

HM 89249/HM 89210 Tapered Roller Bearing 36.512 X 79.375 X 29.37MM
BEARING HM 89249/HM 89210 Tapered Roller Bearing 36.512 x 79.375 x 29.37.
Tapered Roller Bearing Specification
| d - Bore | 1 7/16 in 36.513 mm |
| D - Cup Outer Diameter | 3.1250 in 79.375 mm |
| B - Cone Width | 1.1350 in 28.829 mm |
| C - Cup Width | 0.8923 in 22.664 mm |
| T - Bearing Width | 1.1563 in 29.370 mm |
Taper Roller Bearing Description
Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| 30218 | 90 | 160 | 30 | 26 | 32.5 | 245 | 194 | 2000 | 3000 | 2.55 |
| 32218 | 90 | 160 | 40 | 34 | 42.5 | 362 | 262.5 | 2200 | 3000 | 3.51 |
| 32019X | 95 | 145 | 32 | 24 | 32 | 280.1 | 173 | 2300 | 3100 | 1.89 |
| 33019 | 95 | 145 | 39 | 46 | 39 | 350 | 211.6 | 2300 | 3100 | 2.315 |
| 32219 | 95 | 170 | 43 | 37 | 45.5 | 390 | 281 | 1900 | 2800 | 4.05 |
| 31319(30319D) | 95 | 200 | 45 | 32 | 49.5 | 355 | 298.3 | 1700 | 2200 | 6.95 |
| 32020L | 100 | 150 | 29 | 25 | 32 | 251.5 | 163.8 | 2200 | 3000 | 1.81 |
| 33020 | 100 | 150 | 39 | 32.5 | 39 | 375 | 230 | 2200 | 3200 | 2.4 |
| 32220 | 100 | 180 | 46 | 39 | 49 | 465 | 331 | 2000 | 2700 | 4.92 |
| 32220J2 | 100 | 180 | 63 | 48 | 63 | 660 | 430 | 2,650 | 3,900 | 6.77 |
| 33021 | 105 | 160 | 43 | 34 | 43 | 430 | 246 | 1900 | 2800 | 3.05 |
| 3022X/105 (SKF=3311260 Q FERSA=F 15076) | 105 | 170 | 38 | 29 | 38 | 388 | 236 | 2000 | 2700 | 3.32 |
| 31322XJ2 | 110 | 240 | 57 | 38 | 63 | 590 | 465 | 2,240 | 2,800 | 12.3 |
| 32022X | 110 | 170 | 38 | 29 | 38 | 388 | 236 | 200 | 2700 | 3.07 |
| 33022 | 110 | 170 | 47 | 37 | 47 | 500 | 281 | 1800 | 2600 | 3.85 |
| 32222 | 110 | 200 | 53 | 46 | 56 | 605.8 | 419.1 | 1800 | 2400 | 7.14 |
| 32322 | 110 | 240 | 80 | 65 | 84.5 | 1020 | 740 | 2,050 | 2,800 | 19 |
| 32024-X | 120 | 180 | 38 | 29 | 38 | 420 | 250 | 2,460 | 3,650 | 3.29 |
| 31324XJ2 | 120 | 260 | 62 | 42 | 68 | 700 | 540 | 2,010 | 2,500 | 15.4 |
Taper Roller Bearings Applications
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including double-end face grinding machine etc., flaw detector...In addition, we have obtained ISO9001: 2008 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Middle East, Africa and Southeast Asian.
