Bearing Main Reducer MB005154 MH043157 Mitsubishi 4D32 4D34 Tapered Roller Bearing
Bearing main reducer MB005154 MH043157 Mitsubishi 4D32 4D34 Tapered Roller Bearing
Tapered Roller Bearing Specification
Inch Taper Roller Bearing Description

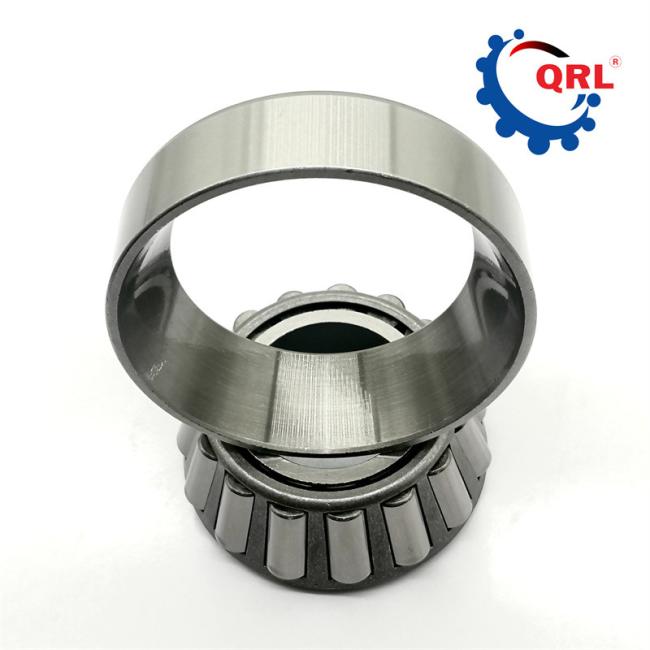

The bearing consists of two rings (inner and outer) and rolling elements (tapered rollers) which are connected by a cage. The inner ring with a cage and rolling elements is a CONE. The outer ring is a CUP.
The design of tapered roller bearings suites for the perception of combined (radial and axial) loads. Tapered roller bearings have a split construction: the inner ring with the rollers and separator create the unit, that can be mounted separately from the outer ring.
Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS | ||||||
| d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) | |
| LM 102949 / LM 102910 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 76 | 54 | 4800 | 6400 | 0.307 |
| LM 603049 / LM 2603011 | 45.242 | 77.788 | 19.842 | 15.08 | 19.842 | 70.3 | 55.3 | 5850 | 7500 | 0.37 |
| HM 204049 / HM 204010 | 45.987 | 90.975 | 32 | 26.5 | 32 | 150.5 | 119.1 | 4300 | 5600 | 0.94 |
| 359-S/354X | 46.038 | 85 | 21.692 | 17.462 | 20.635 | 89.5 | 76.1 | 4400 | 5800 | 0.49 |
| HM 804846 / HM 804810 | 47.625 | 95.25 | 29.37 | 23.02 | 30.162 | 140 | 104.3 | 4000 | 5300 | 0.98 |
| 528/522 | 47.625 | 101.6 | 36.068 | 26.988 | 34.925 | 169 | 137.3 | 3800 | 5000 | 1.29 |
| CK 50 K / 3720 | 50 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.87 |
| JW 5049 / JW 5010 | 50 | 105 | 29 | 22 | 32 | 145.5 | 114.3 | 3400 | 4500 | 1.23 |
| 370A / 362A | 50.8 | 88.9 | 22.225 | 16.513 | 20.638 | 91 | 76.5 | 4300 | 5600 | 0.51 |
| 28580 / 25821 | 50.8 | 92.075 | 25.4 | 19.845 | 24.607 | 116.1 | 84.2 | 4000 | 5300 | 0.7 |
| 455/452 | 50.8 | 107.95 | 29.317 | 27 | 32.557 | 148 | 115 | 3500 | 4700 | 1.34 |
| 3780 / 3720 | 50.8 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.84 |
| 33889 / 33822 | 50.8 | 95.25 | 28.575 | 22.225 | 27.783 | 140 | 107.3 | 3900 | 5200 | 0.88 |
Taper Roller Bearings Applications
