GUM-75 Universal Joint Bearing 0.67KG 102.00X31.75mm TS16949 Certificated
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
15 days
Brand:
QRL
Product Description

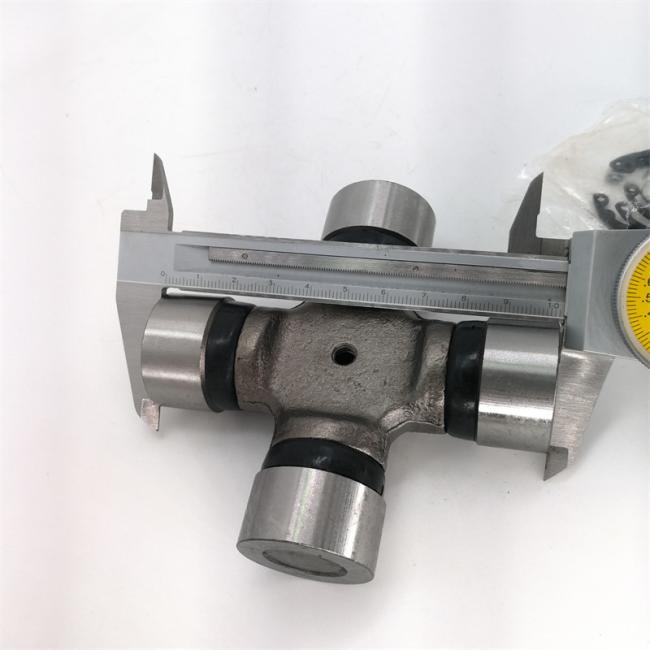

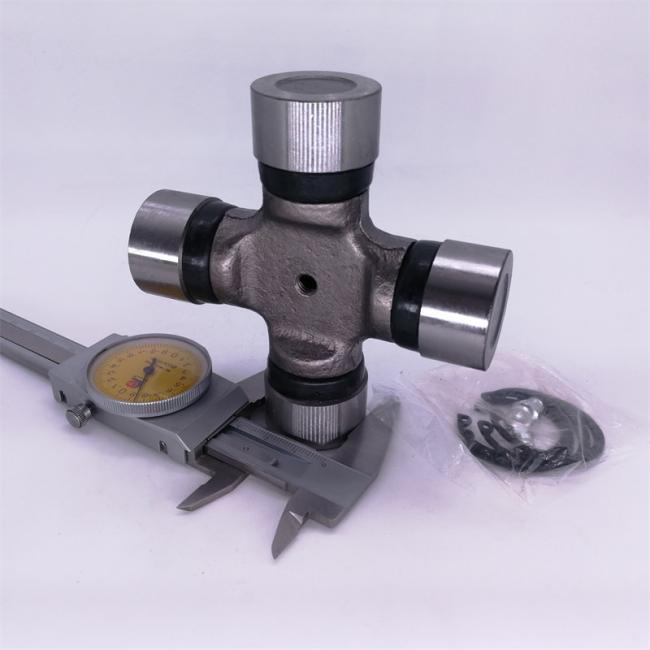

GUM-75 Universal Joint Bearing MITSUBISHI CANTER A3 102.00X31.75MM
Universal Joint Bearing Specification
| Product: | Universal joint cross bearing 102.00X31.75MM universal joint |
| Item: | GUM-75 |
| Raw Material: | 20Cr or 20CrMnTi |
| Payment: | T/T, L/C, Western Union Etc. |
| Delivery Date: | 30 Days |
| Certificate: | TS16949 |
| Packing Details: | Inner packing: Plastic Bags, White or Color Individal Boxes. |
| Outer Packing: Wooden Boxes or Carton Boxes. | |
| Container Load: 20 Tons. |
Universal Joint Bearing Description
Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.
Universal Joint Bearing Product number
| NO. | FIG | ORIGINAL NO. | GMB NO. | ASSY SIZE | SNAP | NET | GROSS | ||
| φ(D) | (O) | (L) | RINGS | WEIGHT | WEIGHT | ||||
| m/m | m/m | m/m | |||||||
| TM-171 | K | 14501-27000 | GUM-71 | 44 | 129 | PLATE | 2450 | 2500 | |
| TM-172 | C | 13518-22000 | GUM-72 | 36 | 104 | 2.5×40.0 | 1100 | 1140 | |
| TM-173 | K | GPW18397 | GUM-73 | 27 | 81.75 | 1.5×30.0 | 460 | 470 | |
| TM-175 | G | MB-000154 | GUM-75 | 31.78 | 102 | 1.2×34.40 | 850 | 880 | |
| TM-176 | B | 13018-21200 | GUM-76 | 25 | 77.8 | 1.2×28.0 | 420 | 430 | |
| TM-177 | D | ST-0008 | GUM-77 | 27 | 65.3 | 1.5×29.10 | 380 | 390 | |
| TM-178 | D | ST-0003 | GUM-78 | 25 | 63.8 | 1.35×28.0 | 320 | 330 | |
| TM-179 | D | ST-00024 | GUM-79 | 25 | 63.8 | 1.35×28.0 | 320 | 330 | |
| TM-180 | K | 12018-01110 | GUM-80 | 46 | 142 | PLATE | 2800 | 2850 | |
| TM-181 | D | MB-00345 | GUM-81 | 25 | 63.8 | 1.35×28.0 | 320 | 330 | |
| TM-182 | O | 13501-11010 | GUM-82 | 38 | 104 | 2.5×43.0 | 1100 | 1140 | |
| TM-183 | K | 12019-10000 | GUM-83 | 52 | 153.85 | PLATE | 4000 | 4100 | |
| TM-184 | D | 18433-51700 | GUM-84 | 26 | 68 | 1.35×28.0 | 460 | 470 | |
| TM-185 | P | MB000300 | GUM-85 | 22.06 | 62 | KIKU STOPPER | 330 | 340 | |
| TM-186 | D | MT047756 | GUM-86 | 28.5 | 77.9 | 1.5×31.0 | 490 | 500 | |
| TM-187 | C | MB000199 | GUM-87 | 30 | 78.1 | 1.2×32.1 | 540 | 550 | |
| TM-188 | B | MB000776(0008) | GUM-88 | 25 | 76.5 | 1.5×28.0 | 430 | 440 | |
Universal Joint Bearing Delivery
Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.
