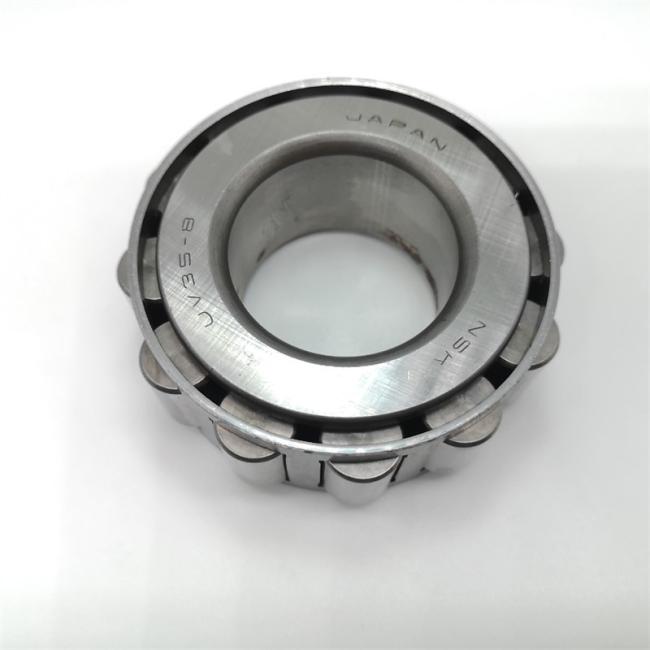

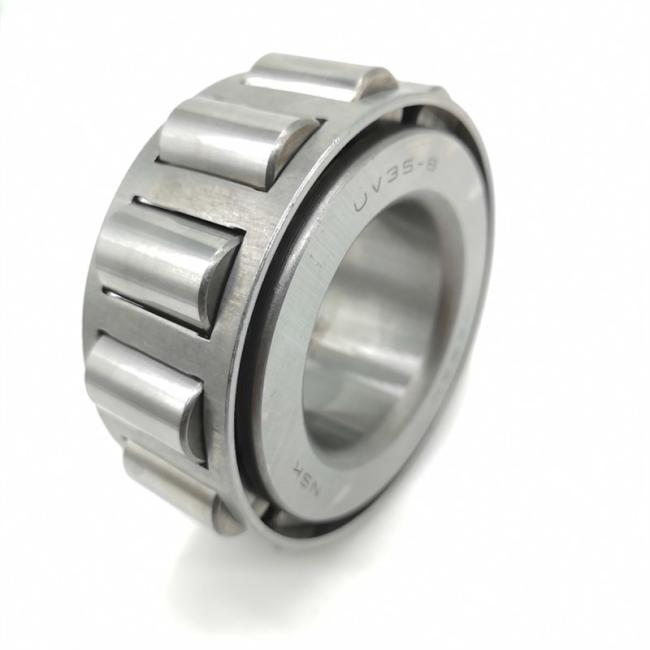

HTF 045-7 Cylindrical Roller Bearing UV35-8 Single Row Special Bearings
Cylindrical roller bearing UV35-8 special roller bearing
Cylindrical Roller Bearing Specification
| Raceway Ring Shape | Cylindrical Roller | Load Direction | Radial |
| Outer Ring | With Outer 5Ring | I.D.(Ø) | 35 |
| O.D.(Ø) | 70 | Width(mm) | 27 |
| Inner/Outer Ring Material | [Steel] Steel | Precision (JIS) | Grade 0 |
| Number of Raceway Ring Rows | Single Row | Size Standards | Metric System |
| Specifications | Standard | Rolling Element Material | [Steel] Steel |
Cylindrical Roller Bearing Description
The rollers in a single row cylindrical roller bearing are always guided between the integral flanges on one of the rings. These flanges combined with special designed and surface finished roller ends, provide improved lubrication, reduced friction and consequently lower operating temperature. The outer ring of an NU design bearing has two integral flanges while innner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions. NU design bearings are normally selectes as locating bearings.
Cylindrical Roller Bearing Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | MASS | ||
| d | D | T | (~ Kg.) | |
| NJ2205-3VHSH | 25 | 52 | 20.6 | |
| RLSI82205 | 25 | 46.52 | 18 | |
| SC050615V | 25 | 62 | 15.5 | |
| SC050617CV3 | 25 | 62 | 17 | |
| SC050621V | 25 | 62 | 21 | |
| CBK258-171 | 23 | 52 | 15 | |
| 06NF0824-23NC3 | 30 | 80 | 24 | |
| 06NU0721VH | 30 | 72 | 21 | |
| 06NUP0618 | 30 | 62 | 18 | 0.243 |
| 06NUP0820ANRS0C3 | 35 | 75 | 20 | 0.44 |
| AG503001 | 30 | 49 | 20 | |
| CBK239 | 30 | 62 | 19 | |
| F-201346 | 50 | 90 | 23 | |
| F-204045 | 30 | 62 | 16 | |
| NJ206EXICS42 | 30 | 60 | 16 | |
| RSLI82206 | 30 | 55.19 | 20 | |
| UV30-5 | 30 | 57.5 | 27 | |
| UV30-6A | 30 | 57.5 | 21 | |
| UV30-8 | 30 | 57.5 | 21 | |
Cylindrical Roller Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
