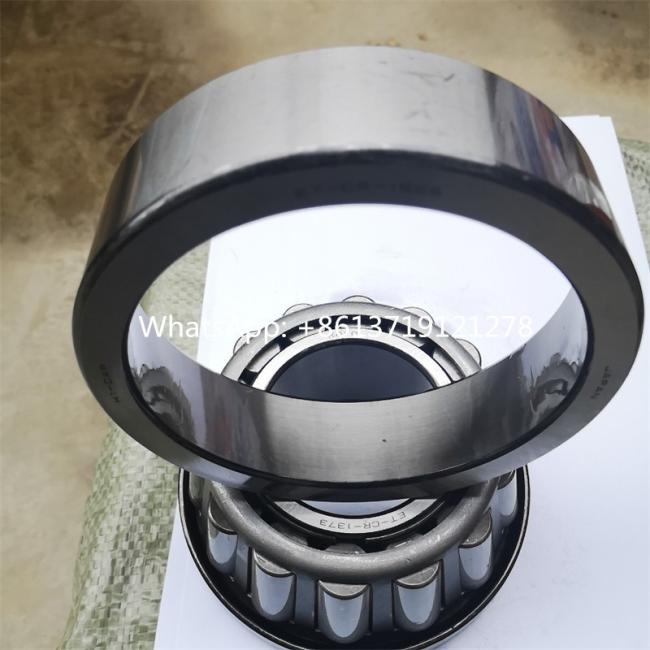

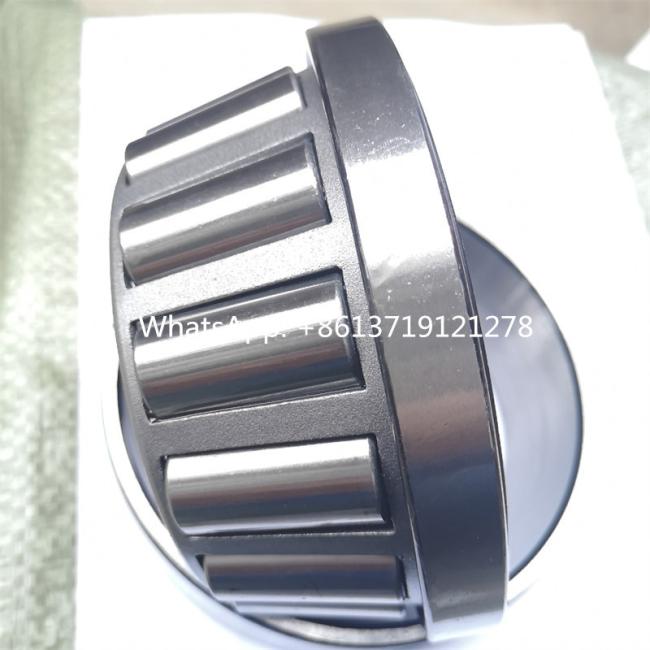

ET-CR-1373/CR-1555 Radial Taper Roller Bearings 65X140X59
Bearing 57518/TR1312/1YD Tapered Roller Bearings Size 69,85x116,98x63,88
Tapered Roller Bearing Specification
| Main dimensions: | ||||||||||||||||
|
||||||||||||||||
Taper Roller Bearing Description
Tapered roller bearings are used in a variety of industrial applications. The tapered rollers allow the bearings to accommodate heavy radial, axial and combination loads. This loading flexibility combined with a variety of configurations can be designed from single cups, double cups, and cones. This is why tapered roller bearings are designed into almost every industry, particularly large diameter tapered roller bearings.
Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS | ||||||
| d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) | |
| 72212 / 72487 | 53.975 | 123.825 | 32.791 | 25.4 | 36.512 | 165 | 145 | 2850 | 4000 | 2.03 |
| JW 5549/JW5510 | 55 | 115 | 31 | 23.5 | 34 | 161.9 | 126 | 3000 | 4000 | 1.558 |
| 387 / 382 | 57.15 | 98.425 | 21.945 | 17.825 | 21 | 102 | 80.9 | 3800 | 5000 | 0.63 |
| 462 A / 453 X | 57.15 | 104.775 | 29.317 | 24.605 | 30.162 | 148 | 115 | 3500 | 4700 | 1.05 |
| 39580 / 39520 | 57.15 | 112.712 | 30.162 | 23.812 | 30.162 | 204.2 | 144 | 3200 | 4300 | 1.44 |
| 39581/39520 | 57.15 | 112.712 | 30.162 | 23.812 | 30.162 | 204.2 | 144 | 3200 | 4300 | 1.4 |
| 78225C / 78551 | 57.15 | 140.03 | 33.236 | 23.52 | 36.513 | 211.7 | 170.9 | 2600 | 3400 | 2.69 |
| JF 6049 / JF6010 (T 2EE 060) | 60 | 115 | 39 | 33 | 40 | 260.3 | 194.1 | 3200 | 4300 | 1.85 |
| 392/394A | 61.913 | 111 | 21.996 | 18.824 | 22 | 113.7 | 85.3 | 3200 | 4300 | 0.87 |
| L 910349 / L 910310 | 63.485 | 94.975 | 15.5 | 12 | 17 | 56.6 | 38.4 | 3600 | 4800 | 0.375 |
| 395/394A | 63.5 | 110 | 21.996 | 18.824 | 22 | 113.7 | 85.3 | 3200 | 4300 | 0.81 |
| 3982X 3927 XSXI | 63.5 | 110 | 30.048 | 23.02 | 29.37 | 174.7 | 118.9 | 4000 | 5300 | 1.1 |
Taper Roller Bearings Applications
1. material: chrome steel (GCR-15), bearing steel
2. size: 40*80mm
3. packing: single box
4. shipping: by sea, by air, by railways
5. payment term: T/T, L/C, Western union and so on
6. delivery time: 3-30 days after order confirmed (according to the quantity)
