Ba Cold Rolled Steel Expanded Sheet Metal 201 304 316L Material
Price:
USD 800-3500 USD/TON
MOQ:
1 ton
Delivery Time:
5-15 DAYS
Brand:
BAOWANG
Product Description
2B Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface.
BA surface finished is Bright heat treatment after cold rolling.
No.4, also called #4, satin or directional finish, is an unidirectional finish obtained with a 100-400 grit abrasive depending on requirements. High grit numbers create finer polishing lines and more reflective finishes.
Hairline referred to as "the HL",it’s grain as fine as hair, straight and continuous, delicate with oil paints on the surface. It has slightly lower reflective rate than satin stainless steel.
Mirror finish is produced by progressively using finer abrasives and finishing with extremely fine buffing compounds. Mirror finish is also called 8K, No.8 and polish finish, which is the most reflective mirror finish with high quality to similar as glass mirror. The final surface is blemish free with a high degree of image clarity and is the true mirror finish.
| Surface Finish | Definition | Application | |
| 2B | Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface. | With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on. | |
| BA | Bright heat treatment after cold rolling. | Structual members .etc.kitchen utensil ,cutlery ,eleltric applicances ,medical instruments ,building decorations ,etc. | |
| NO.3/NO.4 | Polished with No.150-240 abrasives. | Milky food processing equipment , medicalinstruments ,building decorations. | |
| HL | Finshed by polishing with abrasives of suitable grain size to obtain continuous streaks. | Building decorations ,such as elevators ,escalators ,door etc. | |
| 6K/8K | A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all gritlines are removed. | Buliding entrances,bulkding column casting ,elevator's wall doors ,counters,sculptures etc. | |

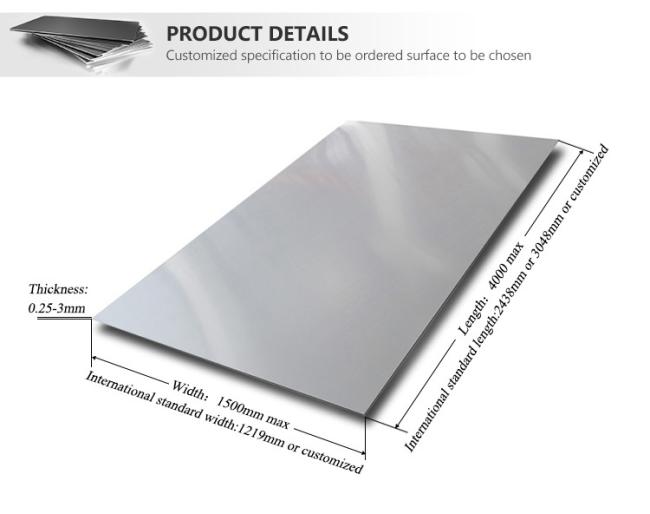

| Stainless Steel Coil/Sheet/Plate Information | |||||||||||
| Technique | Surface Finish | Grade Series | Thickness(mm) | Width(mm) | Application | ||||||
| Main Dimension | |||||||||||
| 20-850 | 1000 | 1219 | 1240 | 1250 | 1500 | Petro-chemical industry,Tanks Construction material |
|||||
| Hot Rolled | No.1 / 2E | 201/202/ 304 |
2.2-12.0 | √ | √ | √ | √ | √ | |||
| Cold Rolled | 2B | 201/304 | 0.25-3.0 | √ | √ | √ | √ | √ | √ | ||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | ||||||
| No.4 / Hairline Mirror / Linen SB |
201/304 | 0.22-3.0 | √ | √ | √ | √ | √ | ||||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | √ | |||||
| BA | 201/304 | 0.2--1.8 | √ | √ | √ | √ | |||||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | ||||||
| 2BA | √ | √ | √ | √ | |||||||
| Chemical composition and mechanical properties of stainless steel coils | |||||||||
| Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 |
