CP9542 Original 380x28mm Rotor Brake Caliper For Maserati Levante

Price Negotiable
Price: Factory Price
MOQ: 1set
Delivery Time: 5-7 days
Brand: Jekit
Product Description

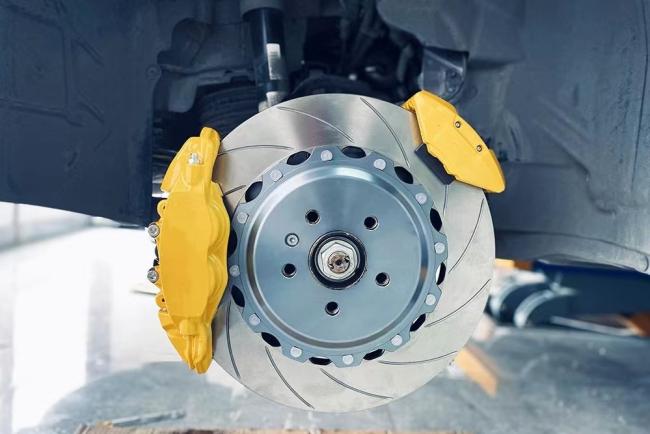

Jekit CP9542 Original Brake Caliper 380x28mm For Maserati Levante



About Brake caliper

In the street kit, the caliper will be equipped with dust cover to prevent foreign particles from damaging the piston. In addition, it is also equipped with anti noise shrapnel to fix the brake skin to reduce the noise during daily use. In addition, there is the biggest difference from the competitive version. The competitive calipers usually can not prevent corrosion through long-term maintenance, so corrosion has become a big problem. Anti corrosion and rust prevention is very important for street calipers, so Street calipers generally use special high-temperature resistant coating to protect aluminum alloy calipers. Many people can't tell the difference between dust cover and sealing rubber ring. Here's a popular science. All calipers are equipped with oil seals to ensure the tightness of brake fluid, while dust cover (dirt seals) only exists in streets and calipers. In high temperature environment, because the dust boot is made of rubber, it will oxidize and deform, which will affect the normal operation of the piston.



Generally speaking, competitive calipers are not suitable for daily use. The same street calipers should not be used for sports or track. Therefore, some people think that competitive calipers have the best performance, and it is wrong to recommend competitive calipers, This depends on the usage scenario



Refitting the brake system not only greatly improves the appearance appearance, but also has an immediate effect on improving the braking performance, which can make the owner drive safer.



Applications:
- Performance Road Rear.

Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø380mm Max or 356mm Min x 32mm max or 28mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.



Product

Brake Pad Information
(To view an image of the pad
click on Pad Part No)
6600D55

- Pad Area = 64.6cm²
- Pad Depth = 55.0mm
- Thickness = 16.75mm
CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm 27.0 x 4
Piston Area - cm² 22.9
Disc Diameter - mm 380.0
Disc Thicknesses - CP9542-2/3/4/5 = 32.0
- CP9542-6/7/8/9 = 28.0
Weight (No Pads) - Kg 3.25
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 195.0
Mounting Offset - mm - CP9542-2/3/4/5 = 36.0
- CP9542-6/7/8/9 = 34.0
Mounting Hole Ø - mm 12.1
PL Dimension - mm 55.0
Bleed Screw Tightening Torque - Nm 17
CALIPER SPARES
Pistons Ø27.0mm x 4 = CP7555-106
Seal Repair Kits CP4527-CC
