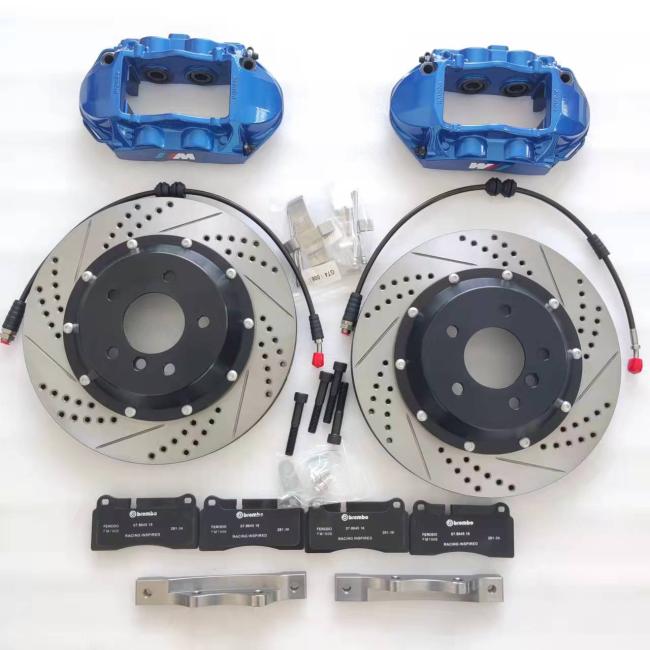

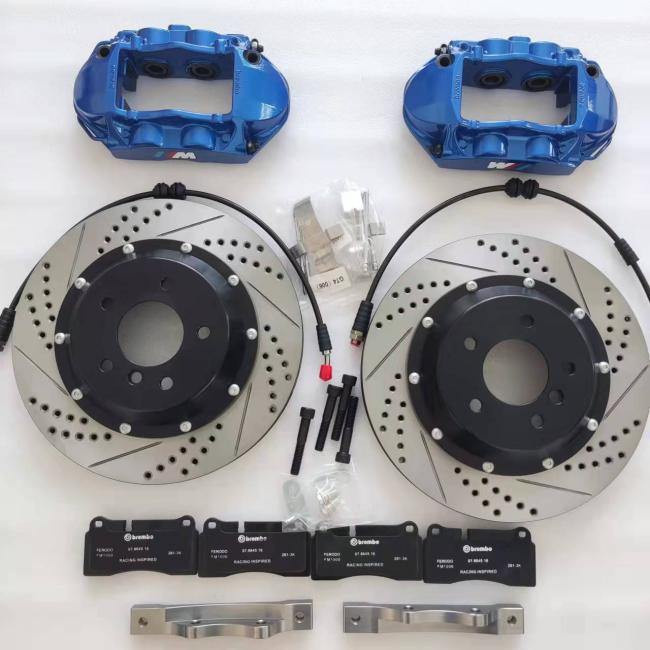

Blue 4 Pot Brake Kit Rear Aluminum Bracket For Bmw E70 18IN
Blue 4 Pot Brake Kit Rear Aluminum Bracket For Bmw E70 18IN Rear
Feature:
Disc size/mm :330*28,355*28,362*28,380*28
Fit front or rear wheel Size:17in,18in,19in,20in
Function:50% Improve Brake Performance
Caliper:
Material:One-piece Forged Body
Craft: Aerial 6082 Aluminum Alloy
Piston: 4 big pistons,Made of Aluminum Alloy
Finish Treatment:High-temperature Baking Coating
Brake pad:
Material: Ceramic graphite
Heat-resistant: 0-500 ℃
Friction Coefficient: 0.49
Rotor (disc+center bell):
Craft: By Forging
Plane Bounce: <0.03mm
Material:
1.Disc:High Carbon Iron HT250
2.Center bell : Aerial 6061 Aluminum Alloy
Bracket:
Material: Aerial 6061 Aluminum Alloy
Craft: By Forging
Brake hose:
Material: Inside special rubber; Outside wrapped with steel cover knitted by steel wires
Brake line
Material: Inside special rubber; Outside wrapped with steel cover knitted by steel wires
Product introduction
| tem name | 4 piston brake caliper |
| Material | Aluminium alloy |
| Position | Front axle, Dia of wheel above 18'' |
| Application | Brake rotor disc 330X28,355x28,360x28,380x28 |
| Colour | Red, Black ,yellow |
| Guarantee | 12 months warranty |
How to choose the combination of front and rear brakes
1. Select according to hub size
J value and et value shall be considered at the same time. If the corresponding space of the hub is insufficient, it will interfere and cannot be installed. It is also forbidden to cut the caliper body / hub due to size problems, which is very dangerous.
2.Front wheel refitting idea
15 inch options: Street version 7600 and competitive version 9444
17 inch options: Street version 9200 / GT4 and competitive version 9440
18 inch optional: Street version 9040 9540 8530 / GT6 18Z AMG6 competitive version 9448 9660 9665 / GT4
Wheels over 19 inches can be selected: Street version 8520 8521 8522 / GT6 AMG6 GTS6 (referred to as 85 series, with different piston area of the same shape)
Street version 9560 9561 9562 (referred to as 95 Series, with different piston areas of the same shape)
3.Rear wheel modification idea (the front wheel shall be determined first, and then the corresponding ratio shall be made)
Front four pistons: 9200 8530 9540 rear two pistons: 5317
Front six pistons: 9040 / GT6 rear four pistons: 9202 / 7609 / GT4
Front six pistons: 8520 8521 8522 / GT6 AMG6 GTS6 rear four pistons: 8530 / 8540 / 8560 /GT4
Front six pistons: 9560 9561 9562 / GT6 AMG6 GTS6 rear four pistons: 9541 / 9542 / GT4
The collocation needs to follow the first six rear four front four rear two front big four rear small four (the car power needs to be distributed, and so does the braking force)
Why upgrade the brake hose
Most of the original vehicle brake tubing is made of rubber material,the long time will aging, expansion, especially after 2-3 years of use, in high frequency, continuous brake, the defect will be more and more obvious.
Product advantages: High temperature resistancet, it can withstand 200-280° high temperature for an ultra long time. At low temperature-60°,the soft praperty can still be maintained. Anti aging Use high quality anti-aging materials . Corrosion resistance Apply to all grade brake oll. High luprication ,Low friction coefficient and high brake oil flow rate. Cohesionless : It has small surface tension and does not absorb other Impurities
Brake hose is divided into front and rear wheels, please confirm before ordering
Please contact the seller to confirm the model before ordering
RFQ
Please provide:
1. What Car? What year?
2. Wheel hub size? For example, 18-inch 19-inch
3. Modified wheel hub or original wheel hub?
4.Can you give me the Chassis number or frame number(VIN number)?
The above information is used for accurate recommendation of products and accurate quotation
