P6 Outdoor Full Color LED Displays SMD Module 192X192mm 16bit
Outdoor SMD full color LED display led module P6 192X192mm
Function and Technology Character Introduction:
1,High-quality bottom shell kits and masks, using anti-deformation module bottom shell kits, with high hardness and strength, to ensure that the screen body is flat and not deformed.
2,High contrast can achieve a good display effect, using ultra-bright LEDs and high-quality plastic kits.
3, Strong protection performance, with waterproof, moisture-proof, dust-proof, anti-collision, anti-oil stain, anti-oxidation, anti-static properties, and has the characteristics of wear resistance and easy to clean.
4, High refresh chip, high refresh chip, refresh up to 3840Hz, constant output current, high refresh effect and no flicker when taking pictures, ensuring high-tech and delicate display pictures.
Products Applications:

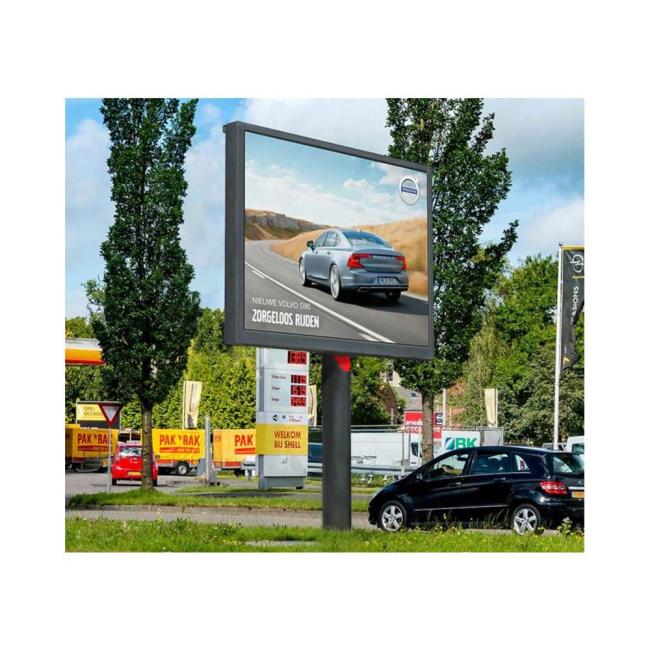

Widely used in churches, control command centers, video surveillance centers, high-definition information release, conference display systems and other commercial venues
SPECIFICATIONS Parameters:
| Pixel pitch (mm) | P6 |
| Module size(mm) | 192X192mm |
| Pixel density (point /㎡) | 27777 |
| Module resolution (WxH) | 32X32 |
| Pixel structure | SMD3535 |
| scanning method | 1/8 |
| Refresh rate (Hz) | ≥3840Hz |
| White balance brightness (nits) | ≥5000 |
| Color temperature (K) | 1500-12000Adjustable |
| Gray scale | 16bit |
| Frame change frequency | 60-120Hz |
| Viewing angle (horizontal/vertical°) | 160/160 |
| Protection level (front/back) | IP65/IP54 |
| Power consumption (peak/average W/㎡) | 1000/300 |
weiye color series led strip display screen advantage:
1,The viewing angle is wide, the visualization angle is up to 160°, the up and down, left and right viewing is barrier-free and non-reflective, the ink color of the mask is good, and the contrast is high.
2,Refresh performance is more stable, computer and mobile phone control dual support, WIFI networking, stable performance, no flicker, good display effect, ultra-wide viewing angle of 160°, high brightness and bright colors, attracting attention.
3, Strong protection performance, with waterproof, moisture-proof, dust-proof, anti-collision, anti-oil stain, anti-oxidation, anti-static properties, and has the characteristics of wear resistance and easy to clean.
4,Low brightness and high gray, high refresh rate, 16Bit grayscale, high contrast, high refresh rate, fine, smooth and high-fidelity picture
5,The weight is easy to install and disassemble, the LED is driven by a constant current method, the light is uniform, and the power consumption is low. Each pixel is composed of 1R1G1B.
