RGB P3.91 Rental LED Display Video Wall SMD Die Casting Aluminum Cabinet

Price Negotiable
Price: Negotiation
MOQ: 1 pcs / 1 sqm
Delivery Time: 7-12 working days after received your payment
Brand: Weiye
Product Description

LED Video Wall Full Color Die Casting Aluminum Cabinet SMD RGB P3.91 Indoor LED Display Rental

Function and Technology Character Introduction:

1,High-quality bottom shell kits and masks, using anti-deformation module bottom shell kits, high hardness and strength, to ensure that the screen body is flat and not deformed

2,Waterproof, moisture-proof, UV-proof, Low attenuation, high reliability

3,The color uniformity of the display screen is super high, and the screen picture is more delicate.

4,Energy-saving, environmentally friendly, cost-effective, the LED display luminescent material itself is an energy-saving product, equipped with a dedicated constant current drive, energy-saving IC and high conversion rate drive power, and the brightness can be automatically adjusted.

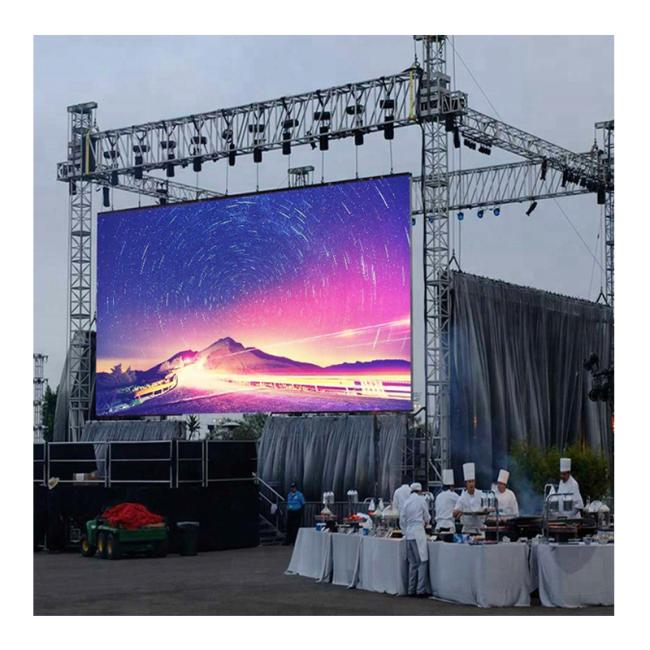

Products Applications:

widely used in large stadiums, train waiting rooms, live TV, exhibition venues, performing arts centers, entertainment venues, large-scale cultural evenings, concerts, etc.


SPECIFICATIONS Parameters:

Pixel pitch (mm) P3.91
Module size(mm) 250X250mm
Pixel density (point /㎡) 65536
Module resolution (WxH) 64X64
Pixel structure SMD2020
scanning method 1/16
Refresh rate (Hz) ≥3840Hz
White balance brightness (nits) ≥1200
Color temperature (K) 3200-9300Adjustable
Gray scale 14bit
Frame change frequency 60Hz
Viewing angle (horizontal/vertical°) 140/140
Protection level (front/back) IP31/IP43
Power consumption (peak/average W/㎡) 600/200


weiye D6 series led strip display screen  advantage:


1,The circuit board adopts wave soldering process and has a green oil oxygen barrier to prevent moisture and oxidation of the circuit and increase the service life.

2,Nice appearance and simple structures.

3,Humanized operating interface with breakdown indicator lights, easy to maintain.



4,Can be normally used under the temperature between -35℃ and +65℃ .



5,Use advanced processing technology, guarantee for high-quality and long lifetime products
