250X250mm Rental LED Display P2.604 Pixel 14bit Indoor LED Video Wall Cabinet
High Definition Led Video Display Rental P2.604 Pixel Indoor Led Light Display Cabinet Screen
Function and Technology Character Introduction:
1,Original Noise-Free Design and Low Power Consumption,The use of a high-quality aluminum alloy with a fanless thermal design solves the heating problem, reduces noise and power consumption, and minimizes panel weight for easy installation
2,IP rated at IP65/54, is suitable for indoor and outdoor applications and adaptable for fixed or rental installations.
3,The die-cast aluminum casing is created with high-precision machining, ensuring complete panel flatness.
4,Different Pixel Pitches but Same Panel Dimensions Create Innovative Visual Effects Pixel pitches
Products Applications:

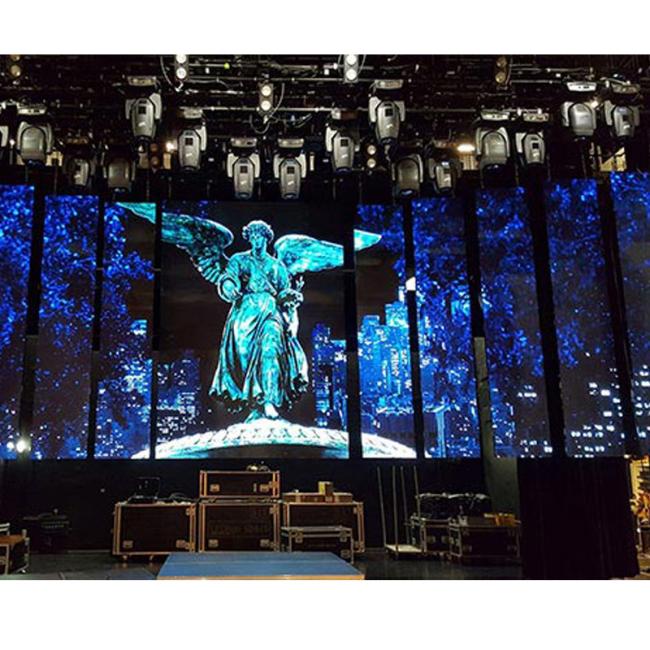

widely used in large stadiums, train waiting rooms, live TV, exhibition venues, performing arts centers, entertainment venues, large-scale cultural evenings, concerts, etc.
SPECIFICATIONS Parameters:
| Pixel pitch (mm) | P2.604 |
| Module size(mm) | 250X250mm |
| Pixel density (point /㎡) | 147456 |
| Module resolution (WxH) | 96X96 |
| Pixel structure | SMD1515 |
| scanning method | 1/24 |
| Refresh rate (Hz) | ≥3840Hz |
| White balance brightness (nits) | ≥1200 |
| Color temperature (K) | 3200-9300Adjustable |
| Gray scale | 14bit |
| Frame change frequency | 60Hz |
| Viewing angle (horizontal/vertical°) | 140/140 |
| Protection level (front/back) | IP31/IP43 |
| Power consumption (peak/average W/㎡) | 600/200 |
weiye D6 series led strip display screen advantage:
1,The products a seamless mosaic of different pixel pitches, providing a creative and innovative solution to meet all types of display needs.
2,Die-cast Aluminum Casing, Flat Panels and Special Connector Design Helps Create a Seamless Image Mosaic
3,uses black lights to enhance contrast grade. The application of soft masks ensures a greater flatness of the screen and a seamless patching between cabinets.
4,With a special connector design it is easy to reduce gaps while installing, creating a perfect display.
5,Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection. Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
