P2.604 Rental Stage Background LED Screen 3840Hz / Mobile LED Display Screen 250X250mm
P2.604 Indoor empty cabinet rental die-cast aluminum led display
Function and Technology Character Introduction:
1, Use TG (170 ℃) immersion golden S1000-2 substrate to ensure that no deformation of PCB board.
2, Nice appearance and simple structures.
3, Assembled with die-casting aluminum, slim, thickness only 65 mm, super lightweight 8 kg for unit cabinet of 500x500mm, fast lock, easy and quick to assemble and disassemble.
4, High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Products Applications:

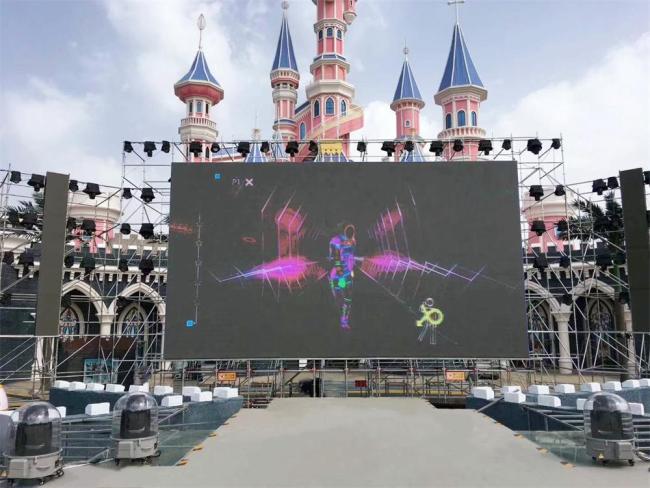

widely used in large stadiums, train waiting rooms, live TV, exhibition venues, performing arts centers, entertainment venues, large-scale cultural evenings, concerts, etc.
SPECIFICATIONS Parameters:
| Pixel pitch (mm) | P2.604 |
| Module size(mm) | 250X250mm |
| Pixel density (point /㎡) | 147456 |
| Module resolution (WxH) | 96X96 |
| Pixel structure | SMD1515 |
| scanning method | 1/24 |
| Refresh rate (Hz) | ≥3840Hz |
| White balance brightness (nits) | ≥1200 |
| Color temperature (K) | 3200-9300Adjustable |
| Gray scale | 14bit |
| Frame change frequency | 60Hz |
| Viewing angle (horizontal/vertical°) | 140/140 |
| Protection level (front/back) | IP31/IP43 |
| Power consumption (peak/average W/㎡) | 600/200 |
weiye D3 series led strip display screen advantage:
1, Use advanced processing technology, guarantee for high-quality and long lifetime products Self-cooling system, no need fan, noiseless
2, Jointed correctly, being installed & dismounted by one person without tool.
3, Nice appearance and simple structures.
4, Low budget, high pixel density, more vivid and stable pictures (No Flickering)
5, High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like USA, Oman, UAE, etc
