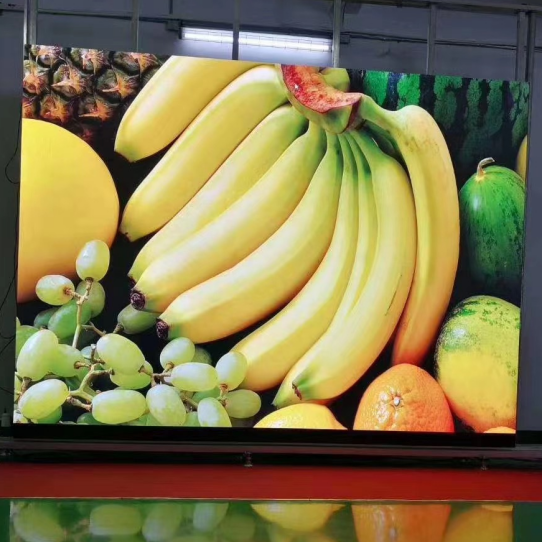

Indoor P6 Full Color LED Displays Screen 192x192mm 800NITS For Video Wall Conference
Indoor P6 LED full-color display module LED screen for video wall conference
Function and Technology Character Introduction:
1, Low brightness and high gray, high refresh rate, 16Bit grayscale, high contrast, high refresh rate, fine, smooth and high-fidelity picture
2, The module high-performance plastic fiber kit can effectively block moisture, dust and other substances from entering the inside of the LED display.
3, High-quality lamp beads are used to ensure the high brightness of the module and the fineness of the display screen.
4, The surface of the module is smooth, ultra-high-definition display, high-resolution brings a delicate display effect.
5. The module can support the maintenance and installation before the magnetic suction. The installation method is selected according to the on-site construction environment, and the disassembly is simple and quick.
Products Applications:
Widely used in churches, control command centers, video surveillance centers, high-definition information release, conference display systems and other commercial venues
SPECIFICATIONS Parameters:
| Pixel pitch (mm) | P6 |
| Module size(mm) | 192X192mm |
| Pixel density (point /㎡) | 40000 |
| Module resolution (WxH) | 32X32 |
| Pixel structure | SMD2121 |
| scanning method | 1/16 |
| Refresh rate (Hz) | ≥1920Hz |
| White balance brightness (nits) | ≥800 |
| Color temperature (K) | 1500-12000Adjustable |
| Gray scale | 16bit |
| Frame change frequency | 60-120Hz |
| Viewing angle (horizontal/vertical°) | 160/160 |
| Protection level (front/back) | IP31/IP45 |
| Power consumption (peak/average W/㎡) | 850/300 |
weiye color series led strip display screen advantage:
1, The flatness of the module mounting surface is required to be controlled within ±0.1mm.
2,Super anti-aging, after high temperature 60 degrees, low temperature negative 20 degrees white balance aging test, it still works normally.
3, The inside of the module is connected by a gold-plated process, which has good conduction performance; the lamp bead is reversed in polarity, and the brightness is higher
4, High refresh chip, high refresh chip, refresh up to 3840Hz, constant output current, high refresh effect, no flicker when taking pictures, to ensure that the display screen is high-tech and delicate.
5. High-brush chip, refreshing up to 3840Hz, constant output current, high-refresh effect and no flicker when taking pictures, ensuring high-definition and delicate display pictures
