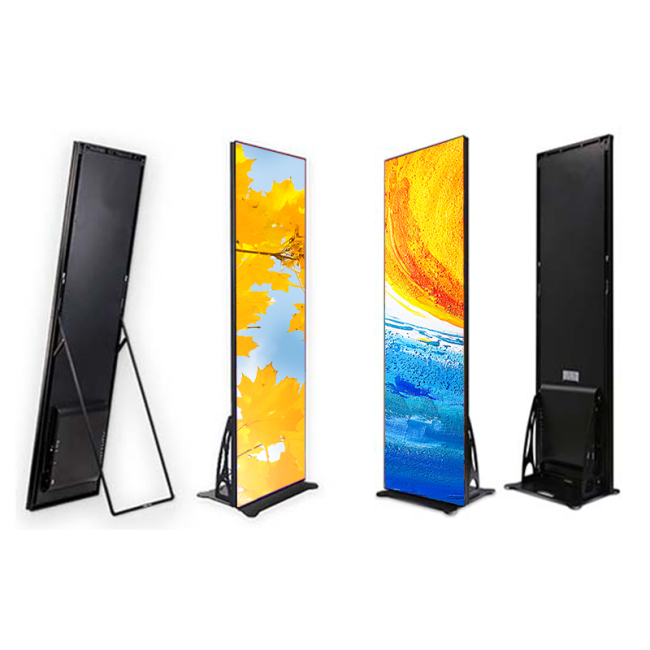

High Brightness P3.076 Special LED Display Screen Advertising machine

Function and Technology Character Introduction:

1. Full-color high-definition display, high definition, wide field of vision, bright colors, more delicate picture quality, making your ads more attractive.

2.Split-screen playback, seamless splicing, support for one-click split-screen playback, video, picture, and advertising information playback is more direct and convenient, and text display and playback are correct.

3. Plug-and-play U disk playback, videos, pictures, and music can be directly inserted and played through the U disk, which is fast and convenient.

4.Powerful program editing and task concurrency can meet the needs of various project engineering applications and different industries

Products Applications:

Widely used in shopping malls, catering industry, product launches, weddings, hotels, airports, luxury stores, chain stores, reception halls, mobile screens, real-time video, catering industry, reception halls, product launches, mobile screens, chain stores, etc.

SPECIFICATIONS Parameters:

Product parameter
led module
Pixel pitch (mm)	P3.076
Pixel density (point /㎡)	105625
Module size (mm)	320X160
Module resolution (WxH)	104X52
Package form	SMD2020
scanning method	1/52S
Refresh rate (Hz)	≥1920/3840(Optional)
White balance brightness (Nits)	＞800
Color temperature (K)	3200-9300(Adjustable )
Gray scale	≥14bit
Frame change frequency	60-120Hz
Viewing angle (horizontal/vertical)	160°/160°
Protection level (front/back)	IP31
Average/peak power consumption (W/㎡)	850/350
Face mask	NO
cabinet
cabinet size (mm)	640X1920
Screen weight (Kg)	15
cabinet module composition (WxH)	2X12
Cabinet resolution (WxH)	208X624
Flatness (mm)	≤0.2
Maintenance method	Pre-maintenance
cabinet material	Die-cast aluminum
Application Environment
Input voltage (V)	110-240
Operating temperature (℃)	-20~50
Working humidity (RH)	10%-95%
Service life (H)	≥100000
Model type (using video processor)	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Control distance	Category 5 network cable :＜100m,Single mode fiber :＜10km
certified product

Weiye poster series led strip display screen advantage:

1. Convenient management, cluster management, supports multi-level grouping of terminals and users, and supports multi-level permissions settings for users

2.Convenient management, cluster management, supports multi-level grouping of terminals and users, and supports multi-level permissions settings for users

3.Easy to expand, modular design, easy for software function expansion; hardware supports distributed deployment, expansion server can be set up when the server is under load, expansion server can support 2000 terminal connections online at the same time, support system background upgrade
