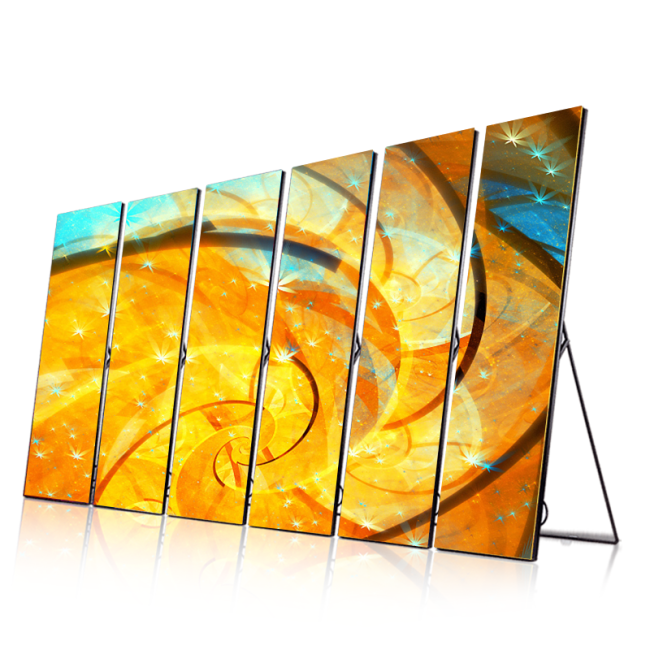

Moveable Indoor P1.53 High Brightness Digital LED Advertising LED Poster Display Screen

Function and Technology Character Introduction:

1. This indoor movable adverts led poster widely use for shops, hotel, wedding, meeting guidence, new product presentation, autocar 4S shop, high-end cloth chain shops, metro station, airport, etc. This led poster is also called mirror led display.

2. LED poster design based on flexible advers machine conception, so you can horizontally / vertically hang it on the wall or make it as floor standing.No need extra harware except for our professionl hanging pendant.

3. Resist of the high temperature and antioxidation and anti-statiic;

4. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.

Products Applications:

Widely used in shopping malls, catering industry, product launches, weddings, hotels, airports, luxury stores, chain stores, reception halls, mobile screens, real-time video, catering industry, reception halls, product launches, mobile screens, chain stores, etc.

SPECIFICATIONS Parameters:

Product parameter
led module
Pixel pitch (mm)	P1.53
Pixel density (point /㎡)	422500
Module size (mm)
Module resolution (WxH)	208X104
Package form	SMD1212
scanning method	1/26S
Refresh rate (Hz)	≥1920/3840(Optional)
White balance brightness (Nits)	＞800
Color temperature (K)	3200-9300(Adjustable )
Gray scale	≥14bit
Frame change frequency	60-120Hz
Viewing angle (horizontal/vertical)	160°/160°
Protection level (front/back)	IP31
Average/peak power consumption (W/㎡)	850/350
Face mask	NO
cabinet
cabinet size (mm)	640X1920
Screen weight (Kg)	15
cabinet module composition (WxH)	2X12
Cabinet resolution (WxH)	416X1248
Flatness (mm)	≤0.2
Maintenance method	Pre-maintenance
cabinet material	Die-cast aluminum
Application Environment
Input voltage (V)	110-240
Operating temperature (℃)	-20~50
Working humidity (RH)	10%-95%
Service life (H)	≥100000
Model type (using video processor)	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Control distance	Category 5 network cable :＜100m,Single mode fiber :＜10km
certified product

Weiye poster series led strip display screen advantage:

1. Long using life & MTBF  synchronous and asynchronous control system a.One machine control mode b.Multi-motor synchronous control mode.

2. In synchronous mode, you can connect the screens by the HDMI cable, by connecting six units of screens you can display a complete picture.

3. Support cluster play and management, agree that the cluster mirror screen can agree to design and update programs, saving time and effort.

4. The cabinet structure is designed with a modular frame and a metal body for easy installation, disassembly and maintenance.

5. The exterior of the cabinet is equipped with an acrylic plate to protect the screen body.
